CM200C32768AZFT-32.768KHz-12.5pf-8038mm,日本CITIZEN晶振,CM200C32768AZFT晶振,32.768KHz晶振,負載12.5pf,8038mm晶振,進口貼片晶振,耐高溫晶振,石英晶體諧振器,便攜式設備晶振,通信設備晶振,時鐘鐘表晶振,數字電表晶振,家用電器晶振.
CM200C32768AZFT-32.768KHz-12.5pf-8038mm 參數
| 項目 | 符號 | CM200C |
| 頻率 | f0 | 32.768KHz |
| 頻率公差 | △f/f0 | ±20ppm |
| 負載電容 | CL | 12.5pf |
| 工作溫度 | TOPR | －40℃～＋85℃ |
| 保存溫度 | TSTR | －55℃～＋125℃ |
| 點溫度 | TM | 25℃±5℃ |
| 溫度系數 | β | -0.034±0.006ppm/℃ 2 |
| 串聯阻力 | R1 | 50KΩ Max. |
| 驅動級別 | DL | 1μW Max |
| 老化（第一年） | △f/f0 | ±3ppm Max. |
| 并聯電容 | C0 | 1.35pF Typ. |

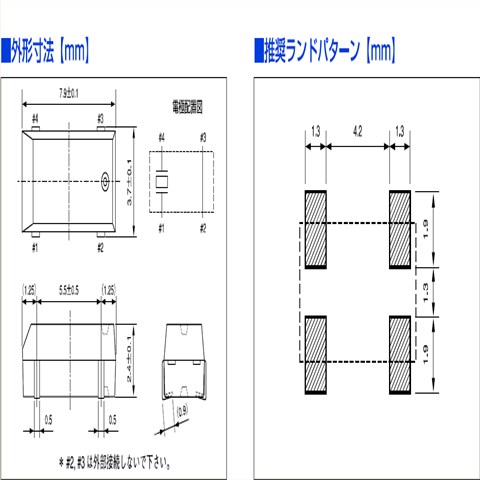

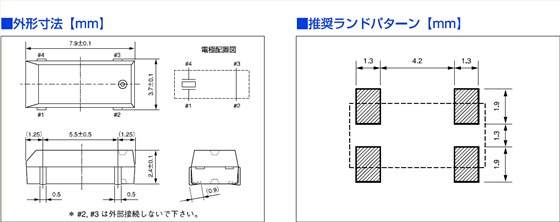

CM200C32768AZFT-32.768KHz-12.5pf-8038mm尺寸圖
| 原廠編碼 | 生產廠家 | 型號 | 頻率 | 頻率偏差 | 負載電容 | 電阻 | 工作溫度 |
| CM200C32768AZFT | Citizen 晶振 | CM200C | 32.768kHz | ±30ppm | 12.5pF | 50 kOhm | -40°C ~ 85°C |
| CM200C32768AZFT | Citizen 晶振 | CM200C | 32.768kHz | ±30ppm | 12.5pF | 50 kOhm | -40°C ~ 85°C |
| CM200C32768AZFT | Citizen 晶振 | CM200C | 32.768kHz | ±30ppm | 12.5pF | 50 kOhm | -40°C ~ 85°C |
| CM200C32768DZFT | Citizen 晶振 | CM200C | 32.768kHz | ±20ppm | 12.5pF | 50 kOhm | -40°C ~ 85°C |
| CM200C32768DZFT | Citizen 晶振 | CM200C | 32.768kHz | ±20ppm | 12.5pF | 50 kOhm | -40°C ~ 85°C |
| CM200C32768DZFT | Citizen 晶振 | CM200C | 32.768kHz | ±20ppm | 12.5pF | 50 kOhm | -40°C ~ 85°C |
| CM200C32768EZFT | Citizen 晶振 | CM200C | 32.768kHz | ±10ppm | 12.5pF | 50 kOhm | -40°C ~ 85°C |
| CM200C32768EZFT | Citizen 晶振 | CM200C | 32.768kHz | ±10ppm | 12.5pF | 50 kOhm | -40°C ~ 85°C |
| CM200C32768EZFT | Citizen 晶振 | CM200C | 32.768kHz | ±10ppm | 12.5pF | 50 kOhm | -40°C ~ 85°C |
| CM200C32768DZBT | Citizen 晶振 | CM200C | 32.768kHz | ±20ppm | 6pF | 50 kOhm | -40°C ~ 85°C |
| CM200C32768DZBT | Citizen 晶振 | CM200C | 32.768kHz | ±20ppm | 6pF | 50 kOhm | -40°C ~ 85°C |
| CM200C32768DZBT | Citizen 晶振 | CM200C | 32.768kHz | ±20ppm | 6pF | 50 kOhm | -40°C ~ 85°C |
| CM200C32768DZCT | Citizen 晶振 | CM200C | 32.768kHz | ±20ppm | 9pF | 50 kOhm | -40°C ~ 85°C |
| CM200C32768DZCT | Citizen 晶振 | CM200C | 32.768kHz | ±20ppm | 9pF | 50 kOhm | -40°C ~ 85°C |
| CM200C32768DZCT | Citizen 晶振 | CM200C | 32.768kHz | ±20ppm | 9pF | 50 kOhm | -40°C ~ 85°C |
| CM200C32768DZYT | Citizen 晶振 | CM200C | 32.768kHz | ±20ppm | 7pF | 50 kOhm | -40°C ~ 85°C |
| CM200C32768DZYT | Citizen 晶振 | CM200C | 32.768kHz | ±20ppm | 7pF | 50 kOhm | -40°C ~ 85°C |
| CM200C32768DZYT | Citizen 晶振 | CM200C | 32.768kHz | ±20ppm | 7pF | 50 kOhm | -40°C ~ 85°C |
| CM200C32768HZFT | Citizen 晶振 | CM200C | 32.768kHz | ±5ppm | 12.5pF | 50 kOhm | -40°C ~ 85°C |
| CM200C32768HZFT | Citizen 晶振 | CM200C | 32.768kHz | ±5ppm | 12.5pF | 50 kOhm | -40°C ~ 85°C |
| CM200C32768HZFT | Citizen 晶振 | CM200C | 32.768kHz | ±5ppm | 12.5pF | 50 kOhm | -40°C ~ 85°C |
| CM200C32768AZBT | Citizen 晶振 | CM200C | 32.768kHz | ±30ppm | 6pF | 50 kOhm | -40°C ~ 85°C |
| CM200C32768EZBT | Citizen 晶振 | CM200C | 32.768kHz | ±10ppm | 6pF | 50 kOhm | -40°C ~ 85°C |
