NSC5082A石英振蕩器-日本NDK晶振HCSL-汽車導航系統專用晶振,日本NDK晶振,進口有源晶振,NP3225SC差分晶振,NSC5082A石英振蕩器,HCSL輸出晶振,汽車導航系統專用晶振,頻率156.25MHz,工作溫度-40~85°C,電壓2.5V,頻率穩定性50ppm,無鉛環保晶振,計算機晶振,GPS 晶振,娛樂設備晶振,車載音響晶振,車載電腦晶振.
NSC5082A石英振蕩器-日本NDK晶振HCSL-汽車導航系統專用晶振特點：
●輸出規格:HCSL
●緊湊尺寸:3.2 × 2.5 × 0.9 mm
NSC5082A石英振蕩器-日本NDK晶振HCSL-汽車導航系統專用晶振 參數表
| 項目 | 符號 | 數值 | 注意 | ||
| 頻率 | fnom | 156.25MHz | |||
| 電壓 | VCC | +2.5 V | |||
| 電壓消耗運行 | ICC | 50mA max | at 25 °C | ||
| 輸出水平 | - | HCSL | |||
| 負載 | RL | 50Ω | Out-Complementary Out | ||
| 工作溫度 | Topr | -40°C to +85°C | |||
| 頻率公差 | Δf/fnom | ±50ppm | *1 | ||
| 差分輸出電壓 | VOL |
±150mV
|
|
||
| VOH |
+580mV min +850mV max |
||||
| 上升下降時間 | tr/tf | 0.5ns max | 0.175 to 0.525 V | ||
| 對稱 | SYM | 45%min -55%max | at 50 % Waveform | ||
| 啟動時間 | tsu | 10ms max | |||
| 相位抖動 | tpj | 1ps | *2 | ||
| 輸出波形 | - | Square wave | |||
| 儲存溫度 | T_stg | -55°Cto+125°C | |||

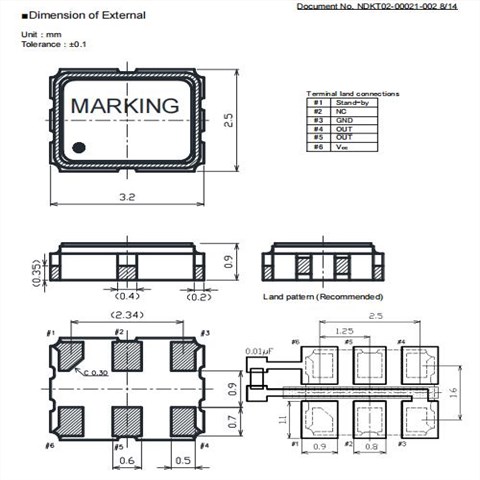

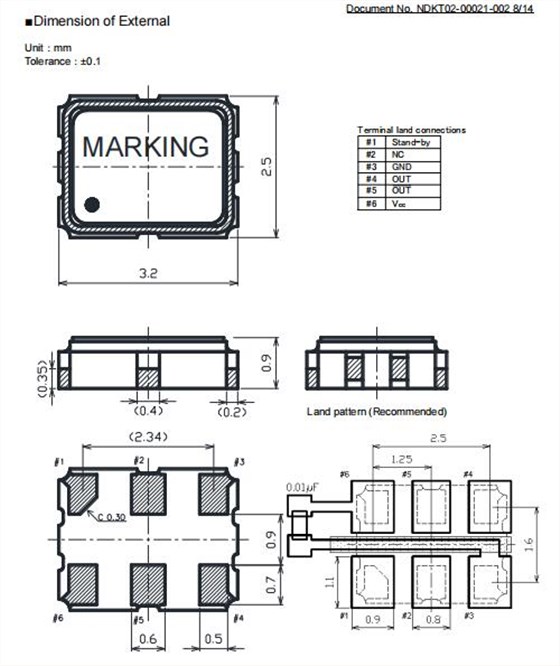

NSC5082A石英振蕩器-日本NDK晶振HCSL-汽車導航系統專用晶振尺寸圖
| 型號 | 頻率[MHz] | 規格編號 | 尺寸(LxW)[mm] | 輸出方式 | 工作溫度[℃] | 保存溫度[℃] | 電源電壓[V] |
| NP3225SC | 100MHZ | NSC5082A | 3.2x2.5 | HCSL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SC | 156.25MHZ | NSC5082A | 3.2x2.5 | HCSL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SC | 100MHZ | NSC5345B | 3.2x2.5 | HCSL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SC | 156.25MHZ | NSC5345B | 3.2x2.5 | HCSL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SC | 100MHZ | NSC5191A | 3.2x2.5 | HCSL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SC | 156.25MHZ | NSC5191A | 3.2x2.5 | HCSL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SC | 100MHZ | NSC5346B | 3.2x2.5 | HCSL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SC | 156.25MHZ | NSC5346B | 3.2x2.5 | HCSL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SBB | 100MHZ | NSC5187A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SBB | 125MHZ | NSC5187A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SBB | 156.25MHZ | NSC5187A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SBB | 100MHZ | NSC5187B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SBB | 125MHZ | NSC5187B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SBB | 156.25MHZ | NSC5187B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SAD | 100MHZ | NSC5347B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SAD | 156.25MHZ | NSC5347B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SBD | 100MHZ | NSC5348B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SBD | 156.25MHZ | NSC5348B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SCD | 100MHZ | NSC5349B | 3.2x2.5 | HCSL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SCD | 156.25MHZ | NSC5349B | 3.2x2.5 | HCSL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SBA | 100MHZ | NSC5391A | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +2.5 ± 0.125 |
| NP3225SBA | 156.25MHZ | NSC5391A | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +2.5 ± 0.125 |
| NP3225SBA | 100MHZ | NSC5391B | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +3.3 ± 0.33 |
| NP3225SBA | 125MHZ | NSC5391B | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +3.3 ± 0.33 |
| NP3225SBA | 156.25MHZ | NSC5391B | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +3.3 ± 0.33 |
| NP3225SCA | 100MHZ | NSC5392B | 3.2x2.5 | HCSL | -40~+105 | -55~+125 | +3.3 ± 0.33 |
| NP3225SCA | 125MHZ | NSC5392B | 3.2x2.5 | HCSL | -40~+105 | -55~+125 | +3.3 ± 0.33 |
| NP3225SCA | 156.25MHZ | NSC5392B | 3.2x2.5 | HCSL | -40~+105 | -55~+125 | +3.3 ± 0.33 |
