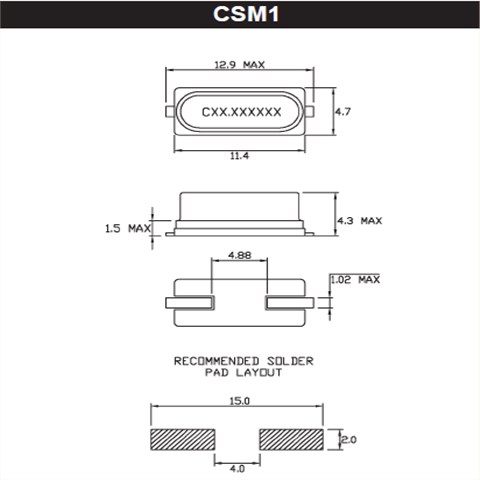

CSM1Z-A5B2C5-50-20.0D18,Cardinal橢圓形晶振,機頂盒應用晶振，美國進口晶振，Cardinal晶振，卡迪納爾晶振，型號：CSM1系列，編碼為：CSM1Z-A5B2C5-50-20.0D18，頻率：20MHz，頻率穩定性：±50ppm，工作溫度范圍：-20℃至+70℃，負載電容：18pF，頻率容差：±20ppm，是一款小體積晶振尺寸：12.5x4.5mm橢圓形金屬外殼封裝，低輪廓表面安裝晶體，兩腳貼片晶振，石英晶振，石英晶體諧振器，無源晶振，無鉛環保晶振，SMD晶體。被廣泛用于：通訊設備晶振，無線晶振，藍牙模塊晶振，無線局域網晶振，MPU，微控制器，機頂盒等應用.
CSM1Z-A5B2C5-50-20.0D18,Cardinal橢圓形晶振,機頂盒應用晶振，產品特點：
•薄型表面貼裝水晶
•封裝是自動表面安裝組件和回流焊實踐的理想選擇
•CSM1-4.6mm；CSM4-3.5mm；CSM5-3.0mm高
•AT切割水晶貼片晶振
•頻率范圍：3.579545MHz至80MHz
CSM1Z-A5B2C5-50-20.0D18,Cardinal橢圓形晶振,機頂盒應用晶振,參數表
Parameter
Min
Typ
Max
Unit
Condition(Consult factory for other options)
Frequency Range
20
MHz
Calibration Frequency Tolerance
±10
-
±100
ppm
at +25°C ± 3°C,see part number guide below for available options
Frequency Stability
±10
-
±100
ppm
see part number guide below for available options
Operating Temperature Range
-40
-
+85
°C
see part number guide below for available options
Storage Temperature Range
-55
-
+125
°C
Equivalent Series Resistance
(ESR)
-
-
140
120
80
45
40
35
30
25
25
80
80
Ω
Freq < 4 MHz
4 MHz ≤ Freq < 5 MHz
5 MHz ≤ Freq ≤ 7 MHz
7 MHz < Freq ≤ 9 MHz
9 MHz ≤ Freq < 13 MHz
13 MHz ≤ Freq < 16 MHz
16 MHz ≤ Freq < 20 MHz
20 MHz ≤ Freq < 30 MHz
30 MHz ≤ Freq ≤ 36MHz
30 MHz ≤ Freq ≤ 36MHz(3rd Overtone)
36 MHz ≤ Freq ≤ 80MHz(3rd Overtone)
Drive Level
-
0.1
1.0
mW
Shunt Capacitance (C0)
-
-
7.0
pF
Pad to Pad Capacitance
Aging at 25°C ± 3°C
-
-
±5
ppm
for the first year
