ELM3-36.000MHz-18-R40-D4H-T,AEL石英晶體諧振器,5032mm,ELM3-36.000MHz-18-R40-D4H-T晶振,AEL石英晶體諧振器,5032mm晶振,ELM3無源晶振,兩腳貼片晶振,頻率36MHz,負載18pf,無線路由器晶振,攝像頭晶振,儲存卡晶振,電子體重秤晶振.

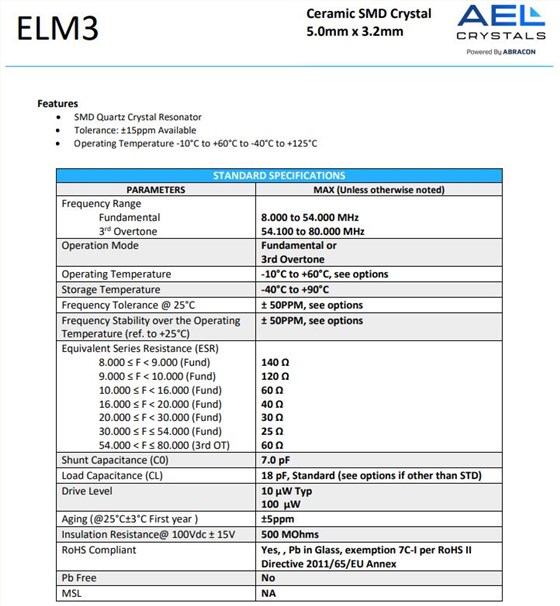

ELM3-36.000MHz-18-R40-D4H-T,AEL石英晶體諧振器,5032mm 參數表
| 規格參數 | MAX(除非有特殊說明) | |||||||
| 頻率 | 36MHz | |||||||
| 操作方式 | Fundamental | |||||||
| 工作溫度 | -40Cto+85°C | |||||||
| 保存溫度 | -40°Cto+90°C | |||||||
| 頻率公差 @ 25°C | ±30PPM | |||||||
| 頻率穩定性(ref. to +25°C) |
±50PPM |
|||||||
| 等效串聯電阻(ESR) | 25 Ω | |||||||
| 并聯電容(C0) | 7pF | |||||||
| 負載電容 (CL) | 18pF | |||||||
| 激勵功率 |
10μWTyp 100μW |
|||||||
| 老化性(@25°C±3°C First year) | ±5ppm | |||||||
| 絕緣電阻@ 100Vdc ± 15V | 500MOhms | |||||||
| 通過無鉛認證 | Yes | |||||||
| 無鉛 | N0 | |||||||
| MSL | NA | |||||||

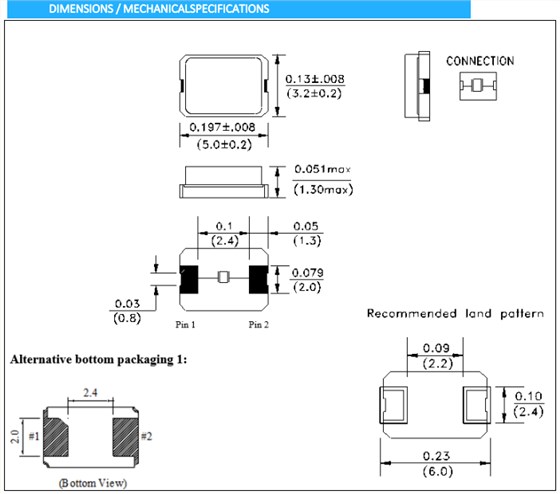

ELM3-36.000MHz-18-R40-D4H-T,AEL石英晶體諧振器,5032mm 尺寸圖
| AEL原廠編碼 | 品牌 | 型號 | 工作溫度 | 頻率 | 頻率穩定度 | 頻率公差 | 負載 |
| ELM3-26.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 26 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-27.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 27 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-28.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 28 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-29.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 29 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-30.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 30 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-31.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 31 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-32.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 32 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-33.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 33 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-34.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 34 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-35.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 35 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-36.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 36 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-37.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 37 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-38.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 38 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-39.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 39 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-40.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 40 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-25.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 25 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-12.000MHz-30-R80-D4Y-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 12 MHz | ±30ppm | ±30ppm | 30 pF |
| ELM3-14.000MHz-30-R80-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 14 MHz | ±50ppm | ±50ppm | 30 pF |
| ELM3-24.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | -40°C ~ 85°C | 24 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-8.057MHz-18-R100-B4Y-T | AEL晶振 | ELM3 | -20°C ~ 70°C | 8.057 MHz | ±30ppm | ±30ppm | 18 pF |
