CPPC4LTA7BR48.0TS,6G常用晶振,卡迪納爾石英鐘振
頻率：48MHz
尺寸：13.2 x 13.2 x 5.6mm
CPPC4LTA7BR48.0TS,6G常用晶振,卡迪納爾石英鐘振,卡迪納爾石英鐘振,CPP-4進口晶振,CPPC4LTA7BR48.0TS晶振,石英振蕩器,CMOS輸出晶振,頻率48MHz,電壓3.3V,工作溫度-40~85°C,尺寸13.2 x 13.2 x 5.6mm ,頻率穩定性25ppm,耐高溫晶振,6G常用晶振,驅動A/D, D/A, fpga晶振,數字視頻晶振,以太網晶振,寬帶接入晶振,存儲區域組網晶振,COTS晶振,SONET/ SDH/ DWDM晶振.
訂購熱線：0755-27837162
CPPC4LTA7BR48.0TS,6G常用晶振,卡迪納爾石英鐘振,卡迪納爾石英鐘振,CPP-4進口晶體,CPPC4LTA7BR48.0TS晶振,石英振蕩器,CMOS輸出晶振,頻率48MHz,電壓3.3V,工作溫度-40~85°C,尺寸13.2 x 13.2 x 5.6mm ,頻率穩定性25ppm,耐高溫晶振,6G常用晶振,驅動A/D, D/A, fpga晶振,數字視頻晶振,以太網晶振,寬帶接入晶振,存儲區域組網晶振,COTS晶振,SONET/ SDH/ DWDM晶振.
CPPC4LTA7BR48.0TS,6G常用晶振,卡迪納爾石英鐘振特點：
•CMOS輸出(將與TTL設備接口)
•開啟/關閉功能(可選待機功能)
•3.3V或5.0V標稱電源電壓
•半DIP封裝

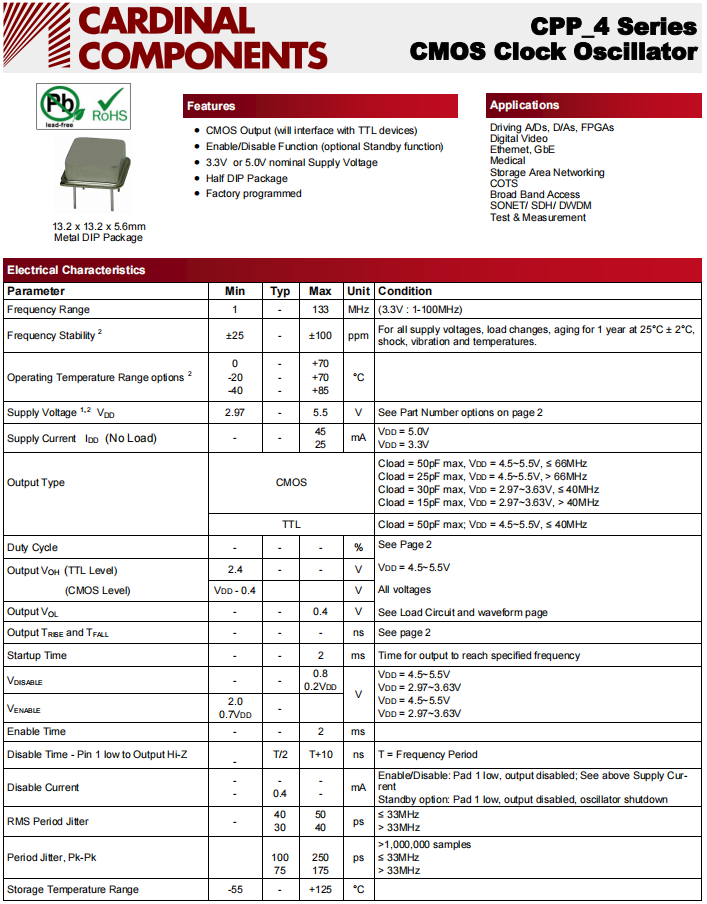

CPPC4LTA7BR48.0TS,6G常用晶振,卡迪納爾石英鐘振 參數
| 項目 | 參數 | 條件 |
| 頻率 | 48MHz | (3.3V : 1-100MHz) |
| 頻率穩定性 | ±25ppm |
包括電源電壓變化，負載變化，25°C老化1年 |
| 電源電壓 | 3.3V |
|
| 電源電流 | 25mA max | VDD=3.3V |
| 工作溫度 |
－40℃～＋85℃ |
|
| 保存溫度 | －55℃～＋125℃ |
|
| 輸出方式 | CMOS | Cload = 15pF max, VDD = 2.97~3.63V, > 40MHz |
| 啟動時間 | 2ms max | 輸出達到指定頻率的時間 |
| RMS周期抖動 |
30ps min 40ps max |
> 33MHz |
| 周期抖動Pk-Pk |
75ps min 175ps max |
> 33MHz |

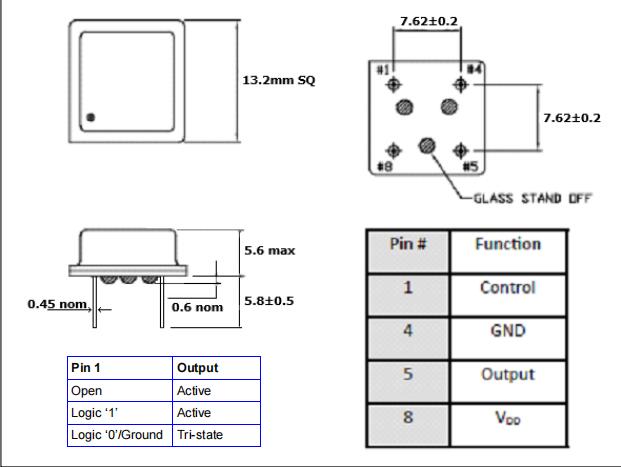

CPPC4LTA7BR48.0TS,6G常用晶振,卡迪納爾石英鐘振尺寸圖
| 原廠編碼 | 生產廠家 | 型號 | 頻率 | 頻率穩定度 | 工作溫度 | 電流 |
| CJAE7L-A7BR-75.49472TS | Cardinal晶振 | CJAE | 75.49472MHz | ±25ppm | -40°C ~ 85°C | 54mA |
| CPPT4T-A7BP-00.8000TS | Cardinal晶振 | CPP | 800kHz | ±50ppm | -40°C ~ 85°C | 45mA |
| CFE4-A7BP-155.52 | Cardinal晶振 | CFE4 | 155.52MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFE4-A7BP-156.25 | Cardinal晶振 | CFE4 | 156.25MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFE4-A7BP-212.5 | Cardinal晶振 | CFE4 | 212.5MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFE4-A7BP-311.04 | Cardinal晶振 | CFE4 | 311.04MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFE4-A7BP-622.08 | Cardinal晶振 | CFE4 | 622.08MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFL4-A7BP-155.52 | Cardinal晶振 | CFL4 | 155.52MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFL4-A7BP-156.25 | Cardinal晶振 | CFL4 | 156.25MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFL4-A7BP-212.5 | Cardinal晶振 | CFL4 | 212.5MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFL4-A7BP-311.04 | Cardinal晶振 | CFL4 | 311.04MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFL4-A7BP-622.08 | Cardinal晶振 | CFL4 | 622.08MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFED-A7BP-155.52TS | Cardinal晶振 | CFED | 155.52MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFED-A7BP-156.25TS | Cardinal晶振 | CFED | 156.25MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFED-A7BP-212.5TS | Cardinal晶振 | CFED | 212.5MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFED-A7BP-311.04TS | Cardinal晶振 | CFED | 311.04MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFED-A7BP-622.08TS | Cardinal晶振 | CFED | 622.08MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFL-A7BP-155.52TS | Cardinal晶振 | CFL | 155.52MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFL-A7BP-156.25TS | Cardinal晶振 | CFL | 156.25MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFL-A7BP-212.5TS | Cardinal晶振 | CFL | 212.5MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFL-A7BP-311.04TS | Cardinal晶振 | CFL | 311.04MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFL-A7BP-622.08TS | Cardinal晶振 | CFL | 622.08MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFVE-A7BP-155.52TS | Cardinal晶振 | CFVE | 155.52MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFVE-A7BP-156.25TS | Cardinal晶振 | CFVE | 156.25MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFVE-A7BP-212.5TS | Cardinal晶振 | CFVE | 212.5MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFVE-A7BP-311.04TS | Cardinal晶振 | CFVE | 311.04MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFVE-A7BP-622.08TS | Cardinal晶振 | CFVE | 622.08MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFVED-A7BP-155.52TS | Cardinal晶振 | CFVED | 155.52MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFVED-A7BP-156.25TS | Cardinal晶振 | CFVED | 156.25MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFVED-A7BP-212.5TS | Cardinal晶振 | CFVED | 212.5MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFVED-A7BP-311.04TS | Cardinal晶振 | CFVED | 311.04MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFVED-A7BP-622.08TS | Cardinal晶振 | CFVED | 622.08MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFVL-A7BP-155.52TS | Cardinal晶振 | CFVL | 155.52MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFVL-A7BP-156.25TS | Cardinal晶振 | CFVL | 156.25MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFVL-A7BP-212.5TS | Cardinal晶振 | CFVL | 212.5MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFVL-A7BP-311.04TS | Cardinal晶振 | CFVL | 311.04MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CFVL-A7BP-622.08TS | Cardinal晶振 | CFVL | 622.08MHz | ±50ppm | -40°C ~ 85°C | 100mA |
| CTED-A5B3-155.52TS | Cardinal晶振 | CTED | 155.52MHz | ±2.5ppm | -20°C ~ 70°C | 100mA |
| CTED-A5B3-156.25TS | Cardinal晶振 | CTED | 156.25MHz | ±2.5ppm | -20°C ~ 70°C | 100mA |
| CTED-A5B3-212.5TS | Cardinal晶振 | CTED | 212.5MHz | ±2.5ppm | -20°C ~ 70°C | 100mA |
| CTED-A5B3-311.04TS | Cardinal晶振 | CTED | 311.04MHz | ±2.5ppm | -20°C ~ 70°C | 100mA |
| CTED-A5B3-622.08TS | Cardinal晶振 | CTED | 622.08MHz | ±2.5ppm | -20°C ~ 70°C | 100mA |
| CTL-A5B3-155.52TS | Cardinal晶振 | CTL | 155.52MHz | ±2.5ppm | -20°C ~ 70°C | 100mA |
| CTL-A5B3-156.25TS | Cardinal晶振 | CTL | 156.25MHz | ±2.5ppm | -20°C ~ 70°C | 100mA |
| CTL-A5B3-212.5TS | Cardinal晶振 | CTL | 212.5MHz | ±2.5ppm | -20°C ~ 70°C | 100mA |
| CTL-A5B3-311.04TS | Cardinal晶振 | CTL | 311.04MHz | ±2.5ppm | -20°C ~ 70°C | 100mA |
| CTL-A5B3-622.08TS | Cardinal晶振 | CTL | 622.08MHz | ±2.5ppm | -20°C ~ 70°C | 100mA |
| CTVED-A5B3-155.52TS | Cardinal晶振 | CTVED | 155.52MHz | ±2.5ppm | -20°C ~ 70°C | 100mA |
| CTVED-A5B3-156.25TS | Cardinal晶振 | CTVED | 156.25MHz | ±2.5ppm | -20°C ~ 70°C | 100mA |
| CTVED-A5B3-212.5TS | Cardinal晶振 | CTVED | 212.5MHz | ±2.5ppm | -20°C ~ 70°C | 100mA |
| CTVED-A5B3-311.04TS | Cardinal晶振 | CTVED | 311.04MHz | ±2.5ppm | -20°C ~ 70°C | 100mA |
| CTVED-A5B3-622.08TS | Cardinal晶振 | CTVED | 622.08MHz | ±2.5ppm | -20°C ~ 70°C | 100mA |
| CTVL-A5B3-155.52TS | Cardinal晶振 | CTVL | 155.52MHz | ±2.5ppm | -20°C ~ 70°C | 100mA |
| CTVL-A5B3-156.25TS | Cardinal晶振 | CTVL | 156.25MHz | ±2.5ppm | -20°C ~ 70°C | 100mA |
| CTVL-A5B3-212.5TS | Cardinal晶振 | CTVL | 212.5MHz | ±2.5ppm | -20°C ~ 70°C | 100mA |
| CTVL-A5B3-311.04TS | Cardinal晶振 | CTVL | 311.04MHz | ±2.5ppm | -20°C ~ 70°C | 100mA |
| CTVL-A5B3-622.08TS | Cardinal晶振 | CTVL | 622.08MHz | ±2.5ppm | -20°C ~ 70°C | 100mA |
| CPPE7-A7BR-118.75 | Cardinal晶振 | CPPE7 | 118.75MHz | ±25ppm | -40°C ~ 85°C | 100mA |
| CPPE7-A7BR-25.0 | Cardinal晶振 | CPPE7 | 25MHz | ±25ppm | -40°C ~ 85°C | 100mA |
| CPPE7-A7BR-120.0 | Cardinal晶振 | CPPE7 | 120MHz | ±25ppm | -40°C ~ 85°C | 100mA |
| CPPE7-A7BR-121.25 | Cardinal晶振 | CPPE7 | 121.25MHz | ±25ppm | -40°C ~ 85°C | 100mA |
| CPPE7-A7BR-122.50 | Cardinal晶振 | CPPE7 | 122.5MHz | ±25ppm | -40°C ~ 85°C | 100mA |
| CPPE7-A7BR-131.25 | Cardinal晶振 | CPPE7 | 131.25MHz | ±25ppm | -40°C ~ 85°C | 100mA |
| CPPE7-A7BR-148.4375 | Cardinal晶振 | CPPE7 | 148.4375MHz | ±25ppm | -40°C ~ 85°C | 100mA |
| CPPE7-A7BR-164.0625 | Cardinal晶振 | CPPE7 | 164.0625MHz | ±25ppm | -40°C ~ 85°C | 100mA |
| CPPE7-A7BR-30.0 | Cardinal晶振 | CPPE7 | 30MHz | ±25ppm | -40°C ~ 85°C | 100mA |
| CPPV7-A5BP-135.0 | Cardinal晶振 | CPPV7 | 135MHz | ±50ppm | -20°C ~ 70°C | 50mA |
| CPPV7-A5BR-14.75 | Cardinal晶振 | CPPV7 | 14.75MHz | ±25ppm | -20°C ~ 70°C | 50mA |
| CPPV7-A7BP-159.375 | Cardinal晶振 | CPPV7 | 159.375MHz | ±50ppm | -40°C ~ 85°C | 50mA |
| CPPV7-A7BP-200.0 | Cardinal晶振 | CPPV7 | 200MHz | ±50ppm | -40°C ~ 85°C | 50mA |
| CPPV7-A7BR-122.88 | Cardinal晶振 | CPPV7 | 122.88MHz | ±25ppm | -40°C ~ 85°C | 50mA |
| CPPV7-A7BR-50.0TS | Cardinal晶振 | CPPV7 | 50MHz | ±25ppm | -40°C ~ 85°C | 50mA |
| CPPV7-BR-100.0 | Cardinal晶振 | CPPV7 | 100MHz | ±25ppm | 0°C ~ 70°C | 50mA |
| CPPV7-BR-105.0 | Cardinal晶振 | CPPV7 | 105MHz | ±25ppm | 0°C ~ 70°C | 50mA |
| CPPV7-BR-125.0 | Cardinal晶振 | CPPV7 | 125MHz | ±25ppm | 0°C ~ 70°C | 50mA |
| CPPV7-BR-133.333 | Cardinal晶振 | CPPV7 | 133.333MHz | ±25ppm | 0°C ~ 70°C | 50mA |
| CPPV7-BR-20.0 | Cardinal晶振 | CPPV7 | 20MHz | ±25ppm | 0°C ~ 70°C | 50mA |
| CPPV7-BR-40.000 | Cardinal晶振 | CPPV7 | 40MHz | ±25ppm | 0°C ~ 70°C | 50mA |
| CPPV7-BR-80.0 | Cardinal晶振 | CPPV7 | 80MHz | ±25ppm | 0°C ~ 70°C | 50mA |
| CPPV7Z-A7BR-200.0 | Cardinal晶振 | CPPV7 | 200MHz | ±25ppm | -40°C ~ 85°C | 50mA |
| CPPV7-A5BP-80.0 | Cardinal晶振 | CPPV7 | 80MHz | ±50ppm | -20°C ~ 70°C | 50mA |
