高品質福克斯晶振,FK13LEIBM0.032768-T3耐高溫晶振,FK13L顯卡驅動晶振
頻率：32.768KHZ

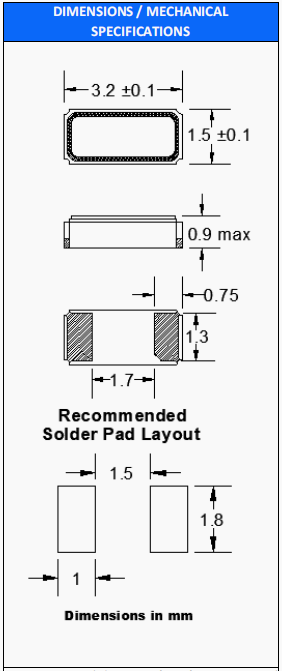

尺寸：3215mm
高品質福克斯晶振,FK13LEIBM0.032768-T3耐高溫晶振,FK13L顯卡驅動晶振,FOX晶振公司提供超過275種不同的產品，提供極其廣泛的頻率控制產品，包括石英晶體，時鐘晶體振蕩器，溫補晶體振蕩器，壓控晶體振蕩器和恒溫晶體振蕩器。移動網絡晶振，時鐘晶振，無源晶振，貼片晶振，FK13LEIBM0.032768-T3晶振，智能手表晶振，音叉晶振，進口晶振，FOX晶振，環保晶振，FK13L晶振，石英晶體，微型晶振，3215晶振，環保無鉛晶振，32.768KHz晶振，超小型晶振，高精度晶振，二腳晶振，低損耗晶振，美國晶振，SMD晶振，無源晶振，工業設備晶振，移動通訊晶振，6G信號放大器晶振，汽車晶振。
高品質福克斯晶振,FK13LEIBM0.032768-T3耐高溫晶振,FK13L顯卡驅動晶振

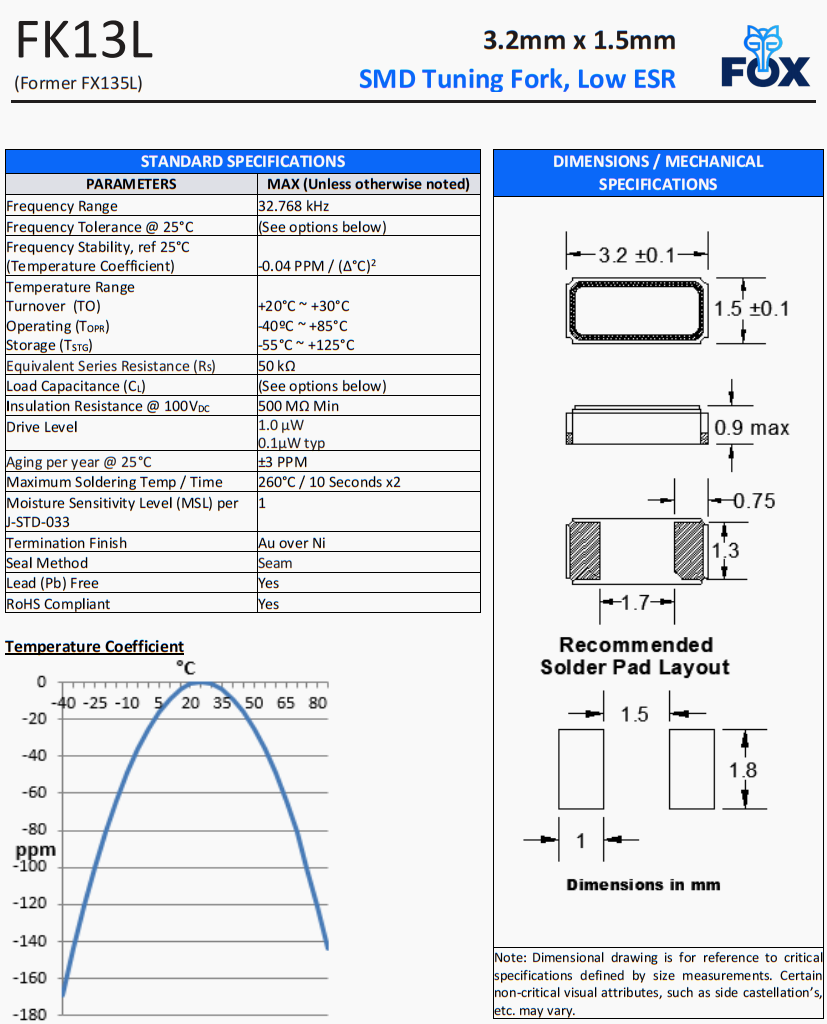

標準范圍
參數
MAX (Unless otherwise noted)
頻率
32.768 kHz
頻率容差
(See options below)
頻率穩定度
-0.04 PPM / (?°C)2
等效串聯電阻
50 k?
負載電容
(See options below)
絕緣電阻
500 M? Min
驅動電平
老化
±3 PPM
最大焊接溫度/時間
260°C / 10 Seconds x2
溫度敏感度
1
終止完成
Au over Ni
密封方法
Seam
無鉛
Yes
符合RoHS
Yes
高品質福克斯晶振,FK13LEIBM0.032768-T3耐高溫晶振,FK13L顯卡驅動晶振
| 編碼 | 品牌 | 型號 | 工作溫度 | 頻率 | 頻率穩定度 | 頻率容差 | 負載電容 |
| FC1BSCBEM27.12-T3 | Fox | FC1BS | -40°C ~ 85°C | 27.12 MHz | ±50ppm | ±30ppm | 10 pF |
| FC1BSCCEM16.0-T3 | Fox | FC1BS | -40°C ~ 85°C | 16 MHz | ±30ppm | ±30ppm | 10 pF |
| FC1BSHFEM32.0-T3 | Fox | FC1BS | -40°C ~ 85°C | 32 MHz | ±15ppm | ±10ppm | 10 pF |
| FC2BSBBMM16.0-T1 | Fox | FC2BS | -40°C ~ 85°C | 16 MHz | ±50ppm | ±50ppm | 20 pF |
| FC2BSBBMM16.0-T3 | Fox | FC2BS | -40°C ~ 85°C | 16 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BABBKM20.0-T3 | Fox | FC3BA | -40°C ~ 85°C | 20 MHz | ±50ppm | ±50ppm | 16 pF |
| FC3BACCGM20.0-T3 | Fox | FC3BA | -40°C ~ 85°C | 20 MHz | ±30ppm | ±30ppm | 12 pF |
| FC3BQBBDM20.0-T3 | Fox | FC3BQ | -40°C ~ 85°C | 20 MHz | ±50ppm | ±50ppm | 8 pF |
| FC3BQBBMM12.0-T1 | Fox | FC3BQ | -40°C ~ 85°C | 12 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBMM12.0-T3 | Fox | FC3BQ | -40°C ~ 85°C | 12 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBMM24.0-T1 | Fox | FC3BQ | -40°C ~ 85°C | 24 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBMM24.0-T3 | Fox | FC3BQ | -40°C ~ 85°C | 24 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBMM25.0-T1 | Fox | FC3BQ | -40°C ~ 85°C | 25 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBMM25.0-T3 | Fox | FC3BQ | -40°C ~ 85°C | 25 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBVM25.0-T3 | Fox | FC3BQ | -40°C ~ 85°C | 25 MHz | ±50ppm | ±50ppm | 7 pF |
| FC3BSBBEM26.0-T3 | Fox | FC3BS | -40°C ~ 85°C | 26 MHz | ±50ppm | ±50ppm | 10 pF |
| FC3BSBBLM25.0-T3 | Fox | FC3BS | -40°C ~ 85°C | 25 MHz | ±50ppm | ±50ppm | 18 pF |
| FC3BSBBMM25.0-T3 | Fox | FC3BS | -40°C ~ 85°C | 25 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BSHFEM12.0-T3 | Fox | FC3BS | -40°C ~ 85°C | 12 MHz | ±15ppm | ±10ppm | 10 pF |
| FC3VAEEGM50.0-T3 | Fox | FC3VA | -40°C ~ 85°C | 50 MHz | ±20ppm | ±20ppm | 12 pF |
| FC3VREEDM38.4-T1 | Fox | FC3VR | -40°C ~ 85°C | 38.4 MHz | ±20ppm | ±20ppm | 8 pF |
| FC3VREEDM38.88-T1 | Fox | FC3VR | -40°C ~ 85°C | 38.88 MHz | ±20ppm | ±20ppm | 8 pF |
| FC3VREEDM40.0-T1 | Fox | FC3VR | -40°C ~ 85°C | 40 MHz | ±20ppm | ±20ppm | 8 pF |
| FC3VREEDM48.0-T1 | Fox | FC3VR | -40°C ~ 85°C | 48 MHz | ±20ppm | ±20ppm | 8 pF |
| FC3VREEEM38.4-T1 | Fox | FC3VR | -40°C ~ 85°C | 38.4 MHz | ±20ppm | ±20ppm | 10 pF |
| FC3VREEGM36.0-T1 | Fox | FC3VR | -40°C ~ 85°C | 36 MHz | ±20ppm | ±20ppm | 12 pF |
| FC3VREEGM38.4-T1 | Fox | FC3VR | -40°C ~ 85°C | 38.4 MHz | ±20ppm | ±20ppm | 12 pF |
| FC3VREEGM38.88-T1 | Fox | FC3VR | -40°C ~ 85°C | 38.88 MHz | ±20ppm | ±20ppm | 12 pF |
| FC3VREEGM40.0-T1 | Fox | FC3VR | -40°C ~ 85°C | 40 MHz | ±20ppm | ±20ppm | 12 pF |
| FC3VREEGM50.0-T1 | Fox | FC3VR | -40°C ~ 85°C | 50 MHz | ±20ppm | ±20ppm | 12 pF |
| FC4SDCBGM8.0-T1 | Fox | FC4SD | -40°C ~ 85°C | 8 MHz | ±50ppm | ±30ppm | 12 pF |
| FC4SDCBMM10.0-T1 | Fox | FC4SD | -40°C ~ 85°C | 10 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMM12.0-T1 | Fox | FC4SD | -40°C ~ 85°C | 12 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMM16.0-T1 | Fox | FC4SD | -40°C ~ 85°C | 16 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMM20.0-T1 | Fox | FC4SD | -40°C ~ 85°C | 20 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMM25.0-T1 | Fox | FC4SD | -40°C ~ 85°C | 25 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMM3.6864-T1 | Fox | FC4SD | -40°C ~ 85°C | 3.6864 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMM4.0-T1 | Fox | FC4SD | -40°C ~ 85°C | 4 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMM6.0-T1 | Fox | FC4SD | -40°C ~ 85°C | 6 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMM8.0-T1 | Fox | FC4SD | -40°C ~ 85°C | 8 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDHCMM25.0-T1 | Fox | FC4SD | -40°C ~ 85°C | 25 MHz | ±30ppm | ±10ppm | 20 pF |
| FC5AQBAAM8.0-T1 | Fox | FC5AQ | -40°C ~ 85°C | 8 MHz | ±100ppm | ±50ppm | |
| FC5AQCCMM12.0-T1 | Fox | FC5AQ | -40°C ~ 85°C | 12 MHz | ±30ppm | ±30ppm | 20 pF |
| FC5AQECLM25.0-T1 | Fox | FC5AQ | -40°C ~ 85°C | 25 MHz | ±30ppm | ±20ppm | 18 pF |
| FC5BAEEEM8.0-T1 | Fox | FC5BA | -40°C ~ 85°C | 8 MHz | ±20ppm | ±20ppm | 10 pF |
| FC5BAEEMM8.0-T1 | Fox | FC5BA | -40°C ~ 85°C | 8 MHz | ±20ppm | ±20ppm | 20 pF |
| FC5BQCBKM12.0-T1 | Fox | FC5BQ | -40°C ~ 85°C | 12 MHz | ±50ppm | ±30ppm | 16 pF |
| FC5BQCCMM10.0-T1 | Fox | FC5BQ | -40°C ~ 85°C | 10 MHz | ±30ppm | ±30ppm | 20 pF |
| FC5BQCCMM12.0-T1 | Fox | FC5BQ | -40°C ~ 85°C | 12 MHz | ±30ppm | ±30ppm | 20 pF |
| FC5BQCCMM16.0-T1 | Fox | FC5BQ | -40°C ~ 85°C | 16 MHz | ±30ppm | ±30ppm | 20 pF |
| FC5BQCCMM20.0-T1 | Fox | FC5BQ | -40°C ~ 85°C | 20 MHz | ±30ppm | ±30ppm | 20 pF |
| FC5BQCCMM24.0-T1 | Fox | FC5BQ | -40°C ~ 85°C | 24 MHz | ±30ppm | ±30ppm | 20 pF |
| FC5BQCCMM25.0-T1 | Fox | FC5BQ | -40°C ~ 85°C | 25 MHz | ±30ppm | ±30ppm | 20 pF |
| FC5BQCCMM8.0-T1 | Fox | FC5BQ | -40°C ~ 85°C | 8 MHz | ±30ppm | ±30ppm | 20 pF |
| FC5BSCBLM20.0-T1 | Fox | FC5BS | -40°C ~ 85°C | 20 MHz | ±50ppm | ±30ppm | 18 pF |
| FC5BSCCEM19.6608-T1 | Fox | FC5BS | -40°C ~ 85°C | 19.6608 MHz | ±30ppm | ±30ppm | 10 pF |
| FC5BSHFEM25.0-T1 | Fox | FC5BS | -40°C ~ 85°C | 25 MHz | ±15ppm | ±10ppm | 10 pF |
| FC7ASBAMM9.216-T1 | Fox | FC7AS | -40°C ~ 85°C | 9.216 MHz | ±100ppm | ±50ppm | 20 pF |
| FC7ASBBMM16.0-T1 | Fox | FC7AS | -40°C ~ 85°C | 16 MHz | ±50ppm | ±50ppm | 20 pF |
| FC7ASBBMM9.216-T1 | Fox | FC7AS | -40°C ~ 85°C | 9.216 MHz | ±50ppm | ±50ppm | 20 pF |
| FC7ASCCGM7.6-T1 | Fox | FC7AS | -40°C ~ 85°C | 7.6 MHz | ±30ppm | ±30ppm | 12 pF |
| FC7BSBBGM25.0-T1 | Fox | FC7BS | -40°C ~ 85°C | 25 MHz | ±50ppm | ±50ppm | 12 pF |
| FC7BSCCEM6.0-T1 | Fox | FC7BS | -40°C ~ 85°C | 6 MHz | ±30ppm | ±30ppm | 10 pF |
| FC7BSCCMM6.0-T1 | Fox | FC7BS | -40°C ~ 85°C | 6 MHz | ±30ppm | ±30ppm | 20 pF |
| FC7BSCCMM7.3728-T1 | Fox | FC7BS | -40°C ~ 85°C | 7.3728 MHz | ±30ppm | ±30ppm | 20 pF |
| FC7BSCCMM8.0-T1 | Fox | FC7BS | -40°C ~ 85°C | 8 MHz | ±30ppm | ±30ppm | 20 pF |
| FC8AQCCMM3.6864-T1 | Fox | FC8AQ | -40°C ~ 85°C | 3.6864 MHz | ±30ppm | ±30ppm | 20 pF |
| FC8AQCCMM4.0-T1 | Fox | FC8AQ | -40°C ~ 85°C | 4 MHz | ±30ppm | ±30ppm | 20 pF |
| FC8AQCCMM6.0-T1 | Fox | FC8AQ | -40°C ~ 85°C | 6 MHz | ±30ppm | ±30ppm | 20 pF |
| FC9SDCBMM8.0-T1 | Fox | FC9SD | -40°C ~ 85°C | 8 MHz | ±50ppm | ±30ppm | 20 pF |
| FK121EIWM0.032768-T5 | Fox | FK121 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 9 pF | |
| FK122EIHM0.032768-T3 | Fox | FK122 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 12.5 pF | |
| FK124EIWM0.032768-T5 | Fox | FK124 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 9 pF | |
| FK125EIVM0.032768 | Fox | FK125 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 7 pF | |
| FK135EIHM0.032768-T3 | Fox | FK135 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 12.5 pF | |
| FK13LEIBM0.032768-T3 | Fox | FK13L | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 6 pF | |
| FK145EIHM0.032768-T3 | Fox | FK145 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 12.5 pF | |
| FK161EIHM0.032768-T5 | Fox | FK161 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 12.5 pF | |
| FKFSREIBM0.032768-T3 | Fox | FKFSR | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 6 pF | |
| FKFSREIHM0.032768-T3 | Fox | FKFSR | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 12.5 pF | |
| FKFSXEIHM0.032768-T3 | Fox | FKFSX | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 12.5 pF | |
| FKT26EIBM0.032768 | Fox | FKT26 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 6 pF | |
| FKT38EIHM0.032768 | Fox | FKT38 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 12.5 pF |
