領先全球的6G信號接收器晶振,進口ILSI晶體,ILCX04-BB3F12-11.0592MHz晶振

頻率：11.0592MHZ

尺寸：7050mm

領先全球的6G信號接收器晶振,進口ILSI晶體,ILCX04-BB3F12-11.0592MHz晶振，美國ILSI晶振，貼片晶振,ILCX04晶振,無源貼片晶振,石英晶振,貼片石英晶體,二腳晶振，插件晶振，歐美晶振，無源晶振，無人機晶振，電車充電槍晶振，石英晶體諧振器，工作溫度-40~85°C，網絡服務器晶振，存儲卡晶振，無線局域網晶振，光纖通道晶振.高品質晶振，進口晶振，艾爾西晶振，進口晶振，7050晶振，智能手機晶振，移動通信終端晶振，基準時鐘晶振，6G手機晶振,無線通信晶振,6G衛星晶振,貼片晶振,體積小,焊接可采用自動貼片系統,產品本身小型,表面貼片晶振,特別適用于有小型化要求的電子數碼產品市場領域,因產品小型,薄型優勢,耐環境特性,包括耐高溫,耐沖擊性等,在移動通信領域得到了廣泛的應用,晶振產品本身可發揮優良的電氣特性,滿足無鉛焊接的高溫回流溫度曲線要求.

訂購熱線：0755-27837162

領先全球的6G信號接收器晶振,進口ILSI晶體,ILCX04-BB3F12-11.0592MHz晶振，美國ILSI晶振，貼片晶振,ILCX04晶振,無源貼片晶振,石英晶振,貼片石英晶體,二腳晶振，插件晶振，歐美晶振，無源晶振，無人機晶振，電車充電槍晶振，石英晶體諧振器，工作溫度-40~85°C，網絡服務器晶振，存儲卡晶振，無線局域網晶振，光纖通道晶振.高品質晶振，進口晶振，艾爾西晶振，進口晶振，7050晶振，智能手機晶振，移動通信終端晶振，基準時鐘晶振，6G手機晶振,無線通信晶振,6G衛星晶振,貼片晶振,體積小,焊接可采用自動貼片系統,產品本身小型,表面貼片晶振,特別適用于有小型化要求的電子數碼產品市場領域,因產品小型,薄型優勢,耐環境特性,包括耐高溫,耐沖擊性等,在移動通信領域得到了廣泛的應用,晶振產品本身可發揮優良的電氣特性,滿足無鉛焊接的高溫回流溫度曲線要求.

領先全球的6G信號接收器晶振,進口ILSI晶體,ILCX04-BB3F12-11.0592MHz晶振

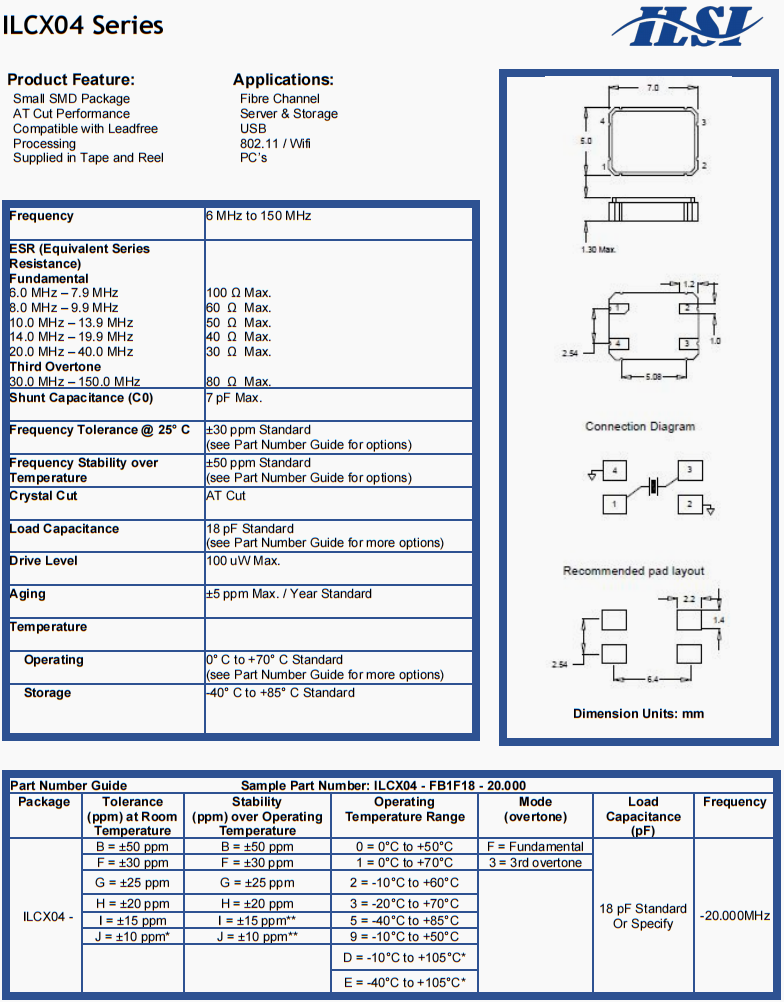

頻率	8MHz to 150MHz
基礎等效串聯電阻 8MHz – 9.999999MHz 10MHz – 11.999999MHz 12MHz – 15.999999MHz 16MHz – 19.999999MHz 20MHz – 23.999999MHz 24MHz – 50MHz Third Overtone 30MHz – 150MHz	100 Ohms Maximum 80 Ohms Maximum 60 Ohms Maximum 50 Ohms Maximum 40 Ohms Maximum 30 Ohms Maximum 80 Ohms Maximum
分流電容 (C0)	5pF Maximum
頻率容差 (at 25°C)	±50ppm, ±30ppm, ±25ppm, ±20ppm, ±15ppm, or ±10ppm
溫度范圍內的頻率穩定度	±50ppm, ±30ppm, ±25ppm, ±20ppm, ±15ppm, or ±10ppm
工作模式 8MHz – 50MHz 30MHz – 150MHz	Fundamental Third Overtone
水晶切割	AT Cut
負載電容	8pF to 32pF or Specify
驅動電平	100µW Maximum
老化	±5ppm/Year Maximum
工作溫度范圍	See Part Number Guide
儲存溫度范圍	-40°C to +85°C

領先全球的6G信號接收器晶振,進口ILSI晶體,ILCX04-BB3F12-11.0592MHz晶振

原廠編碼	生產商品牌	型號	頻率	頻率穩定度	頻率容差	負載電容	工作溫度范圍
HC49US-FF3F18-8.000MHZ	ILSI	HC49US	8 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-27.000MHZ	ILSI	HC49USM	27 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-8.000MHZ	ILSI	HC49USM	8 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF5F18-3.6864MHZ	ILSI	HC49USM	3.6864 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
ILCX13-FF5F10-16.384MHZ	ILSI	ILCX13	16.384 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
ILCX13-FF5F10-12.000MHZ	ILSI	ILCX13	12 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
HC49US-FF3F18-4.0960MHZ	ILSI	HC49US	4.096 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
IXA16-HBFF12-25.000MHZ	ILSI	IXA16	25 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA16-HBFF12-16.000MHZ	ILSI	IXA16	16 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA16-HF5F12-12.000 MHZ	ILSI	IXA16	12 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA16-HBFF12-24.000MHZ	ILSI	IXA16	24 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA20-HF5F12-16.000MHZ	ILSI	IXA20	16 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA18-FBFF8-16.000MHZ	ILSI	IXA18	16 MHz	±50ppm	±30ppm	8pF	-40°C ~ 125°C
HC49USM-FF5F18-18.4320MHZ	ILSI	HC49USM	18.432 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
ILCX13-FF5F10-27.000MHZ	ILSI	ILCX13	27 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
ILCX13-FF5F10-20.000MHZ	ILSI	ILCX13	20 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
IXA16-HBFF12-18.432MHZ	ILSI	IXA16	18.432 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA18-FBFF8-10.000 MHZ	ILSI	IXA18	10 MHz	±50ppm	±30ppm	8pF	-40°C ~ 125°C
IL3W-HX5F9-32.768KHZ	ILSI	IL3W	32.768 kHz	-	±20ppm	9pF	-40°C ~ 85°C
IL3X2-HX5F7- 32.768 KHZ	ILSI	IL3X2	32.768 kHz	-	±20ppm	7pF	-40°C ~ 85°C
HC49USM-FF3F18-11.0592MHZ	ILSI	HC49USM	11.0592 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-7.3728MHZ	ILSI	HC49USM	7.3728 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-20.000MHZ	ILSI	HC49USM	20 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
ILCX13-FF5F10-26.000MHZ	ILSI	ILCX13	26 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
HC49USM-FF3F18-16.000MHZ	ILSI	HC49USM	16 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF5F18-14.7456MHZ	ILSI	HC49USM	14.7456 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF5F18-27.000MHZ	ILSI	HC49USM	27 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF5F18-16.000MHZ	ILSI	HC49USM	16 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF5F18-12.000MHZ	ILSI	HC49USM	12 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
ILCX19-FF5F10-27.120MHZ	ILSI	ILCX19	27.12 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
IXA16-HBFF12-12.288MHZ	ILSI	IXA16	12.288 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA16-HBFF12-27.000MHZ	ILSI	IXA16	27 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA16-HBFF12-26.000MHZ	ILSI	IXA16	26 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA12-FBFF10-27.000MHZ	ILSI	IXA12	27 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
IXA16-HF5F12-18.432MHZ	ILSI	IXA16	18.432 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA12-FBFF10-32.000MHZ	ILSI	IXA12	32 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
IXA16-HF5F12-28.63636MHZ	ILSI	IXA16	28.63636 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA16-HF5F12-20.000MHZ	ILSI	IXA16	20 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA16-HF5F12-12.288MHZ	ILSI	IXA16	12.288 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA16-HF5F12-26.000MHZ	ILSI	IXA16	26 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA12-FBFF10-27.120MHZ	ILSI	IXA12	27.12 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
IXA12-FBFF10-24.576 MHZ	ILSI	IXA12	24.576 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
IXA10-HF5F10-26.000MHZ	ILSI	IXA10	26 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA10-HF5F10-27.000MHZ	ILSI	IXA10	27 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA10-FBFF10-26.000MHZ	ILSI	IXA10	26 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
ILCX13-FF5F10-25.000MHZ	ILSI	ILCX13	25 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
ILCX19-FF5F10-54.000MHZ	ILSI	ILCX19	54 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
IXA12-HF5F10-20.000MHZ	ILSI	IXA12	20 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA12-HF5F10-24.576MHZ	ILSI	IXA12	24.576 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA12-HF5F10-24.000MHZ	ILSI	IXA12	24 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA12-HF5F10-32.000MHZ	ILSI	IXA12	32 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA12-HF5F10-26.000MHZ	ILSI	IXA12	26 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA12-HF5F10-25.000MHZ	ILSI	IXA12	25 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA16-HBFF12-30.000MHZ	ILSI	IXA16	30 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA16-HBFF12-12.000MHZ	ILSI	IXA16	12 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA16-HBFF12-24.576MHZ	ILSI	IXA16	24.576 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA12-HF5F10-19.200MHZ	ILSI	IXA12	19.2 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA16-HBFF12-32.000MHZ	ILSI	IXA16	32 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA16-HBFF12-13.560MHZ	ILSI	IXA16	13.56 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
ILCX19-IH5F8-48.000MHZ	ILSI	ILCX19	48 MHz	±20ppm	±15ppm	8pF	-40°C ~ 85°C
IXA16-HF5F12-30.000MHZ	ILSI	IXA16	30 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA16-HF5F12-24.576MHZ	ILSI	IXA16	24.576 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA16-HF5F12-13.560MHZ	ILSI	IXA16	13.56 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA10-HF5F10-24.000MHZ	ILSI	IXA10	24 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA16-HF5F12-25.000MHZ	ILSI	IXA16	25 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
