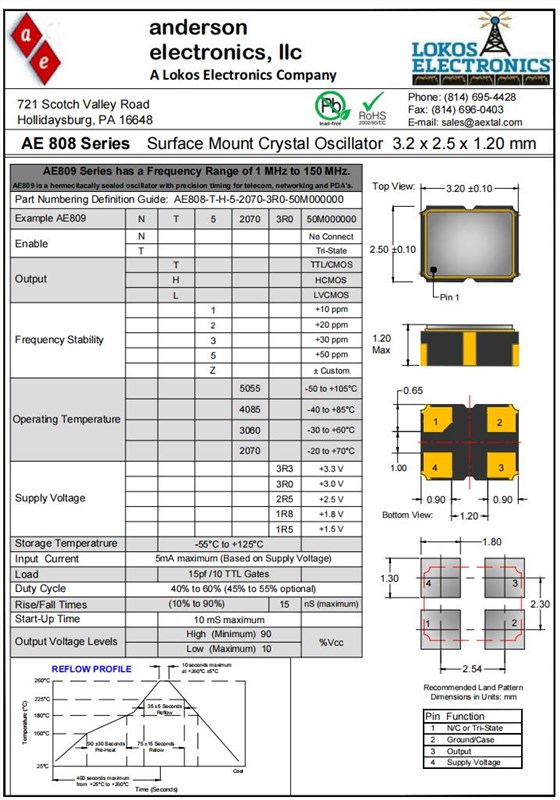

AE808-T-H-1-4085-3R0-40M000000,Anderson品牌,6G基站晶振規格表
項目
規格說明
額定頻率
40MHz
Enable
Tri-State
輸出
HCMOS
工作溫度
-40℃~ +85℃
頻率穩定性
±10ppm
供電電壓
+3.0V
儲存溫度
-55℃~+125°C
輸入電流
5mA maximum (Based on Supply Voltage)
負載
15pf /10 TTL Gates
占空比
40% to 60% (45% to 55% optional)
上升和下降時間
(10% to 90%)15nS (maximum)
啟動時間
10 mS maximum
輸出電壓電平
High (Minimum) 90%Vcc
Low (Maximum) 10%Vcc

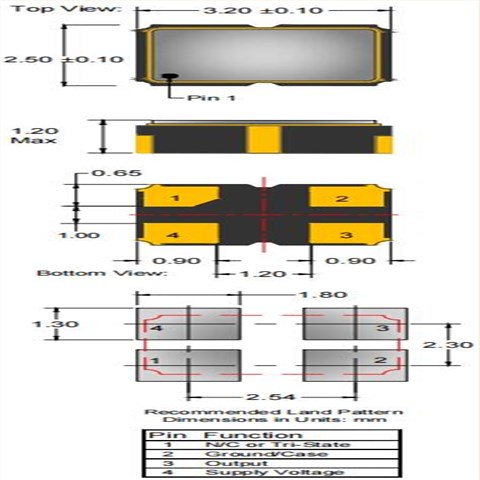

AE808-T-H-1-4085-3R0-40M000000,Anderson品牌,6G基站晶振尺寸圖
