EC5645ETTTS-48.000MTR,日蝕有源晶振,2520晶體振蕩器
EC5645ETTTS-48.000MTR,日蝕有源晶振,2520晶體振蕩器
原廠型號Originalmodel：
EC5645ETTTS-48.000M TR
品牌brand：
Ecliptek晶振
Manufacturer品牌
Ecliptek晶振
OperatingTemperature溫度
-40°C ~ 85°C
Series型號
EC56
Current-Supply(Max)
8mA
Type類型
XO (Standard)
PackageHeight高度
1.00mm
Frequency頻率
48 MHz
Termination腳位
4 pad
輸出方式Output：
LVCMOS
PackageType封裝類型
4-SMD
Voltage-Supply電壓
3.3V
Packaging包裝
TapeandReel
FrequencyStability頻率穩定度
±50ppm
安裝方式Installation：
Surfacemount

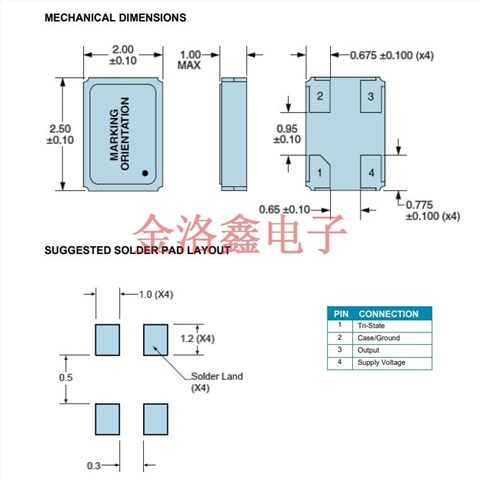

Size/Dimension尺寸
2.50mm x 2.00mm
最小包裝數MPQ：
3000
EC5645ETTTS-48.000MTR,日蝕有源晶振,2520晶體振蕩器
EC5645ETTTS-48.000MTR,日蝕有源晶振,2520晶體振蕩器
| EC5625ETTTS-8.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 8 MHz | LVCMOS | 3.3V | ±25ppm |
| EC3645ETTTS-8.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 8 MHz | LVCMOS | 3.3V | ±50ppm |
| EC3625ETTTS-32.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 32 MHz | LVCMOS | 3.3V | ±25ppm |
| EB13E2H2H-25.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 25 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2H2H-50.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 50 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2H2H-33.333M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 33.333 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2H2H-48.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 48 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2H2H-24.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 24 MHz | CMOS | 3.3V | ±50ppm |
| EC5645ETTTS-24.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 24 MHz | LVCMOS | 3.3V | ±50ppm |
| EC5645ETTTS-25.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±50ppm |
| EC2745ETTTS-25.000M TR | Ecliptek晶振 | EC27 | XO (Standard) | 25 MHz | LVCMOS | 2.5V | ±50ppm |
| EC3645TS-25.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±50ppm |
| EC3645TTS-25.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±50ppm |
| EC3645ETTTS-12.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 12 MHz | LVCMOS | 3.3V | ±50ppm |
| EC3625ETTTS-16.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 16 MHz | LVCMOS | 3.3V | ±25ppm |
| EC3625ETTTS-27.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 27 MHz | LVCMOS | 3.3V | ±25ppm |
| EC3645ETTTS-25.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±50ppm |
| EC3625ETTTS-25.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±25ppm |
| EC2645TS-25.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±50ppm |
| EC2645TTS-33.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 33 MHz | LVCMOS | 3.3V | ±50ppm |
| EC2600TS-40.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 40 MHz | LVCMOS | 3.3V | ±100ppm |
| EC2620TS-25.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±20ppm |
| EC2645ETTS-33.333M TR | Ecliptek晶振 | EC26 | XO (Standard) | 33.333 MHz | CMOS | 3.3V | ±50ppm |
| EQRD13K2J-156.250M TR | Ecliptek晶振 | EQRD | XO (Standard) | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| EC5625ETTTS-4.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 4 MHz | LVCMOS | 3.3V | ±25ppm |
| EC3625TTS-27.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 27 MHz | LVCMOS | 3.3V | ±25ppm |
| EC5945ETTS-26.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 26 MHz | CMOS | 1.8V | ±50ppm |
| EB13E2E2H-25.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 25 MHz | CMOS | 3.3V | ±25ppm |
| EB13E2E2H-50.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 50 MHz | CMOS | 3.3V | ±25ppm |
| EB13E2D2H-40.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 40 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2J2H-50.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 50 MHz | CMOS | 3.3V | ±25ppm |
| EB13E2H2H-16.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 16 MHz | CMOS | 3.3V | ±50ppm |
| EC5625ETTTS-12.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 12 MHz | LVCMOS | 3.3V | ±25ppm |
| EC5645ETTTS-32.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 32 MHz | LVCMOS | 3.3V | ±50ppm |
| EC2745TTS-25.000M TR | Ecliptek晶振 | EC27 | XO (Standard) | 25 MHz | LVCMOS | 2.5V | ±50ppm |
| EC3625ETTTS-10.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 10 MHz | LVCMOS | 3.3V | ±25ppm |
| EC3645ETTS-25.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±50ppm |
| EC3645TS-50.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 50 MHz | LVCMOS | 3.3V | ±50ppm |
| EC2620TS-12.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 12 MHz | CMOS | 3.3V | ±20ppm |
| EC2620TS-50.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 50 MHz | LVCMOS | 3.3V | ±20ppm |
| EV32C6A3A1-24.576M TR | Ecliptek晶振 | EV32 | XO (Standard) | 24.576 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2E2H-16.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 16 MHz | CMOS | 3.3V | ±25ppm |
| EC3600ETTS-18.432M TR | Ecliptek晶振 | EC36 | XO (Standard) | 18.432 MHz | LVCMOS | 3.3V | ±100ppm |
| EB13E2H2H-10.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 10 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2H2H-27.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 27 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2H2H-20.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 20 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2H2H-12.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 12 MHz | CMOS | 3.3V | ±50ppm |
| EC3645ETTTS-24.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 24 MHz | LVCMOS | 3.3V | ±50ppm |
| EB15E2C2H-40.000M TR | Ecliptek晶振 | EB15E2 | XO (Standard) | 40 MHz | LVCMOS | 2.5V | ±100ppm |
| EC2600TS-66.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 66 MHz | LVCMOS | 3.3V | ±100ppm |
| EC5645ETTTS-27.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 27 MHz | LVCMOS | 3.3V | ±50ppm |
| EC5645ETTTS-30.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 30 MHz | LVCMOS | 3.3V | ±50ppm |
| EC5645ETTTS-48.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 48 MHz | LVCMOS | 3.3V | ±50ppm |
| EB13E2H2H-8.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 8 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2E2H-48.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 48 MHz | CMOS | 3.3V | ±25ppm |
| EB13E2E2H-8.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 8 MHz | CMOS | 3.3V | ±25ppm |
| EB13E2H2H-24.576M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 24.576 MHz | CMOS | 3.3V | ±50ppm |
| EC5625ETTTS-10.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 10 MHz | LVCMOS | 3.3V | ±25ppm |
| EB13E2J2H-25.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 25 MHz | CMOS | 3.3V | ±25ppm |
| EB13E2H2H-14.7456M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 14.7456 MHz | CMOS | 3.3V | ±50ppm |
