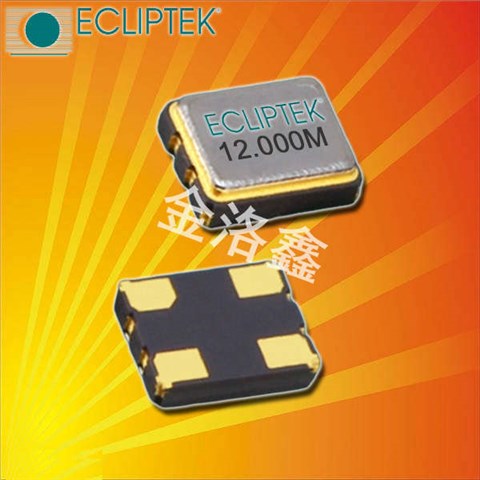

EB13E2E2H-48.000MTR,小型貼裝晶振,Ecliptek日蝕晶振
EB13E2E2H-48.000MTR 采用極致的小型化貼裝封裝，尺寸僅為 3.2mm×2.5mm×0.8mm（長 × 寬 × 高），相比傳統 4.0mm×2.5mm 規格的貼裝晶振，體積縮小 37.5%，可輕松嵌入高密度 PCB 板（如智能手機的射頻模塊、物聯網網關的微型控制板）。其貼裝引腳采用 “無鉛焊盤設計”，間距精準控制在 0.5mm，完美兼容主流 SMT 生產線（如雅馬哈 YSM40R 貼片機、三星 SM481PLUS 貼片機），無需調整設備參數即可實現自動化批量焊接，焊接良率達 99.6% 以上。對于追求輕薄化的產品（如超薄筆記本電腦、可穿戴健康監測設備），該晶振的小型化設計能為其他元器件（如電池、傳感器）預留更多空間，助力設備實現 “輕、薄、小” 的設計目標，同時減少人工焊接成本，提升生產效率，契合電子設備高密度集成的發展趨勢。
EB13E2E2H-48.000MTR,小型貼裝晶振,Ecliptek日蝕晶振
| 原廠型號Originalmodel： |
          EB13E2E2H-48.000M TR
|
品牌brand： | Ecliptek晶振 |
| Manufacturer品牌 | Ecliptek晶振 | OperatingTemperature溫度 | -20°C ~ 70°C |
| Series型號 |
  EB13E2
|
Current-Supply(Max) | 6mA |
| Type類型 | XO (Standard) | PackageHeight高度 | 1.10mm |
| Frequency頻率 |
  48 MHz
|
Termination腳位 |
 4 pad
|
| 輸出方式Output： | CMOS | PackageType封裝類型 | 4-SMD |
| Voltage-Supply電壓 | 3.3V | Packaging包裝 | TapeandReel |
| FrequencyStability頻率穩定度 |
      ±25ppm
|
安裝方式Installation： | Surfacemount |

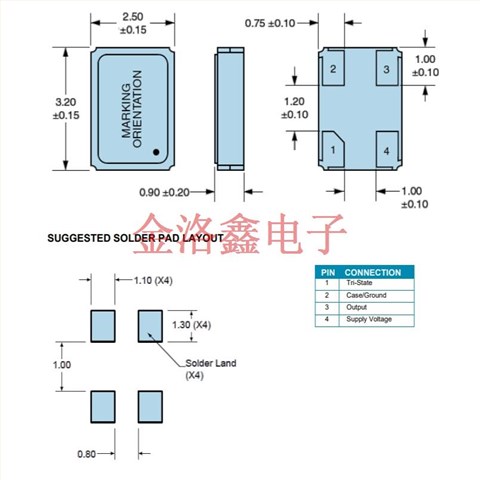

| Size/Dimension尺寸 | 3.20mm x 2.50mm | 最小包裝數MPQ： | 3000 |
EB13E2E2H-48.000MTR,小型貼裝晶振,Ecliptek日蝕晶振
EB13E2E2H-48.000MTR,小型貼裝晶振,Ecliptek日蝕晶振
| EC5625ETTTS-8.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 8 MHz | LVCMOS | 3.3V | ±25ppm |
| EC3645ETTTS-8.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 8 MHz | LVCMOS | 3.3V | ±50ppm |
| EC3625ETTTS-32.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 32 MHz | LVCMOS | 3.3V | ±25ppm |
| EB13E2H2H-25.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 25 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2H2H-50.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 50 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2H2H-33.333M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 33.333 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2H2H-48.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 48 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2H2H-24.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 24 MHz | CMOS | 3.3V | ±50ppm |
| EC5645ETTTS-24.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 24 MHz | LVCMOS | 3.3V | ±50ppm |
| EC5645ETTTS-25.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±50ppm |
| EC2745ETTTS-25.000M TR | Ecliptek晶振 | EC27 | XO (Standard) | 25 MHz | LVCMOS | 2.5V | ±50ppm |
| EC3645TS-25.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±50ppm |
| EC3645TTS-25.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±50ppm |
| EC3645ETTTS-12.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 12 MHz | LVCMOS | 3.3V | ±50ppm |
| EC3625ETTTS-16.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 16 MHz | LVCMOS | 3.3V | ±25ppm |
| EC3625ETTTS-27.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 27 MHz | LVCMOS | 3.3V | ±25ppm |
| EC3645ETTTS-25.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±50ppm |
| EC3625ETTTS-25.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±25ppm |
| EC2645TS-25.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±50ppm |
| EC2645TTS-33.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 33 MHz | LVCMOS | 3.3V | ±50ppm |
| EC2600TS-40.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 40 MHz | LVCMOS | 3.3V | ±100ppm |
| EC2620TS-25.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±20ppm |
| EC2645ETTS-33.333M TR | Ecliptek晶振 | EC26 | XO (Standard) | 33.333 MHz | CMOS | 3.3V | ±50ppm |
| EQRD13K2J-156.250M TR | Ecliptek晶振 | EQRD | XO (Standard) | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| EC5625ETTTS-4.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 4 MHz | LVCMOS | 3.3V | ±25ppm |
| EC3625TTS-27.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 27 MHz | LVCMOS | 3.3V | ±25ppm |
| EC5945ETTS-26.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 26 MHz | CMOS | 1.8V | ±50ppm |
| EB13E2E2H-25.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 25 MHz | CMOS | 3.3V | ±25ppm |
| EB13E2E2H-50.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 50 MHz | CMOS | 3.3V | ±25ppm |
| EB13E2D2H-40.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 40 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2J2H-50.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 50 MHz | CMOS | 3.3V | ±25ppm |
| EB13E2H2H-16.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 16 MHz | CMOS | 3.3V | ±50ppm |
| EC5625ETTTS-12.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 12 MHz | LVCMOS | 3.3V | ±25ppm |
| EC5645ETTTS-32.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 32 MHz | LVCMOS | 3.3V | ±50ppm |
| EC2745TTS-25.000M TR | Ecliptek晶振 | EC27 | XO (Standard) | 25 MHz | LVCMOS | 2.5V | ±50ppm |
| EC3625ETTTS-10.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 10 MHz | LVCMOS | 3.3V | ±25ppm |
| EC3645ETTS-25.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±50ppm |
| EC3645TS-50.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 50 MHz | LVCMOS | 3.3V | ±50ppm |
| EC2620TS-12.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 12 MHz | CMOS | 3.3V | ±20ppm |
| EC2620TS-50.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 50 MHz | LVCMOS | 3.3V | ±20ppm |
| EV32C6A3A1-24.576M TR | Ecliptek晶振 | EV32 | XO (Standard) | 24.576 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2E2H-16.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 16 MHz | CMOS | 3.3V | ±25ppm |
| EC3600ETTS-18.432M TR | Ecliptek晶振 | EC36 | XO (Standard) | 18.432 MHz | LVCMOS | 3.3V | ±100ppm |
| EB13E2H2H-10.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 10 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2H2H-27.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 27 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2H2H-20.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 20 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2H2H-12.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 12 MHz | CMOS | 3.3V | ±50ppm |
| EC3645ETTTS-24.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 24 MHz | LVCMOS | 3.3V | ±50ppm |
| EB15E2C2H-40.000M TR | Ecliptek晶振 | EB15E2 | XO (Standard) | 40 MHz | LVCMOS | 2.5V | ±100ppm |
| EC2600TS-66.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 66 MHz | LVCMOS | 3.3V | ±100ppm |
| EC5645ETTTS-27.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 27 MHz | LVCMOS | 3.3V | ±50ppm |
| EC5645ETTTS-30.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 30 MHz | LVCMOS | 3.3V | ±50ppm |
| EC5645ETTTS-48.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 48 MHz | LVCMOS | 3.3V | ±50ppm |
| EB13E2H2H-8.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 8 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2E2H-48.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 48 MHz | CMOS | 3.3V | ±25ppm |
| EB13E2E2H-8.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 8 MHz | CMOS | 3.3V | ±25ppm |
| EB13E2H2H-24.576M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 24.576 MHz | CMOS | 3.3V | ±50ppm |
| EC5625ETTTS-10.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 10 MHz | LVCMOS | 3.3V | ±25ppm |
| EB13E2J2H-25.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 25 MHz | CMOS | 3.3V | ±25ppm |
| EB13E2H2H-14.7456M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 14.7456 MHz | CMOS | 3.3V | ±50ppm |
