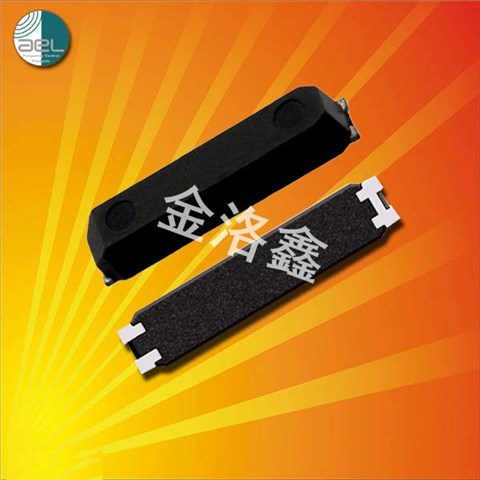

ELS13-32.768kHz-T,AEL石英晶體,儀表設備晶振,7015mm諧振器，英國進口晶振，AEL艾爾晶振，型號：ELS13系列，編碼為：ELS13-32.768kHz-T，負載電容：12.5pF，頻率公差：±20ppm，頻率：32.768KHz，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：7.0x1.5x1.4mm封裝，四腳貼片晶振，7.0*1.5晶振，石英晶振，無源晶振，陶瓷晶振，SMD音叉晶體，石英晶體諧振器，具有超小型晶振，輕薄型晶振，高品質晶振，耐熱及耐環境特點，應用于：通訊設備晶振，儀表設備晶振，數字電子晶振，電視機晶振等應用。

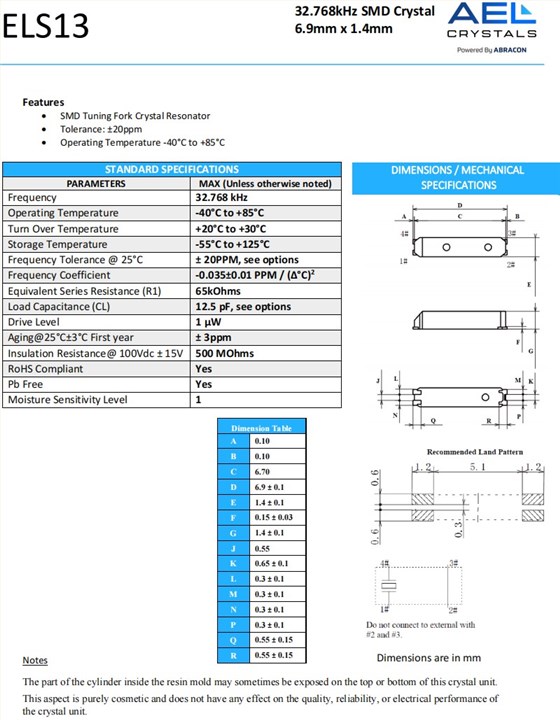

ELS13-32.768kHz-T,AEL石英晶體,儀表設備晶振,7015mm諧振器,參數表
PARAMETERS
MAX (Unless otherwise noted)
Frequency
32.768 kHz
Operating Temperature
-40°C to +85°C
Turn Over Temperature
+20°C to +30°C
Storage Temperature
-55°C to +125°C
Frequency Tolerance @ 25°C
± 20PPM, see options
Frequency Coefficient
-0.035±0.01 PPM / (?°C)2
Equivalent Series Resistance (R1)
65kOhms
Load Capacitance (CL)
12.5 pF, see options
Drive Level
1 μW
Aging@25°C±3°C First year
± 3ppm
Insulation Resistance@ 100Vdc ± 15V
500 MOhms
RoHS Compliant
Yes
Pb Free
Yes
Moisture Sensitivity Level
1
