奧斯利康通訊設備晶振,HC49USM-BA1F12- 24.000 MHz環保無鉛晶振,250美國進口晶振，美國Oscilent晶振公司，奧斯康利晶振，250晶振，HC49USM-BA1F12- 24.000 MHz晶振，無源晶振，汽車晶振，小型晶振，低損耗晶振，石英晶振，歐美進口晶振，高品質晶振，貼片晶振，北斗衛星定位模塊晶振，無人機晶振，高精度晶振，貼片晶振，無源晶振，高精度晶振，通訊設備晶振，無線傳輸晶振，局域網晶振，小體積晶振，低損耗晶振，成本效益，低配置，節省空間的設計，磁帶和卷軸，符合RoHs/無鉛標準。

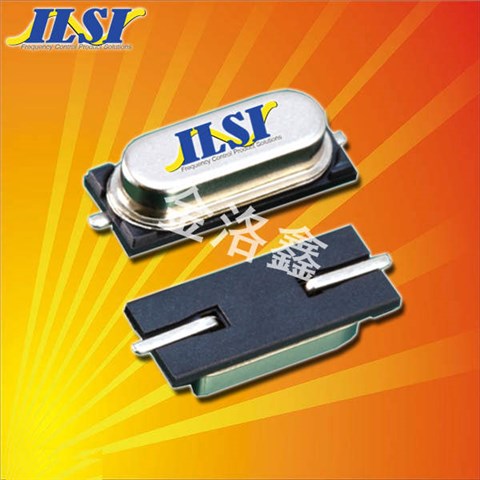

奧斯利康通訊設備晶振,HC49USM-BA1F12- 24.000 MHz環保無鉛晶振
| 參數 | 條件 | 特點 | 單位 |
| 頻率 | fO | 3.000 ~ 85.00 | MHz |
| 頻率容差 | Ref @ +25°C | ±30 std. (±5 ~ ±100 avail.) | PPM |
| 頻率穩定度 | TL | ±50 std. (See Table 2) | PPM |
| 工作溫度 | TOPR | -10 ~ +60 std. (See Table 2) | °C |
| 儲存溫度 | TSTG | -55 ~ +125 | °C |
| 等效串聯電阻 | ESR | (See Table 1) | Ohms |
| 工作模式 | (See Table 1) | ||
| 分流電容 | CO | 7.0 max. | pF |
| 負載電容 | CL | 20.0 std. (8 ~ 50 and Series avail.) | pF |
| 驅動電平 | DL | 0.1 ~ 1.0 | mW |
| 老化 | @ +25°C | ±5.0 | PPM/Y |
| 絕緣電阻 | IR | 500 (DC100 ±10V) min. | Mohm |
奧斯利康通訊設備晶振,HC49USM-BA1F12- 24.000 MHz環保無鉛晶振
| 編碼 | 品牌 | 型號 | 工作溫度 | 頻率 | 頻率穩定度 | 頻率容差 | 負載電容 |
| 151-16.0M-20-W | Oscilent | 151 | -40℃ ~ 85℃ | 16 MHz | ±50ppm | ±30ppm | 20 pF |
| 151-3.6864M-10-W-TR | Oscilent | 151 | -40℃ ~ 85℃ | 3.6864 MHz | ±50ppm | ±30ppm | 10 pF |
| 151-7.3728M-SR-W-TR | Oscilent | 151 | -40℃ ~ 85℃ | 7.3728 MHz | ±50ppm | ±30ppm | |
| 250-11.0592M-20-S-TR | Oscilent | 250 | -20℃ ~ 70℃ | 11.0592 MHz | ±50ppm | ±30ppm | 20 pF |
| 250-11.625M-03-T-TR | Oscilent | 250 | -30℃ ~ 80℃ | 11.625 MHz | ±50ppm | ±30ppm | 3 pF |
| 250-12.0M-20-P-TR | Oscilent | 250 | 0℃ ~ 50℃ | 12 MHz | ±50ppm | ±30ppm | 20 pF |
| 250-12.0M-30-30GS-TR | Oscilent | 250 | -20℃ ~ 70℃ | 12 MHz | ±30ppm | ±30ppm | 30 pF |
| 250-12.9024M-20-S-TR | Oscilent | 250 | -20℃ ~ 70℃ | 12.9024 MHz | ±50ppm | ±30ppm | 20 pF |
| 250-14.7456M-20-S | Oscilent | 250 | -20℃ ~ 70℃ | 14.7456 MHz | ±50ppm | ±30ppm | 20 pF |
| 250-14.7456M-20-S-TR | Oscilent | 250 | -20℃ ~ 70℃ | 14.7456 MHz | ±50ppm | ±30ppm | 20 pF |
| 250-16.0M-20-W-TR | Oscilent | 250 | -40℃ ~ 85℃ | 16 MHz | ±50ppm | ±30ppm | 20 pF |
| 250-16.777216M-20-S | Oscilent | 250 | -20℃ ~ 70℃ | 16.777216 MHz | ±50ppm | ±30ppm | 20 pF |
| 250-18.432M-SR-S-TR | Oscilent | 250 | -20℃ ~ 70℃ | 18.432 MHz | ±50ppm | ±30ppm | |
| 250-20.0M-20-S-TR | Oscilent | 250 | -20℃ ~ 70℃ | 20 MHz | ±50ppm | ±30ppm | 20 pF |
| 250-24.0M-20-S-TR | Oscilent | 250 | -20℃ ~ 70℃ | 24 MHz | ±50ppm | ±30ppm | 20 pF |
| 250-25.0M-12-S-TR | Oscilent | 250 | -20℃ ~ 70℃ | 25 MHz | ±50ppm | ±30ppm | 12 pF |
| 250-26.0M-16-15HS-TR | Oscilent | 250 | -20℃ ~ 70℃ | 26 MHz | ±20ppm | ±15ppm | 16 pF |
| 250-29.4912M-20-S-TR | Oscilent | 250 | -20℃ ~ 70℃ | 29.4912 MHz | ±50ppm | ±30ppm | 20 pF |
| 250-29.4912M-20-W-TR | Oscilent | 250 | -40℃ ~ 85℃ | 29.4912 MHz | ±50ppm | ±30ppm | 20 pF |
| 250-3.6864M-20-S-TR | Oscilent | 250 | -20℃ ~ 70℃ | 3.6864 MHz | ±50ppm | ±30ppm | 20 pF |
| 250-3.6864M-20-W-TR | Oscilent | 250 | -40℃ ~ 85℃ | 3.6864 MHz | ±50ppm | ±30ppm | 20 pF |
| 250-4.0M-18-S-TR | Oscilent | 250 | -20℃ ~ 70℃ | 4 MHz | ±50ppm | ±30ppm | 18 pF |
| 250-4.801565M-03-W-TR | Oscilent | 250 | -40℃ ~ 85℃ | 4.801565 MHz | ±50ppm | ±30ppm | 3 pF |
| 250-4.9152M-SR-S-TR | Oscilent | 250 | -20℃ ~ 70℃ | 4.9152 MHz | ±50ppm | ±30ppm | |
| 250-5.645315M-03-W | Oscilent | 250 | -40℃ ~ 85℃ | 5.645315 MHz | ±50ppm | ±30ppm | 3 pF |
| 250-6.612817M-03-W-TR | Oscilent | 250 | -40℃ ~ 85℃ | 6.612817 MHz | ±50ppm | ±30ppm | 3 pF |
| 250-7.3728M-12-W-TR | Oscilent | 250 | -40℃ ~ 85℃ | 7.3728 MHz | ±50ppm | ±30ppm | 12 pF |
| 250-9.9375M-03-W-TR | Oscilent | 250 | -40℃ ~ 85℃ | 9.9375 MHz | ±50ppm | ±30ppm | 3 pF |
| 253-11.0592M-18-W-TR | Oscilent | 253 | -40℃ ~ 85℃ | 11.0592 MHz | ±50ppm | ±30ppm | 18 pF |
| 253-7.3728M-SR-S-TR | Oscilent | 253 | -20℃ ~ 70℃ | 7.3728 MHz | ±50ppm | ±30ppm | |
| 276-25.0M-20-S-TR | Oscilent | 276 | -20℃ ~ 70℃ | 25 MHz | ±50ppm | ±30ppm | 20 pF |
| 278-20.0M-20-W | Oscilent | 278 | -40℃ ~ 85℃ | 20 MHz | ±50ppm | ±30ppm | 20 pF |
| 278-20.0M-20-W-TR | Oscilent | 278 | -40℃ ~ 85℃ | 20 MHz | ±50ppm | ±30ppm | 20 pF |
| 278-24.0M-18-S-TR | Oscilent | 278 | -20℃ ~ 70℃ | 24 MHz | ±50ppm | ±30ppm | 18 pF |
| 278-24.545454M-12-W-TR | Oscilent | 278 | -40℃ ~ 85℃ | 24.545454 MHz | ±50ppm | ±30ppm | 12 pF |
| 278-25.0M-20-W-TR | Oscilent | 278 | -40℃ ~ 85℃ | 25 MHz | ±50ppm | ±30ppm | 20 pF |
| 223-000306-20-LF-TR | Oscilent | 223 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 6 pF | |
| 223-000312-20-LF-TR | Oscilent | 223 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 12 pF | |
| 223-000312-20-TR | Oscilent | 223 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 12 pF | |
| 224-000307-20-TR | Oscilent | 224 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 7 pF |
