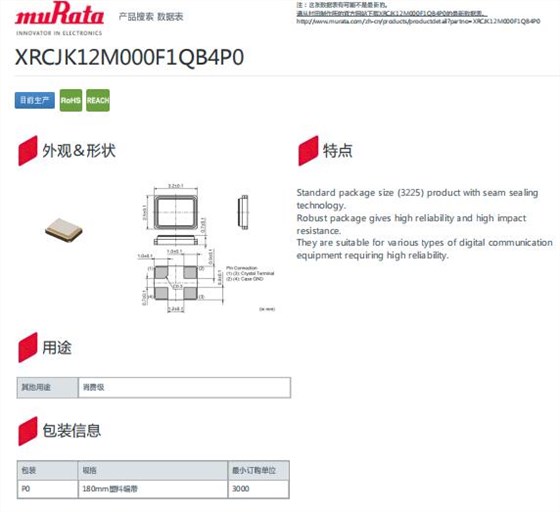

XRCJK12M000F1QB4P0|muRata無源晶振|3225mm|12MHz,TSS-3225J石英貼片晶振,XRCJK12M000F1QB4P0晶振,日本muRata無源晶振,高精度晶振,3225mm晶振,頻率12MHz,負載8pf,工作溫度-30~85°C,低老化晶振,數字通信設備晶振,無線網絡晶振,手持設備晶振.
XRCJK12M000F1QB4P0|muRata無源晶振|3225mm|12MHz 參數
| 型號 | TSS-3225J |
| 頻率 | 12.0000MHz |
| 頻率公差 | ±10ppm max.(25±3℃) |
| 工作溫度范圍 | -30℃ to 85℃ |
| 頻率溫度特性 | ±15ppm max. |
| 頻率老化 | ±3ppm max./year |
| 清洗 | Not available |
| 負載電容量 | 8pF |
| 等效串聯電阻(max.) | 100Ω |
| 驅動電平(max.) | 60μW |
| 形狀 | SMD |
XRCJK12M000F1QB4P0|muRata無源晶振|3225mm|12MHz特性
1.標準包裝尺寸(3225)，產品采用接縫密封技術
2.堅固的封裝保證了高可靠性和高抗沖擊性
3.適用于各種要求高可靠性的數字通信設備

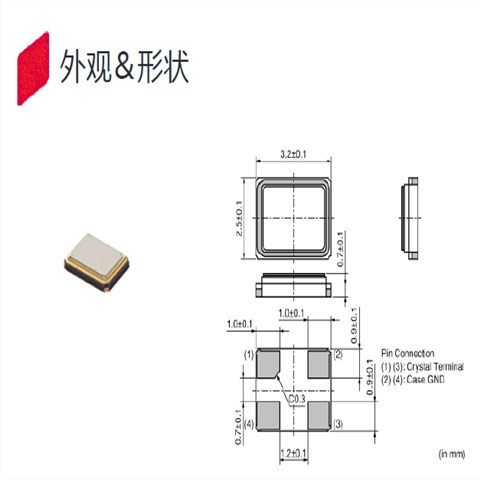

XRCJK12M000F1QB4P0|muRata無源晶振|3225mm|12MHz尺寸圖
| 原廠編碼 | 型號 | 頻率 | 頻率公差 | 頻率溫度特性 | 等效串聯電阻( ) | 負載電容量 | 工作溫度 |
| XRCJK12M000F1QB4P0 | TSS-3225J | 12.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 100Ω | 8pF | -30℃ to 85℃ |
| XRCJK13M000F1QA3P0 | TSS-3225J | 13.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 100Ω | 8pF | -30℃ to 85℃ |
| XRCJK15M360F1QA0P0 | TSS-3225J | 15.3600MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 80Ω | 8pF | -30℃ to 85℃ |
| XRCJK20M000F1QB3P0 | TSS-3225J | 20.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 80Ω | 8pF | -30℃ to 85℃ |
| XRCJK24M576F1QA0P0 | TSS-3225J | 24.5760MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 80Ω | 8pF | -30℃ to 85℃ |
| XRCJK26M000F1QC3P0 | TSS-3225J | 26.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 80Ω | 8pF | -30℃ to 85℃ |
| XRCJK36M000F1QA0P0 | TSS-3225J | 36.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 80Ω | 8pF | -30℃ to 85℃ |
| XRCJK40M000F1QA2P0 | TSS-3225J | 40.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 80Ω | 8pF | -30℃ to 85℃ |
| XRCJK52M000F1QA0P0 | TSS-3225J | 52.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 80Ω | 8pF | -30℃ to 85℃ |
| XRCLK10M000F1QA8J1 | TSS-5032A | 10.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 80Ω | 8pF | -30℃ to 85℃ |
| XRCLK10M000F1QA8P0 | TSS-5032A | 10.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 80Ω | 8pF | -30℃ to 85℃ |
| XRCLK12M000F1QA6J1 | TSS-5032A | 12.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 60Ω | 8pF | -30℃ to 85℃ |
| XRCLK12M000F1QA6P0 | TSS-5032A | 12.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 60Ω | 8pF | -30℃ to 85℃ |
| XRCLK14M745F1QB6J1 | TSS-5032A | 14.7456MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 60Ω | 8pF | -30℃ to 85℃ |
| XRCLK14M745F1QB6P0 | TSS-5032A | 14.7456MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 60Ω | 8pF | -30℃ to 85℃ |
| XRCLK16M000F1QA7J1 | TSS-5032A | 16.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 60Ω | 8pF | -30℃ to 85℃ |
| XRCLK16M000F1QA7P0 | TSS-5032A | 16.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 60Ω | 8pF | -30℃ to 85℃ |
| XRCLK21M250F1QA8J1 | TSS-5032A | 21.2500MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 60Ω | 8pF | -30℃ to 85℃ |
| XRCLK21M250F1QA8P0 | TSS-5032A | 21.2500MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 60Ω | 8pF | -30℃ to 85℃ |
| XRCLK52M000F1QA0J1 | TSS-5032A | 52.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 60Ω | 8pF | -30℃ to 85℃ |
| XRCLK52M000F1QA0P0 | TSS-5032A | 52.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 60Ω | 8pF | -30℃ to 85℃ |
