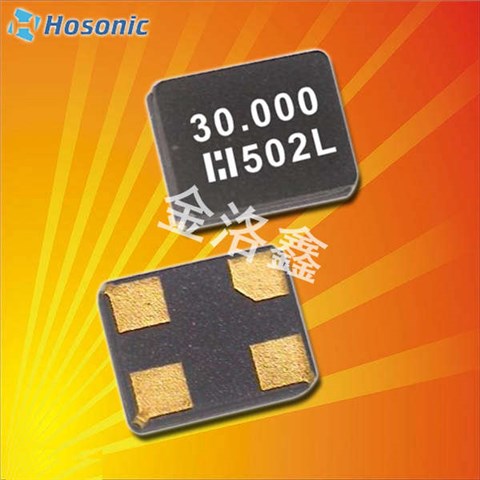

E3FB16.0000F18E33-16MHz-3225mm-臺灣鴻星晶振,E3FB16.0000F18E33晶振,頻率16MHz,負載18pf,工作溫度-20~70°C,3225mm晶振,臺灣鴻星晶振,E3FB小體積晶振,石英晶體諧振器,無源SMD晶振,低老化晶振,便攜式消費產品晶振,無線控制器設備晶振,可穿戴設備晶振,藍牙音響晶振.

E3FB16.0000F18E33-16MHz-3225mm-臺灣鴻星晶振特點

1.非常緊湊和薄(3.2*2.5*0.90mm)

2.頻率范圍為10M至115M，范圍寬廣

3.用于設計空間有限的非射頻應用的通用解決方案，如無線控制器設備和其他便攜式消費產品

4.優異的耐熱性和抗震性

5.無鉛,滿足使用鉛的再流動剖面的要求-無焊

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

E3FB16.0000F18E33-16MHz-3225mm-臺灣鴻星晶振參數

項目	符號	E3FB
頻率	f0	16MHz
振動模式		Fundamental
頻率公差	△f/f0	±30ppm
溫度穩定性	TC	±30ppm
負載電容	CL	18pf
工作溫度	TOPR	－20℃～＋70℃
保存溫度	TSTR	－55℃～＋125℃
串聯阻力	R1	100Ω Max.
驅動級別	DL	200μW Max
老化（第一年）	△f/f0	±2ppm Max.
并聯電容	C0	3pF Typ.
絕緣電阻	IR	500MΩmin. (At 100VDC )

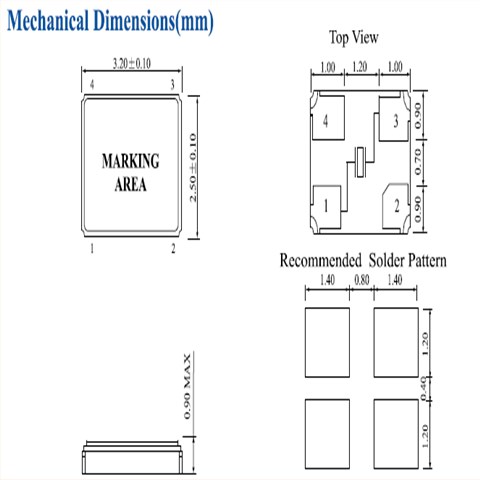

E3FB16.0000F18E33-16MHz-3225mm-臺灣鴻星晶振尺寸圖

原廠編碼	制造廠家	型號	頻率	負載電容	頻率容差	頻率穩定度	尺寸
E3FB16.0000F18E33	Hosonic晶振	E3FB	16MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB17.0000F18E33	Hosonic晶振	E3FB	17MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB18.0000F18E33	Hosonic晶振	E3FB	18MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB19.0000F18E33	Hosonic晶振	E3FB	19MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB20.0000F18E33	Hosonic晶振	E3FB	20MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB21.0000F18E33	Hosonic晶振	E3FB	21MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB22.0000F18E33	Hosonic晶振	E3FB	22MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB23.0000F18E33	Hosonic晶振	E3FB	23MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB24.0000F18E33	Hosonic晶振	E3FB	24MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB25.0000F18E33	Hosonic晶振	E3FB	25MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB26.0000F18E33	Hosonic晶振	E3FB	26MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB27.0000F18E33	Hosonic晶振	E3FB	27MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB28.0000F18E33	Hosonic晶振	E3FB	28MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB29.0000F18E33	Hosonic晶振	E3FB	29MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB30.0000F18E33	Hosonic晶振	E3FB	30MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB31.0000F18E33	Hosonic晶振	E3FB	31MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB32.0000F18E33	Hosonic晶振	E3FB	32MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB33.0000F18E33	Hosonic晶振	E3FB	33MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB34.0000F18E33	Hosonic晶振	E3FB	34MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB35.0000F18E33	Hosonic晶振	E3FB	35MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB36.0000F18E33	Hosonic晶振	E3FB	36MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB37.0000F18E33	Hosonic晶振	E3FB	37MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB38.0000F18E33	Hosonic晶振	E3FB	38MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB39.0000F18E33	Hosonic晶振	E3FB	39MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB40.0000F18E33	Hosonic晶振	E3FB	40MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB41.0000F18E33	Hosonic晶振	E3FB	41MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB42.0000F18E33	Hosonic晶振	E3FB	42MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB43.0000F18E33	Hosonic晶振	E3FB	43MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB44.0000F18E33	Hosonic晶振	E3FB	44MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB45.0000F18E33	Hosonic晶振	E3FB	45MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB46.0000F18E33	Hosonic晶振	E3FB	46MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB47.0000F18E33	Hosonic晶振	E3FB	47MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB48.0000F18E33	Hosonic晶振	E3FB	48MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB49.0000F18E33	Hosonic晶振	E3FB	49MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB50.0000F18E33	Hosonic晶振	E3FB	50MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB51.0000F18E33	Hosonic晶振	E3FB	51MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB52.0000F18E33	Hosonic晶振	E3FB	52MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB53.0000F18E33	Hosonic晶振	E3FB	53MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB54.0000F18E33	Hosonic晶振	E3FB	54MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB55.0000F18E33	Hosonic晶振	E3FB	55MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB56.0000F18E33	Hosonic晶振	E3FB	56MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB57.0000F18E33	Hosonic晶振	E3FB	57MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB58.0000F18E33	Hosonic晶振	E3FB	58MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB59.0000F18E33	Hosonic晶振	E3FB	59MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB60.0000F18E33	Hosonic晶振	E3FB	60MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB61.0000F18E33	Hosonic晶振	E3FB	61MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB62.0000F18E33	Hosonic晶振	E3FB	62MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB63.0000F18E33	Hosonic晶振	E3FB	63MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB64.0000F18E33	Hosonic晶振	E3FB	64MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB65.0000F18E33	Hosonic晶振	E3FB	65MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB66.0000F18E33	Hosonic晶振	E3FB	66MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
