當前位置：首頁 » 貼片晶振 » CTS晶振 » 403C11A32M00000-3225mm-10ppm-32M-10pf

prevnext

403C11A32M00000-3225mm-10ppm-32M-10pf

頻率：32MHz

尺寸：3.2mm x 2.5mm

403C11A32M00000-3225mm-10ppm-32M-10pf,403C11A32M00000,美國西迪斯晶振,3225mm石英晶振,精度10ppm,頻率32M,負載10pf,SMD進口晶振,無源晶振,無線路由器晶振,藍牙音響晶振,筆記本電腦晶振,便攜式設備晶振.

訂購熱線：0755-27837162

403C11A32M00000-3225mm-10ppm-32M-10pf 特征

1.標準3.2mm x 2.5mm焊縫封裝基本晶體設計

2.頻率范圍10 - 60MHz, 頻率公差 ±30ppm標準, 頻率穩定性 ±30ppm標準 ,工作溫度-40°C~+85°C

3.膠帶和卷軸包裝標準, EIA-481 符合RoHS/綠色標準

4.402型是一種低成本的石英諧振器,廣泛用于商業應用,包括WLAN/WiMax/WiFi, A/V，藍牙，ZigBee和USB接口,筆記本電腦,電腦外圍設備,便攜式設備。

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

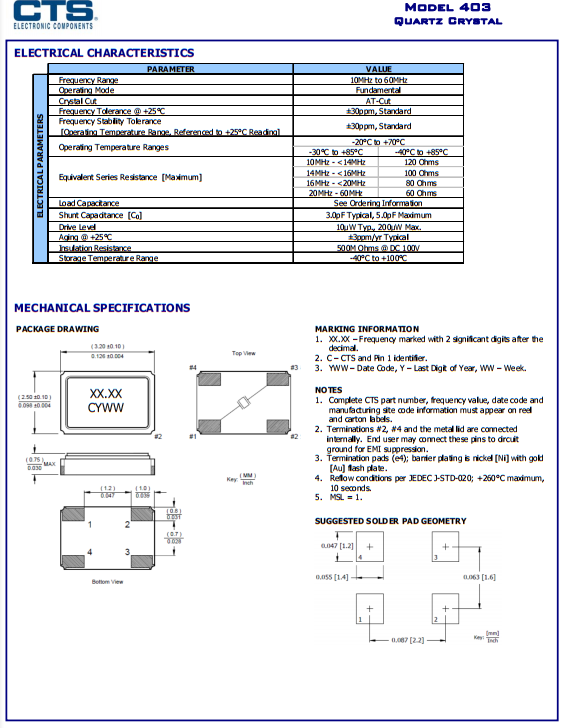

403C11A32M00000-3225mm-10ppm-32M-10pf參數

項目			數值
頻率			32MHz
操作模式			Fundamental
晶體切割			AT-Cut
工作溫度			-20°C to +70°C
保存溫度			-40°C to +100°C
頻率公差 @ +25°C			± 30PPM
工作溫度范圍內的頻率穩定性 ( ref. to +25°C)			± 30PPM
等效串聯電阻(R1)			60 Ω
并聯電容 (C0)			3.0pF Typical, 5.0pF Maximum
負載電容 (CL)			10 pF
激勵功率			200 μW Max
老化 @ +25°C			±3ppm/yr Typical
絕緣電阻			500M Ohms @ DC 100V

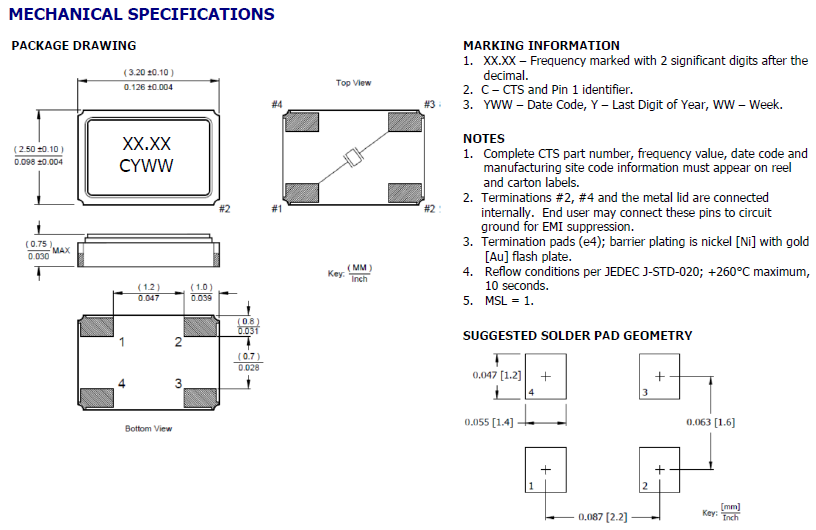

403C11A32M00000-3225mm-10ppm-32M-10pf尺寸圖

原廠編碼	生產廠家	型號	頻率	頻率穩定度	頻率偏差	負載電容	ESR電阻	工作溫度
403C11A32M00000	CTS 晶振	403	32MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
403C35D25M00000	CTS 晶振	403	25MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35D12M00000	CTS 晶振	403	12MHz	±50ppm	±30ppm	18pF	150 Ohm	-20°C ~ 70°C
403C35D24M00000	CTS 晶振	403	24MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35E13M00000	CTS 晶振	403	13MHz	±50ppm	±30ppm	20pF	150 Ohm	-20°C ~ 70°C
403C35E27M00000	CTS 晶振	403	27MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
403C11A16M00000	CTS 晶振	403	16MHz	±10ppm	±10ppm	10pF	80 Ohm	-20°C ~ 70°C
403C11A24M00000	CTS 晶振	403	24MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
403C11A16M80000	CTS 晶振	403	16.8MHz	±10ppm	±10ppm	10pF	80 Ohm	-20°C ~ 70°C
403C35D22M11840	CTS 晶振	403	22.1184MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35D28M37500	CTS 晶振	403	28.375MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35D28M63636	CTS 晶振	403	28.63636MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35E12M00000	CTS 晶振	403	12MHz	±50ppm	±30ppm	20pF	150 Ohm	-20°C ~ 70°C
403C23E26M69000	CTS 晶振	403	26.69MHz	±30ppm	±20ppm	20pF	60 Ohm	-20°C ~ 70°C
403C35E16M00000	CTS 晶振	403	16MHz	±50ppm	±30ppm	20pF	80 Ohm	-20°C ~ 70°C
403I35D12M00000	CTS 晶振	403	12MHz	±50ppm	±30ppm	18pF	150 Ohm	-40°C ~ 85°C
403I35D16M00000	CTS 晶振	403	16MHz	±50ppm	±30ppm	18pF	80 Ohm	-40°C ~ 85°C
403I35D24M00000	CTS 晶振	403	24MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
403I35D30M00000	CTS 晶振	403	30MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
403I35E16M00000	CTS 晶振	403	16MHz	±50ppm	±30ppm	20pF	80 Ohm	-40°C ~ 85°C
403I35E26M00000	CTS 晶振	403	26MHz	±50ppm	±30ppm	20pF	60 Ohm	-40°C ~ 85°C
403C11E32M00000	CTS 晶振	403	32MHz	±10ppm	±10ppm	20pF	60 Ohm	-20°C ~ 70°C
403C35D27M00000	CTS 晶振	403	27MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35D27M00000	CTS 晶振	403	27MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35D27M00000	CTS 晶振	403	27MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35E26M00000	CTS 晶振	403	26MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
403C35E26M00000	CTS 晶振	403	26MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
403C35E26M00000	CTS 晶振	403	26MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
403C35D48M00000	CTS 晶振	403	48MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35D48M00000	CTS 晶振	403	48MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35D48M00000	CTS 晶振	403	48MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35D20M00000	CTS 晶振	403	20MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35D20M00000	CTS 晶振	403	20MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35D20M00000	CTS 晶振	403	20MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C11E16M00000	CTS 晶振	403	16MHz	±10ppm	±10ppm	20pF	80 Ohm	-20°C ~ 70°C
403C11E16M00000	CTS 晶振	403	16MHz	±10ppm	±10ppm	20pF	80 Ohm	-20°C ~ 70°C
403C11E16M00000	CTS 晶振	403	16MHz	±10ppm	±10ppm	20pF	80 Ohm	-20°C ~ 70°C
403C11A40M00000	CTS 晶振	403	40MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
403C11A40M00000	CTS 晶振	403	40MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
403C11A40M00000	CTS 晶振	403	40MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
403C35D30M00000	CTS 晶振	403	30MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35D30M00000	CTS 晶振	403	30MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C35D30M00000	CTS 晶振	403	30MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
403C11A20M00000	CTS 晶振	403	20MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
403C11A20M00000	CTS 晶振	403	20MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
403C11A20M00000	CTS 晶振	403	20MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
403I35D27M00000	CTS 晶振	403	27MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
403I35D27M00000	CTS 晶振	403	27MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
403I35D27M00000	CTS 晶振	403	27MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
403I35D18M43200	CTS 晶振	403	18.432MHz	±50ppm	±30ppm	18pF	80 Ohm	-40°C ~ 85°C
403I35D18M43200	CTS 晶振	403	18.432MHz	±50ppm	±30ppm	18pF	80 Ohm	-40°C ~ 85°C
403I35D18M43200	CTS 晶振	403	18.432MHz	±50ppm	±30ppm	18pF	80 Ohm	-40°C ~ 85°C
403I35D20M00000	CTS 晶振	403	20MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
403I35D20M00000	CTS 晶振	403	20MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
403I35D20M00000	CTS 晶振	403	20MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
