TYETBLSANF-38.400000,TCXO晶振,智能手機晶振,2520四腳貼片晶振

頻率：38.4 MHz

尺寸：2.50mm x 2.00mm

TYETBLSANF-38.400000,TCXO晶振,智能手機晶振,2520四腳貼片晶振,針對智能手機對通信信號穩定性的嚴苛要求,TYETBLSANF-38.400000晶振憑借TCXO技術,將頻率穩定度控制在±0.5ppm(典型值),有效抵消不同使用環境下的溫度波動(支持-30℃~+85℃寬溫域),確保5G/4G信號接收與傳輸?shù)倪B貫性.2520四腳貼片封裝不僅簡化了主板焊接工藝,還提升了元件與電路板的連接穩定性,適配主流智能手機的射頻模塊與基帶芯片,為高清通話,高速數據傳輸提供可靠頻率基準.

訂購熱線：0755-27837162

TYETBLSANF-38.400000,TCXO晶振,智能手機晶振,2520四腳貼片晶振

作為專為智能手機研發的高精度頻率元件,TYETBLSANF-38.400000搭載TCXO(溫補晶體振蕩器)技術,以38.400000MHz精準頻率為核心,可實時補償溫度變化對頻率的影響,確保手機通信,定位,多媒體播放等功能的時鐘信號穩定.其采用2520四腳貼片封裝,體積小巧(2.5mm×2.0mm),能靈活適配智能手機緊湊的主板布局,同時低功耗設計滿足手機續航需求,是保障智能手機應用晶振高效運行的關鍵時鐘組件.

JLX-2

TYETBLSANF-38.400000,TCXO晶振,智能手機晶振,2520四腳貼片晶振

原廠型號 Originalmodel：	TYETBLSANF-38.400000	品牌brand：	Taitien泰藝晶振
Manufacturer品牌	Taitien	OperatingTemperature溫度	-40°C ~ 85°C
Series型號	TY	Current-Supply(Max)	2.5mA
Type類型	TCXO	PackageHeight高度	0.80mm
Frequency頻率	38.4 MHz	Termination 腳位	4pad
輸出方式 Output：	Clipped Sine Wave	PackageType 封裝類型	4-SMD
Voltage-Supply電壓	2.8V ~ 3.3V	Packaging 包裝	TapeandReel
FrequencyStability頻率穩定度	±1ppm	安裝方式 Installation：	Surfacemount
Size/Dimension尺寸	2520微型貼片晶振	最小包裝數MPQ：	3000

JLX-3

TYETBLSANF-38.400000,TCXO晶振,智能手機晶振,2520四腳貼片晶振

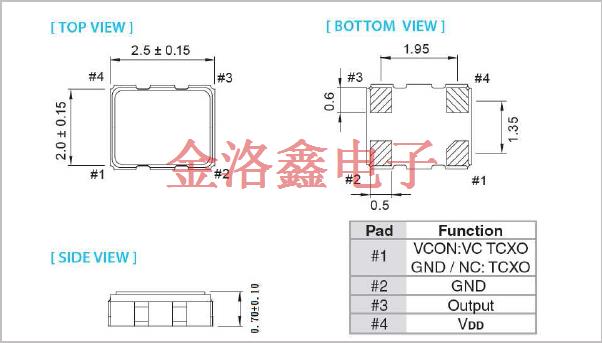

TY 2520

TYETBLSANF-38.400000,TCXO晶振,智能手機晶振,2520四腳貼片晶振

OCETGCJTNF-48.000000	Taitien	OC	XO (Standard)	48 MHz	CMOS	3.3V	±50ppm	-20°C ~ 70°C
OXETDCJANF-0.032768	Taitien	OX	XO (Standard)	32.768 kHz	CMOS	3.3V	±25ppm	-20°C ~ 70°C
OCETDLJANF-25.000000	Taitien	OC	XO (Standard)	25 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
TZKTADSANF-26.000000	Taitien	TZ	TCXO	26 MHz	Clipped Sine Wave	1.8V	±500ppb	-30°C ~ 85°C
TXEABLSANF-24.000000	Taitien	TX	VCTCXO	24 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXEABLSANF-26.000000	Taitien	TX	VCTCXO	26 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXKTPCSANF-32.000000	Taitien	TX	TCXO	32 MHz	Clipped Sine Wave	1.8V	±1.5ppm	-20°C ~ 70°C
TXEAADSANF-20.000000	Taitien	TX	VCTCXO	20 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-30°C ~ 85°C
TXETALSANF-10.000000	Taitien	TX	TCXO	10 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-40°C ~ 85°C
TYETBCSANF-32.000000	Taitien	TY	TCXO	32 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-20°C ~ 70°C
TYETBLSANF-40.000000	Taitien	TY	TCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TYEAPLSANF-40.000000	Taitien	TY	VCTCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1.5ppm	-40°C ~ 85°C
TYETACSANF-26.000000	Taitien	TY	TCXO	26 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-20°C ~ 70°C
TYEAACSANF-38.400000	Taitien	TY	VCTCXO	38.4 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-20°C ~ 70°C
VLCUWCWTNF-100.000000	Taitien	VLCU	VCXO	100 MHz	Sine Wave	5V	±35ppm	-20°C ~ 70°C
TSEAALJANF-10.000000	Taitien	TS	VCTCXO	10 MHz	CMOS	3.3V	±500ppb	-40°C ~ 85°C
TWETALJANF-40.000000	Taitien	TW	TCXO	40 MHz	CMOS	3.3V	±500ppb	-40°C ~ 85°C
TWEAKLJANF-20.000000	Taitien	TW	VCTCXO	20 MHz	CMOS	3.3V	±280ppb	-40°C ~ 85°C
TTETKLJANF-10.000000	Taitien	TT	TCXO	10 MHz	CMOS	3.3V	±280ppb	-40°C ~ 85°C
TTEAKLJANF-10.000000	Taitien	TT	VCTCXO	10 MHz	CMOS	3.3V	±280ppb	-40°C ~ 85°C
TTETKLSANF-10.000000	Taitien	TT	TCXO	10 MHz	Clipped Sine Wave	3.3V	±280ppb	-40°C ~ 85°C
TSEATLJANF-10.000000	Taitien	TS	VCTCXO	10 MHz	CMOS	3.3V	±4.6ppm	-40°C ~ 85°C
TWETMCJANF-10.000000	Taitien	TW	TCXO	10 MHz	CMOS	3.3V	±100ppb	-20°C ~ 70°C
TTEAALJANF-50.000000	Taitien	TT	VCTCXO	50 MHz	CMOS	3.3V	±500ppb	-40°C ~ 85°C
NNENCLJNNF-10.000000	Taitien	NN	OCXO	10 MHz	CMOS	3.3V	±20ppb	-40°C ~ 85°C
NI-10M-2400	Taitien	NI-10M-2400	OCXO	10 MHz	LVTTL	5V	±3ppb	-30°C ~ 70°C
NI-10M-2403	Taitien	NI-10M-2400	OCXO	10 MHz	LVTTL	5V	±3ppb	-40°C ~ 85°C
NI-10M-2503	Taitien	NI-10M-2500	OCXO	10 MHz	Sine Wave	5V	±3ppb	-40°C ~ 85°C
NI-100M-2900	Taitien	NI-100M-2900	OCXO	100 MHz	Sine Wave	12V	±50ppb	-40°C ~ 85°C
NA-100M-6822	Taitien	NA-100M-6800	OCXO	100 MHz	Sine Wave	12V	±100ppb	-40°C ~ 85°C
OCKTGLJANF-0.032768	Taitien	OC	XO (Standard)	32.768 kHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
OCETGLJTNF-100.000000	Taitien	OC	XO (Standard)	100 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
TXETCLSANF-40.000000	Taitien	TX	TCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2ppm	-40°C ~ 85°C
TXETDDSANF-16.000000	Taitien	TX	TCXO	16 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2.5ppm	-30°C ~ 85°C
TXETDCSANF-20.000000	Taitien	TX	TCXO	20 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2.5ppm	-20°C ~ 70°C
TXETBLSANF-40.000000	Taitien	TX	TCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXEABDSANF-32.000000	Taitien	TX	VCTCXO	32 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-30°C ~ 85°C
TXETDDSANF-30.000000	Taitien	TX	TCXO	30 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2.5ppm	-30°C ~ 85°C
TXETBLSANF-26.000000	Taitien	TX	TCXO	26 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXEAPDSANF-19.200000	Taitien	TX	VCTCXO	19.2 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1.5ppm	-30°C ~ 85°C
TXEAPLSANF-40.000000	Taitien	TX	VCTCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1.5ppm	-40°C ~ 85°C
TXEACDSANF-26.000000	Taitien	TX	VCTCXO	26 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2ppm	-30°C ~ 85°C
TXEACDSANF-20.000000	Taitien	TX	VCTCXO	20 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2ppm	-30°C ~ 85°C
TXETBLSANF-27.000000	Taitien	TX	TCXO	27 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXETBLSANF-19.200000	Taitien	TX	TCXO	19.2 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXETALSANF-26.000000	Taitien	TX	TCXO	26 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-40°C ~ 85°C
TXEAACSANF-40.000000	Taitien	TX	VCTCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-20°C ~ 70°C
TXEAADSANF-25.000000	Taitien	TX	VCTCXO	25 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-30°C ~ 85°C
TYETBLSANF-38.400000	Taitien	TY	TCXO	38.4 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TYETBCSANF-50.000000	Taitien	TY	TCXO	50 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-20°C ~ 70°C
TYETACSANF-32.000000	Taitien	TY	TCXO	32 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-20°C ~ 70°C
TYETACSANF-20.000000	Taitien	TY	TCXO	20 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-20°C ~ 70°C
PYEUCJJANF-100.000000	Taitien	FASTXO	XO (Standard)	100 MHz	CMOS	2.8V ~ 3.3V	±20ppm	-40°C ~ 105°C
TWEAALSANF-10.000000	Taitien	TW	VCTCXO	10 MHz	Clipped Sine Wave	3.3V	±500ppb	-40°C ~ 85°C
TTETKLJANF-30.720000	Taitien	TT	TCXO	30.72 MHz	CMOS	3.3V	±280ppb	-40°C ~ 85°C
TTEAMCSANF-10.000000	Taitien	TT	VCTCXO	10 MHz	Clipped Sine Wave	3.3V	±100ppb	-20°C ~ 70°C
OYKTGLJANF-0.032768	Taitien	OY	XO (Standard)	32.768 kHz	CMOS	1.8V	±50ppm	-40°C ~ 85°C
OYETDLJANF-25.000000	Taitien	OY	XO	25 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
TXETDDSANF-19.200000	Taitien	TX	TCXO	19.2 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2.5ppm	-30°C ~ 85°C
TXETCLSANF-25.000000	Taitien	TX	TCXO	25 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2ppm	-40°C ~ 85°C
