Silicon品牌,530FB125M000DG,6G網絡終端晶振
頻率：125MHz
尺寸：7.0mm x 5.0mm
Silicon品牌,530FB125M000DG,6G網絡終端晶振,Silicon晶振,Si530石英振蕩器,差分晶振,530FB125M000DG晶振,有源晶振,六腳貼片晶振,7050mm晶振,SMD晶振,LVDS輸出晶振,頻率125MHz,電壓2.5V,頻率偏差20ppm,工作溫度-40~85°C,高可靠性晶振,低相位抖動晶振,低老化晶振,6G網絡終端晶振,時鐘數據恢復晶振,高清視頻設備晶振,測試和測量設備晶振.
訂購熱線：0755-27837162
Silicon品牌,530FB125M000DG,6G網絡終端晶振,Silicon晶振,Si530石英振蕩器,差分晶振,530FB125M000DG晶振,有源晶振,六腳貼片晶振,7050mm晶振,SMD晶振,LVDS輸出晶振,頻率125MHz,電壓2.5V,頻率偏差20ppm,工作溫度-40~85°C,高可靠性晶振,低相位抖動晶振,低老化晶振,6G網絡終端晶振,時鐘數據恢復晶振,高清視頻設備晶振,測試和測量設備晶振.

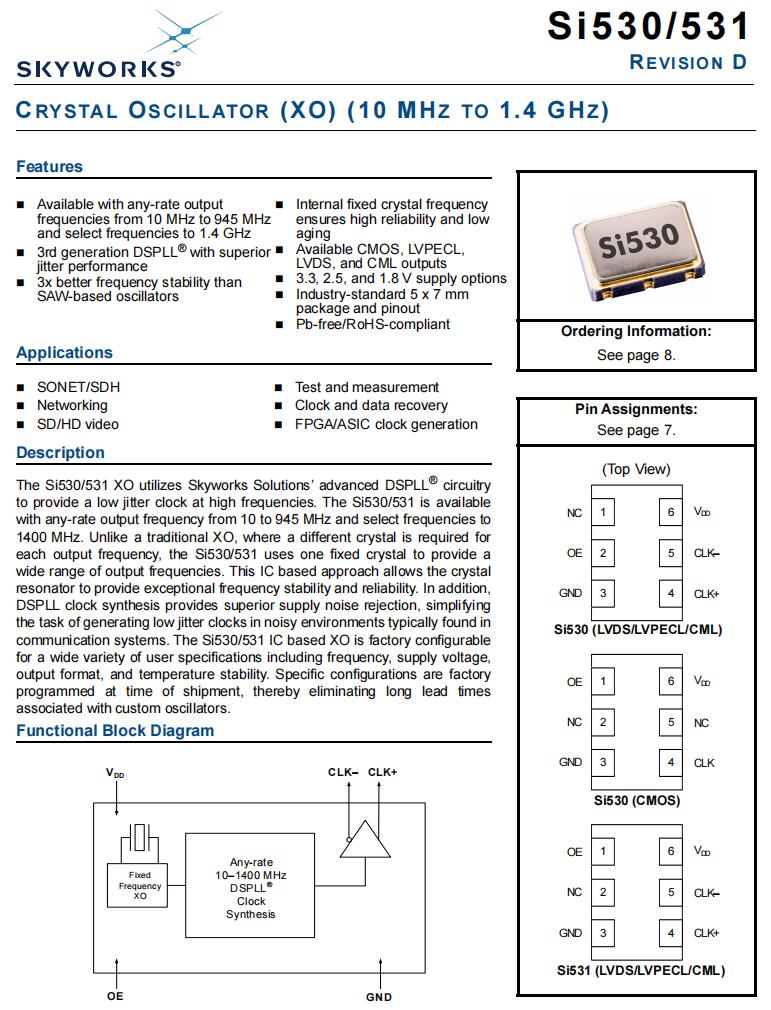

Silicon品牌,530FB125M000DG,6G網絡終端晶振特點：
-支持10MHz ~ 945MHz的任意頻率和選擇頻率到1.4GHz
-第三代DSPLL®具有優越的抖動性能
-頻率穩定性優于SAW-based振蕩器
-內部固定晶頻，可靠性高，老化率低
-3.3、2.5或1.8 V供電選項
-具備CMOS, LVPECL，LVDS和CML輸出
-行業標準的5 × 7 mm封裝和引腳
-無鉛，符合RoHS標準
Silicon品牌,530FB125M000DG,6G網絡終端晶振規格表
項目
符號
規格說明
條件
額定頻率
f_nom
125MHz
請聯系我們以便獲取其它可用頻率的相關信息
電源電壓
Vcc
2.5V
儲存溫度
T_stg
-55℃~+125℃
裸存
工作溫度
T_use
-40℃~ +85℃
頻率穩定性
f_tol
±20ppm
+25℃,超出標準的規格說明請聯系我們以便獲取相關信息
電源電流
IDD
98mA Max
LVDS
對稱性（占空比）
SYM
45%~55%
在輸出交叉點
LVDS輸出選項
VO
1.275V Max
mid-level
VOD
0.9Vpp Max
swing (diff)
輸入電壓
VIH
0.75×VDD Min
VIL
0.5V Max
上升下降時間
tr/tf
350ps Max
LVDS
起始時間
t str
10ms Max
相位抖動
tpj
0.42ps Max
50 kHz to 80 MHz

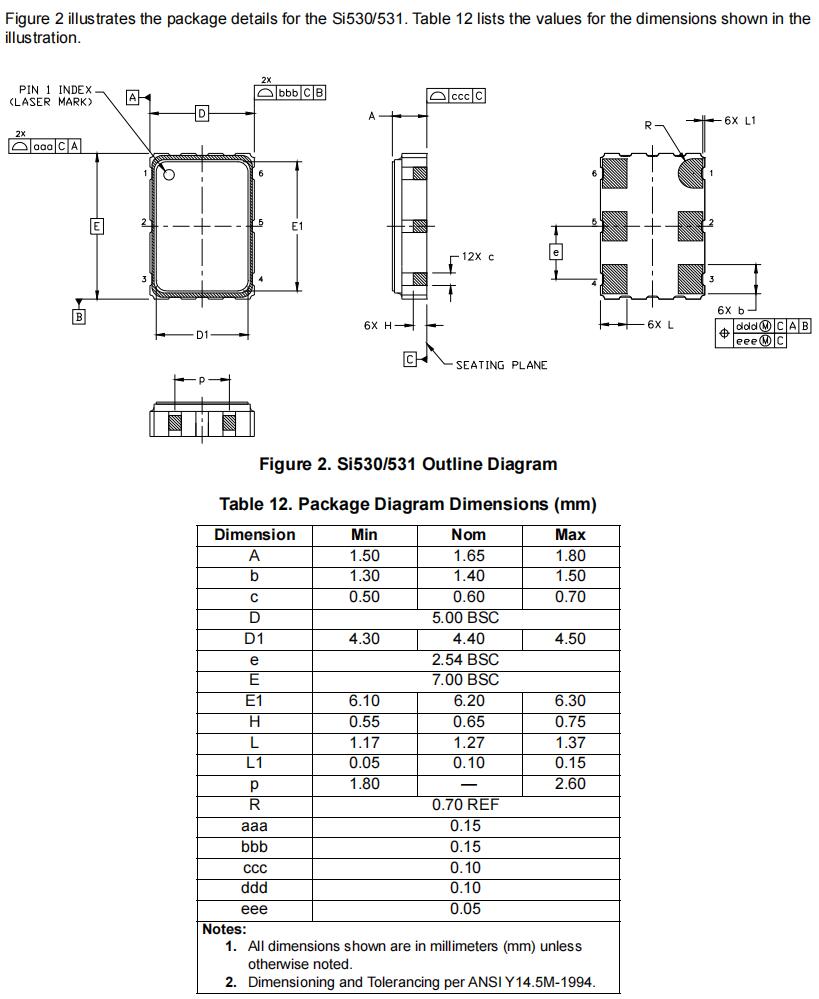

Silicon品牌,530FB125M000DG,6G網絡終端晶振尺寸圖
