XO振蕩器511ABA100M000BAGR提供了優越的電源噪聲抑制

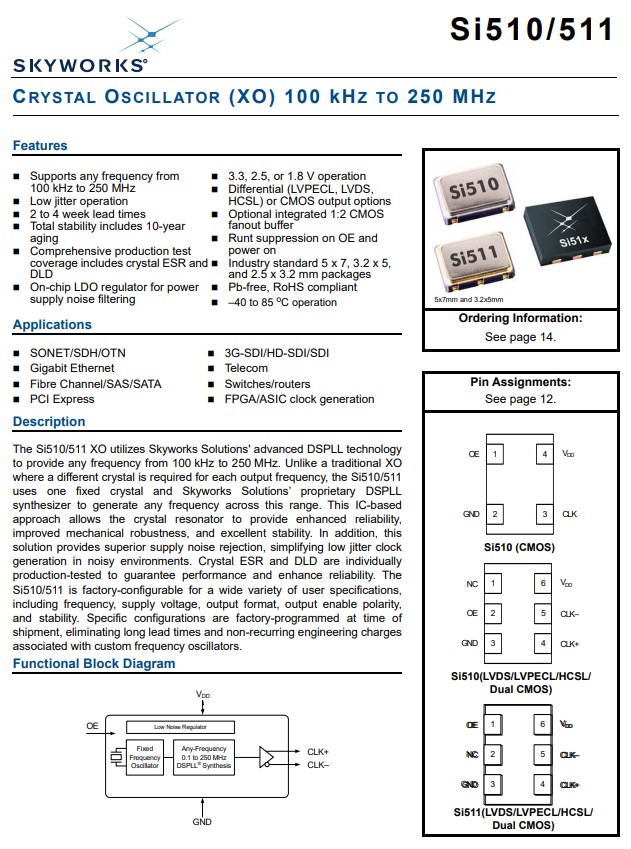

Silicon晶振Si511 XO利用天空解決方案的先進DSPLL技術，六腳貼片晶振提供從100kHz到250MHz的任何頻率。與傳統的XO不同，每個輸出頻率需要不同的晶體，Si511使用一個固定晶體和天空解決方案的專有DSPLL合成器來產生這個范圍內的任何頻率。這種基于集成電路的方法允許晶體諧振器提供增強的可靠性，改進的機械魯棒性和優異的穩定性。此外，該解決方案提供了優越的電源噪聲抑制，簡化了在噪聲環境下的低抖動時鐘產生。水晶ESR和DLD分別進行了生產測試，以保證性能和提高可靠性。石英振蕩器Si511可在工廠中進行配置，適合各種用戶規格，包括頻率、電源電壓、輸出格式、輸出啟用極性和穩定性。特定的配置是在裝運時由工廠編程的，消除了與定制頻率振蕩器相關的長交貨時間和非重復的工程費用。XO振蕩器511ABA100M000BAGR提供了優越的電源噪聲抑制
XO振蕩器511ABA100M000BAGR提供了優越的電源噪聲抑制，Si511支持多種選項，包括頻率、穩定性、輸出格式和VDD。特定的設備配置在裝運時被編程到Si511中。可以使用下面的零件號配置圖進行配置。Skyworks解決方案提供了一個基于web瀏覽器的部件號配置實用程序，以簡化這個過程。
| 原廠代碼 | 貼片晶振廠家 | 型號 | 頻率 | 電壓 | 頻率穩定度 | 包裝/封裝 |
| 511ABA156M250AAG | Silicon晶振 | Si511 | 156.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA100M000AAG | Silicon晶振 | Si511 | 100MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA25M0000BAG | Silicon晶振 | Si511 | 25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA156M250BAG | Silicon晶振 | Si511 | 156.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA156M250AAGR | Silicon晶振 | Si511 | 156.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA155M520AAG | Silicon晶振 | Si511 | 155.52MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA106M250BAG | Silicon晶振 | Si511 | 106.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA000149BAG | Silicon晶振 | Si511 | 74.175824MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA74M2500AAG | Silicon晶振 | Si511 | 74.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA000149AAG | Silicon晶振 | Si511 | 74.175824MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA000110BAG | Silicon晶振 | Si511 | 148.35165MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA148M500BAG | Silicon晶振 | Si511 | 148.5MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA155M520BAG | Silicon晶振 | Si511 | 155.52MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA148M500AAG | Silicon晶振 | Si511 | 148.5MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA200M000BAG | Silicon晶振 | Si511 | 200MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA212M500AAG | Silicon晶振 | Si511 | 212.5MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA125M000BAG | Silicon晶振 | Si511 | 125MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA100M000BAG | Silicon晶振 | Si511 | 100MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA74M2500BAG | Silicon晶振 | Si511 | 74.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA106M250AAG | Silicon晶振 | Si511 | 106.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA000110AAG | Silicon晶振 | Si511 | 148.35165MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA212M500BAG | Silicon晶振 | Si511 | 212.5MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA200M000AAG | Silicon晶振 | Si511 | 200MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA100M000BAGR | 有源晶振 | Si511 | 100MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA125M000BAGR | Silicon晶振 | Si511 | 125MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA106M250BAGR | Silicon晶振 | Si511 | 106.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA000149BAGR | Silicon晶振 | Si511 | 74.175824MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA74M2500BAGR | Silicon晶振 | Si511 | 74.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA100M000AAGR | Silicon晶振 | Si511 | 100MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA125M000AAGR | Silicon晶振 | Si511 | 125MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA106M250AAGR | Silicon晶振 | Si511 | 106.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA000149AAGR | Silicon晶振 | Si511 | 74.175824MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA74M2500AAGR | Silicon晶振 | Si511 | 74.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA156M250BAGR | Silicon晶振 | Si511 | 156.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA155M520BAGR | Silicon晶振 | Si511 | 155.52MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA000110BAGR | Silicon晶振 | Si511 | 148.35165MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA148M500BAGR | Silicon晶振 | Si511 | 148.5MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA155M520AAGR | Silicon晶振 | Si511 | 155.52MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA000110AAGR | Silicon晶振 | Si511 | 148.35165MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA148M500AAGR | Silicon晶振 | Si511 | 148.5MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA25M0000BAGR | Silicon晶振 | Si511 | 25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA125M000AAG | Silicon晶振 | Si511 | 125MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA200M000BAGR | Silicon晶振 | Si511 | 200MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA212M500BAGR | Silicon晶振 | Si511 | 212.5MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA200M000AAGR | Silicon晶振 | Si511 | 200MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA212M500AAGR | Silicon晶振 | Si511 | 212.5MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 511ABA25M0000AAG | Silicon晶振 | Si511 | 25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
應用于：SONET/SDH/OTN，千兆以太網，光纖通道/SAS/SATA，PCI快遞，3 G-SDI/HD-SDI/SDI，電信，交換機/路由器，FPGA/ASIC時鐘生成
