ConnorWinfield旗下CWX8xx系列型號是質量的最佳保證
ConnorWinfield晶振的功能是為系統提供基本的時鐘信號，通常一個系統共用一個晶振，便于各部分保持同步。有些通訊系統的基頻和射頻使用不同的晶振，不同的規格封裝延伸很多的頻點等不同的參數，而通過電子調整頻率的方法保持同步，在我們日常生活中也離不開貼片晶振.時鐘振蕩器是利用了晶體的壓電效應制造的,當在晶片的兩面上加交變電壓時，晶片會反復的機械變形而產生振動，而這種機械振動又會反過來產生交變電壓。

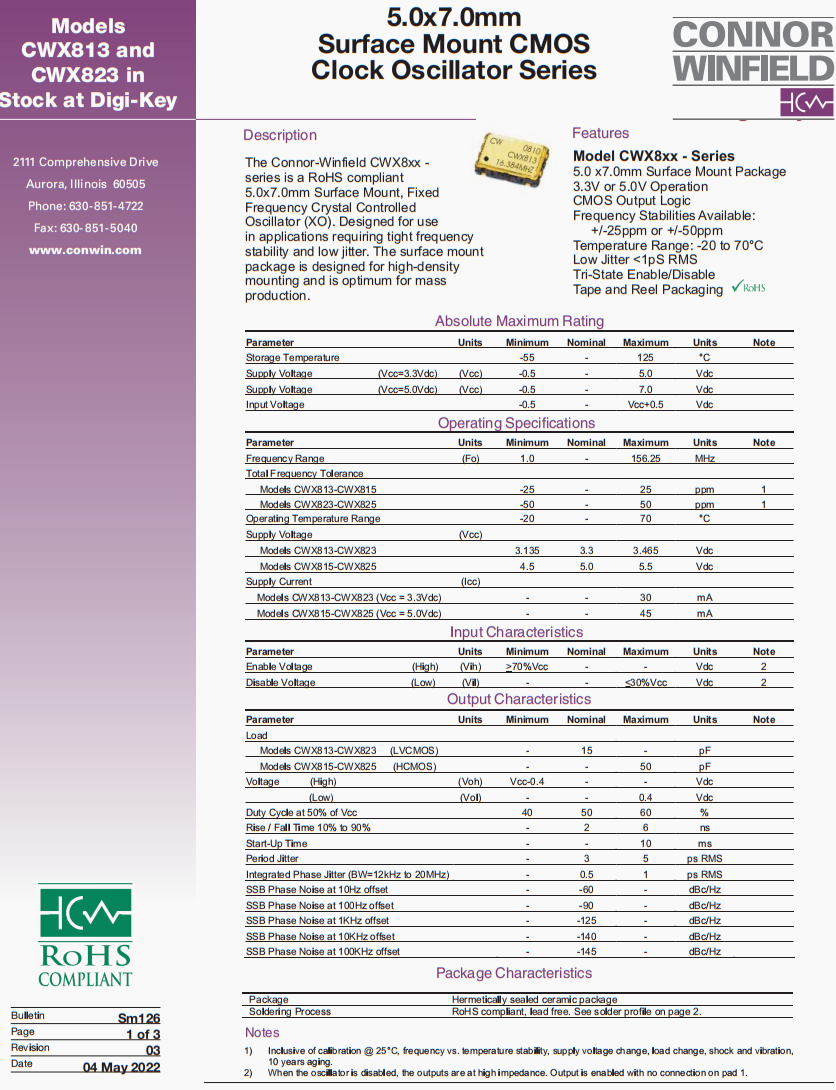

ConnorWinfield康納溫菲爾德CWX8xx系列型號，CWX813晶振，是一款小體積晶振尺寸5.0x7.0mm毫米表面貼裝，SMD晶振，有源晶振，石英晶體振蕩器(XO)。為使用而設計在要求嚴格頻率的應用中，穩定性和低抖動。表面貼裝CMOS時鐘振蕩器系列，封裝設計用于高密度安裝，是質量的最佳選擇生產。符合RoHS標準 3.3V或5.0V工作電壓，有源晶振CMOS輸出邏輯，可用的頻率穩定性: 低抖動< 1pS RMS 三態使能/禁用，膠帶和卷軸包裝 +/-25ppm或+/-50ppm，溫度范圍:-20至70攝氏度，被廣泛用于通訊設備，無線網絡，藍牙模塊，汽車電子，GPS定位系統，導航儀，醫療設備，數碼電子，物聯網等應用。
| 編碼 | 生產商 | 型號 | 類型 | 頻率 | 輸出 | 電壓 |
| CWX823-012.0M | Connor Winfield | CWX823 | XO (Standard) | 12 MHz | LVCMOS | 3.3V |
| CWX823-050.0M | Connor Winfield | CWX823 | XO (Standard) | 50 MHz | LVCMOS | 3.3V |
| CWX823-033.0M | Connor Winfield | CWX823 | XO (Standard) | 33 MHz | LVCMOS | 3.3V |
| CWX823-012.288M | Connor Winfield | CWX823 | XO (Standard) | 12.288 MHz | LVCMOS | 3.3V |
| CWX813-040.0M | Connor Winfield | CWX813 | XO (Standard) | 40 MHz | LVCMOS | 3.3V |
| CWX813-025.0M | Connor Winfield | CWX813 | XO (Standard) | 25 MHz | LVCMOS | 3.3V |
| CWX813-010.0M | Connor Winfield | CWX813 | XO (Standard) | 10 MHz | LVCMOS | 3.3V |
| CWX813-024.576M | Connor Winfield | CWX813 | XO (Standard) | 24.576 MHz | LVCMOS | 3.3V |
| CWX813-050.0M | Connor Winfield | CWX813 | XO (Standard) | 50 MHz | LVCMOS | 3.3V |
| CWX823-125.0M | Connor Winfield | CWX823 | XO (Standard) | 125 MHz | LVCMOS | 3.3V |
| CWX813-100.0M | Connor Winfield | CWX813 | XO (Standard) | 100 MHz | LVCMOS | 3.3V |
| CWX813-080.0M | Connor Winfield | CWX813 | XO (Standard) | 80 MHz | LVCMOS | 3.3V |
| D32G-016.368M | Connor Winfield | D32G | TCXO | 16.368 MHz | Clipped Sine Wave | 3.3V |
| PB223-156.25M | Connor Winfield | PB | XO (Standard) | 156.25 MHz | LVPECL | 3.3V |
| TJ5F-050.0M | Connor Winfield | TJ5F | TCXO | 50 MHz | LVCMOS | 3.3V |
| TJ5F-040.0M | Connor Winfield | TJ5F | TCXO | 40 MHz | LVCMOS | 3.3V |
| TVJ6F-010.0M | Connor Winfield | DV75D | TCXO | 10 MHz | LVCMOS | 3.3V |
| TVJ6F-020.0M | Connor Winfield | DV75D | TCXO | 20 MHz | LVCMOS | 3.3V |
| TVJ6F-012.8M | Connor Winfield | DV75D | TCXO | 12.8 MHz | LVCMOS | 3.3V |
| D53G-020.0M | Connor Winfield | D53G | TCXO | 20 MHz | Clipped Sine Wave | 3.3V |
| TJ5E-025.0M | Connor Winfield | TJ5E | TCXO | 25 MHz | LVCMOS | 3.3V |
| TJ5E-027.0M | Connor Winfield | TJ5E | TCXO | 27 MHz | LVCMOS | 3.3V |
| P123-125.0M | Connor Winfield | P | XO (Standard) | 125 MHz | LVPECL | 3.3V |
| D75A-010.0M | Connor Winfield | D75A | TCXO | 10 MHz | LVCMOS | 3.3V |
| DV75C-010.0M | Connor Winfield | DV75C | TCXO | 10 MHz | LVCMOS | 3.3V |
| P223-100.0M | Connor Winfield | P | XO (Standard) | 100 MHz | LVPECL | 3.3V |
| TJ6F-020.0M | Connor Winfield | TJ6 | TCXO | 20 MHz | LVCMOS | 3.3V |
| P213-100.0M | Connor Winfield | P | XO (Standard) | 100 MHz | LVPECL | 3.3V |
| P213-156.25M | Connor Winfield | P | XO (Standard) | 156.25 MHz | LVPECL | 3.3V |
| T602-019.2M | Connor Winfield | T602 | TCXO | 19.2 MHz | LVCMOS | 3.3V |
| T602-030.72M | Connor Winfield | T602 | TCXO | 30.72 MHz | LVCMOS | 3.3V |
| T604-010.0M | Connor Winfield | T605 | VCTCXO | 10 MHz | LVCMOS | 3.3V |
| TB602-050.0M | Connor Winfield | TB | TCXO | 50 MHz | LVCMOS | 3.3V |
| T602-040.0M | Connor Winfield | T602 | TCXO | 40 MHz | LVCMOS | 3.3V |
| T604-040.0M | Connor Winfield | T605 | VCTCXO | 40 MHz | LVCMOS | 3.3V |
| M100V-020.0M | Connor Winfield | M100 | VCTCXO | 20 MHz | LVCMOS | 3.3V |
| M100V-010.0M | Connor Winfield | M100 | VCTCXO | 10 MHz | LVCMOS | 3.3V |
| M100F-020.0M | Connor Winfield | M100 | TCXO | 20 MHz | LVCMOS | 3.3V |
| DOT050F-010.0M | Connor Winfield | DOT050F | TCXO | 10 MHz | LVCMOS | 3.3V |
| DOCSC022F-030.72M | Connor Winfield | DOCSC | OCXO | 30.72 MHz | LVCMOS | 3.3V |
| DOCSC012F-025.0M | Connor Winfield | DOCSC | OCXO | 25 MHz | LVCMOS | 3.3V |
| OH100-61003CF-010.0M | Connor Winfield | OH100 | OCXO | 10 MHz | CMOS | 3.3V |
| OH100-61003CF-020.0M | Connor Winfield | OH100 | OCXO | 20 MHz | CMOS | 3.3V |
| OH300-61003CV-010.0M | Connor Winfield | OH300 | VCOCXO | 10 MHz | CMOS | 3.3V |
| OH300-50503CV-010.0M | Connor Winfield | OH300 | VCOCXO | 10 MHz | CMOS | 3.3V |
| OH300-50503CF-010.0M | Connor Winfield | OH300 | OCXO | 10 MHz | CMOS | 3.3V |
| OH300-50503CF-050.0M | Connor Winfield | OH300 | OCXO | 50 MHz | CMOS | 3.3V |
| OD100LP-81212SV-100.0M | Connor Winfield | OD100LP | VCOCXO | 100 MHz | Sine Wave | 12V |
| CWX823-024.0M | Connor Winfield | CWX823 | XO (Standard) | 24 MHz | LVCMOS | 3.3V |
| CWX823-008.0M | Connor Winfield | CWX823 | XO (Standard) | 8 MHz | LVCMOS | 3.3V |
| CWX823-027.0M | Connor Winfield | CWX823 | XO (Standard) | 27 MHz | LVCMOS | 3.3V |
| CWX813-012.288M | Connor Winfield | CWX813 | XO (Standard) | 12.288 MHz | LVCMOS | 3.3V |
| CWX813-024.0M | Connor Winfield | CWX813 | XO (Standard) | 24 MHz | LVCMOS | 3.3V |
| CWX823-100.0M | Connor Winfield | CWX823 | XO (Standard) | 100 MHz | LVCMOS | 3.3V |
| CWX823-064.0M | Connor Winfield | CWX823 | XO (Standard) | 64 MHz | LVCMOS | 3.3V |
| D32G-026.0M | Connor Winfield | D32G | TCXO | 26 MHz | Clipped Sine Wave | 3.3V |
| D32G-019.2M | Connor Winfield | D32G | TCXO | 19.2 MHz | Clipped Sine Wave | 3.3V |
| B31-038.4M | Connor Winfield | B31 | TCXO | 38.4 MHz | Clipped Sine Wave | 3.3V |
| B31-025.0M | Connor Winfield | B31 | TCXO | 25 MHz | Clipped Sine Wave | 3.3V |
| P122-125.0M | Connor Winfield | P | XO (Standard) | 125 MHz | LVPECL | 2.5V |
| LM113-200.0M | Connor Winfield | LM113 | XO (Standard) | 200 MHz | LVDS | 3.3V |
| VBLD861-100.0M | Connor Winfield | VBLD861 | VCXO | 100 MHz | LVCMOS | 3.3V |
| P212-156.25M | Connor Winfield | P | XO (Standard) | 156.25 MHz | LVPECL | 2.5V |
| T602-020.0M | Connor Winfield | T602 | TCXO | 20 MHz | LVCMOS | 3.3V |
| T200F-050.0M | Connor Winfield | T200 | TCXO | 50 MHz | LVCMOS | 3.3V |
| DOT050V-010.0M | Connor Winfield | DOT050V | VCTCXO | 10 MHz | LVCMOS | 3.3V |
| OH100-50503CF-010.0M | Connor Winfield | OH100 | OCXO | 10 MHz | CMOS | 3.3V |
| OH100-61003CV-010.0M | Connor Winfield | OH100 | VCOCXO | 10 MHz | CMOS | 3.3V |
| OH300-61003CF-050.0M | Connor Winfield | OH300 | OCXO | 50 MHz | CMOS | 3.3V |
| DGOF5S3-020.0M | Connor Winfield | DGOF | OCXO | 20 MHz | HCMOS, TTL | 5V |
| OX200-SC-010.0M | Connor Winfield | OX200-SC | VCOCXO | 10 MHz | LVCMOS | 12V |
| OD100LP-61005CV-010.0M | Connor Winfield | OD100LP | VCOCXO | 10 MHz | CMOS | 5V |
| OD100LP-61012SV-010.0M | Connor Winfield | OD100LP | VCOCXO | 10 MHz | Sine Wave | 12V |
| CWX823-025.0M | Connor Winfield | CWX823 | XO (Standard) | 25 MHz | LVCMOS | 3.3V |
| CWX823-032.768M | Connor Winfield | CWX823 | XO (Standard) | 32.768 MHz | LVCMOS | 3.3V |
| CWX813-033.0M | Connor Winfield | CWX813 | XO (Standard) | 33 MHz | LVCMOS | 3.3V |
| CWX813-060.0M | Connor Winfield | CWX813 | XO (Standard) | 60 MHz | LVCMOS | 3.3V |
| CWX813-001.8432M | Connor Winfield | CWX813 | XO (Standard) | 1.8432 MHz | LVCMOS | 3.3V |
| CWX813-004.0M | Connor Winfield | CWX813 | XO (Standard) | 4 MHz | LVCMOS | 3.3V |
| CWX813-016.384M | Connor Winfield | CWX813 | XO (Standard) | 16.384 MHz | LVCMOS | 3.3V |
| CWX813-019.44M | Connor Winfield | CWX813 | XO (Standard) | 19.44 MHz | LVCMOS | 3.3V |
| HSM613-024.576M | Connor Winfield | HSM6 | XO (Standard) | 24.576 MHz | HCMOS | 3.3V |
| HSM613-125.0M | Connor Winfield | HSM6 | XO (Standard) | 125 MHz | HCMOS | 3.3V |
| CWX813-029.4912M | Connor Winfield | CWX813 | XO (Standard) | 29.4912 MHz | LVCMOS | 3.3V |
| CWX813-066.6666M | Connor Winfield | CWX813 | XO (Standard) | 66.6666 MHz | LVCMOS | 3.3V |
| CWX823-156.25M | Connor Winfield | CWX823 | XO (Standard) | 156.25 MHz | LVCMOS | 3.3V |
| VKB61B2-010.0M | Connor Winfield | VKB | VCXO | 10 MHz | LVCMOS | 3.3V |
| B31-040.0M | Connor Winfield | B31 | TCXO | 40 MHz | Clipped Sine Wave | 3.3V |
