X1G0042610008差分晶振編碼是哪家的?

來源：金洛鑫瀏覽：- 發布日期：2018-12-07 15:59:04【大中小】

分享到：

標題給大家賣了個神秘關子，不過也不難猜是什么品牌的，很多人看到這條編碼，應該大部分內行人都能看出這是愛普生晶振的原廠編碼，但是要具體說出是什么型號的，屬于哪個類型，代表哪些參數，估計國內很少或者沒有可以全部分辨出來的。廢話不多說了，接下來就為廣大新老客戶，分析一下這條X1G0042610008晶振編碼。愛普生集團旗下的晶振型號有幾百種，而且分類齊全，32.768K晶振，MHZ石英晶振，插件晶振，SPXO晶體振蕩器，溫補晶振，壓控晶振，恒溫晶振，差分晶振，壓控溫補晶振，可編程晶振等都有生產。

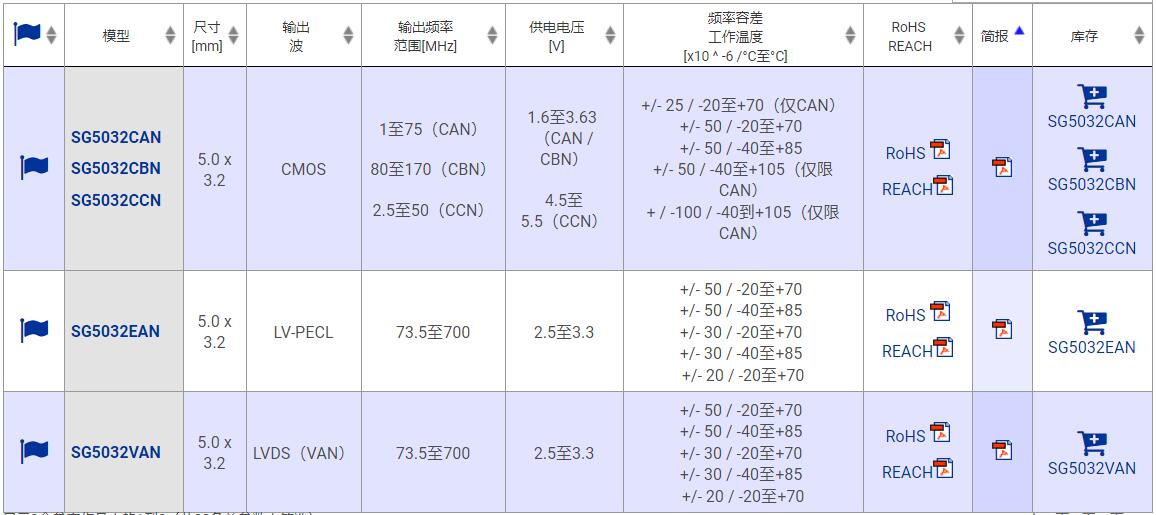

差分晶振是近幾年業內公認的，未來發展比較有潛力的晶振類型，X1G0042610008就是愛普生差分晶振的原廠編碼，型號是SG5032VAN晶振，輸出方式是LVDS，LV-PECL兩種，是輸出差分信號的，所以也可以叫做差分晶振。

X1G0042610008差分晶振系列編碼：

差分晶振原廠編碼	型號	頻率	尺寸	輸出	工作溫度
X1G0042610001	SG5032VAN	100.000000MHz	5.00x3.20x1.20mm	LVDS	-40to85°C
X1G0042610002	SG5032VAN	125.000000MHz	5.00x3.20x1.20mm	LVDS	-40to85°C
X1G0042610003	SG5032VAN	125.006250MHz	5.00x3.20x1.20mm	LVDS	-40to85°C
X1G0042610005	SG5032VAN	200.000000MHz	5.00x3.20x1.20mm	LVDS	-40to85°C
X1G0042610006	SG5032VAN	156.250000MHz	5.00x3.20x1.20mm	LVDS	-40to85°C
X1G0042610007	SG5032VAN	400.000000MHz	5.00x3.20x1.20mm	LVDS	-40to85°C
X1G0042610008	SG5032VAN	106.250000MHz	5.00x3.20x1.20mm	LVDS	-40to85°C
X1G0042610009	SG5032VAN	212.500000MHz	5.00x3.20x1.20mm	LVDS	-40to85°C
X1G0042610010	SG5032VAN	74.250000MHz	5.00x3.20x1.20mm	LVDS	-40to85°C
X1G0042610011	SG5032VAN	148.500000MHz	5.00x3.20x1.20mm	LVDS	-40to85°C
X1G0042710021	SG5032EAN	125.006250MHz	5.00x3.20x1.20mm	LV-PECL	-40to85°C
X1G0042710023	SG5032EAN	100.000000MHz	5.00x3.20x1.20mm	LV-PECL	-40to85°C
X1G0042710024	SG5032EAN	200.000000MHz	5.00x3.20x1.20mm	LV-PECL	-40to85°C
X1G0042710025	SG5032EAN	400.000000MHz	5.00x3.20x1.20mm	LV-PECL	-40to85°C
X1G0042710026	SG5032EAN	106.250000MHz	5.00x3.20x1.20mm	LV-PECL	-40to85°C
X1G0042710027	SG5032EAN	212.500000MHz	5.00x3.20x1.20mm	LV-PECL	-40to85°C
X1G0042710028	SG5032EAN	74.250000MHz	5.00x3.20x1.20mm	LV-PECL	-40to85°C
X1G0042710029	SG5032EAN	148.500000MHz	5.00x3.20x1.20mm	LV-PECL	-40to85°C
X1G0042710030	SG5032EAN	75.000000MHz	5.00x3.20x1.20mm	LV-PECL	-40to85°C
X1G0042710031	SG5032EAN	150.000000MHz	5.00x3.20x1.20mm	LV-PECL	-40to85°C
X1G0042710032	SG5032EAN	155.520000MHz	5.00x3.20x1.20mm	LV-PECL	-40to85°C
X1G0042710033	SG5032EAN	156.250000MHz	5.00x3.20x1.20mm	LV-PECL	-40to85°C
X1G0042710034	SG5032EAN	312.500000MHz	5.00x3.20x1.20mm	LV-PECL	-40to85°C
X1G0042710035	SG5032EAN	312.515625MHz	5.00x3.20x1.20mm	LV-PECL	-40to85°C
X1G0042710036	SG5032EAN	161.132800MHz	5.00x3.20x1.20mm	LV-PECL	-40to85°C
X1G0042710038	SG5032EAN	700.000000MHz	5.00x3.20x1.20mm	LV-PECL	-40to85°C
X1G0042710039	SG5032EAN	125.000000MHz	5.00x3.20x1.20mm	LV-PECL	-20to70°C
X1G0042710040	SG5032EAN	125.006250MHz	5.00x3.20x1.20mm	LV-PECL	-20to70°C
X1G0042710042	SG5032EAN	100.000000MHz	5.00x3.20x1.20mm	LV-PECL	-20to70°C
X1G0042710043	SG5032EAN	200.000000MHz	5.00x3.20x1.20mm	LV-PECL	-20to70°C
X1G0042710044	SG5032EAN	400.000000MHz	5.00x3.20x1.20mm	LV-PECL	-20to70°C
X1G0042710045	SG5032EAN	106.250000MHz	5.00x3.20x1.20mm	LV-PECL	-20to70°C
X1G0042710046	SG5032EAN	212.500000MHz	5.00x3.20x1.20mm	LV-PECL	-20to70°C
X1G0042710047	SG5032EAN	74.250000MHz	5.00x3.20x1.20mm	LV-PECL	-20to70°C
