CMOS輸出晶體振蕩器X1G004471000400適用于移動通訊設備
為了更好的幫助客戶選型使用，愛普生晶振都有一個對應其參數的編碼料號，通過EPSON晶振編碼就可以大概知道是什么型號參數。很多晶振的編碼涵蓋品牌，型號，頻率，精度，負載/電壓，溫度，阻抗等信息。愛普生的晶振編碼無源晶振系列MHZ所采用的前三個字均為“X1E”表示，而KHZ系列則是“X1A”表示，愛普生有源晶振則是用的“X1G”所表示的。這樣看來就可以知道這款晶振編碼是有源還是無源系列.

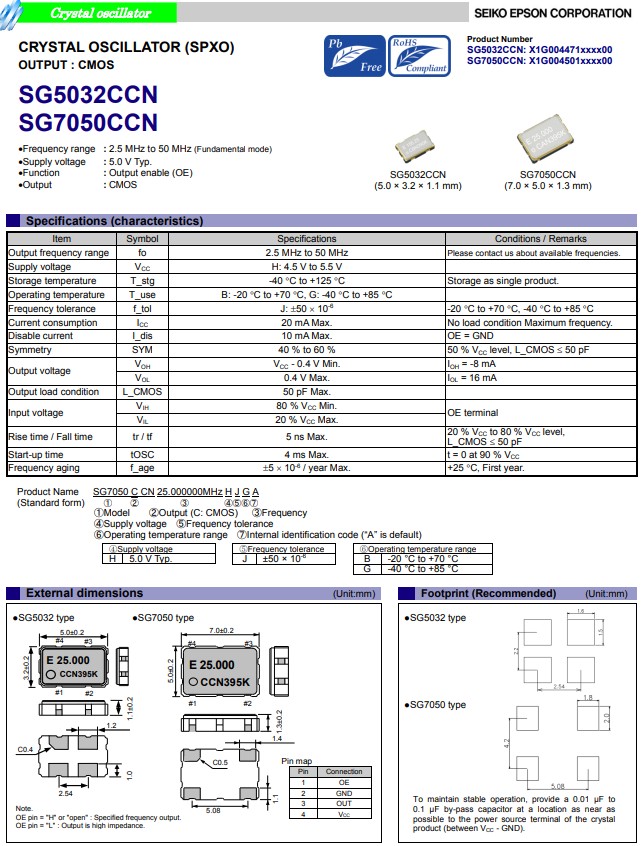

愛普生晶振SG5032CCN是一款CMOS輸出晶體振蕩器，小體積尺寸5.0x3.2mm四腳貼片晶振，有源晶振，電源電壓4.5V至5.5V，頻率范圍2.5MHz至50MHz。具有超小型，輕薄型，低抖動，低功耗，高性能，高品質等特點，其中原廠編碼X1G004471000400，頻率20.000MHz，頻率公差:±50ppm晶振，是愛普生常規有源晶振中的熱銷型號之一，可以在-40℃至+85℃的溫度內穩定工作。SG5032CCN晶振被廣泛用于移動通訊，汽車電子，醫療設備，智能家居，GPS定位器，安防設備，數碼電子等。
CMOS輸出晶體振蕩器X1G004471000400適用于移動通訊設備
| 產品編碼 |
   型號
|
   頻率
|
   貼片晶振
|
   輸出波
|
   電源電壓
|
   工作溫度
|
| X1G004471000300 | SG5032CCN | 32.000000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471000400 | SG5032CCN | 20.000000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471000500 | SG5032CCN | 8.000000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471000600 | SG5032CCN | 16.000000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471000700 | SG5032CCN | 25.000000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471000800 | SG5032CCN | 40.000000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471000900 | SG5032CCN | 48.000000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471001000 | SG5032CCN | 7.372800MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471001100 | SG5032CCN | 10.000000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471001200 | SG5032CCN | 6.000000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471001300 | SG5032CCN | 10.700000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471001400 | SG5032CCN | 5.500000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471001500 | SG5032CCN | 18.432000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471001600 | SG5032CCN | 11.059200MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471001700 | SG5032CCN | 12.288000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471001800 | SG5032CCN | 14.745600MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471001900 | SG5032CCN | 18.432000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471002000 | SG5032CCN | 24.000000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471002100 | SG5032CCN | 24.576000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471002200 | SG5032CCN | 27.000000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471002300 | SG5032CCN | 29.491200MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471002400 | SG5032CCN | 3.276800MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471002500 | SG5032CCN | 3.579545MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471002600 | SG5032CCN | 3.686400MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471002700 | SG5032CCN | 4.000000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471002800 | SG5032CCN | 4.096000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471002900 | SG5032CCN | 4.915200MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471003100 | SG5032CCN | 33.330000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471003200 | SG5032CCN | 25.160000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471003300 | SG5032CCN | 4.608000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471003400 | SG5032CCN | 12.000000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471003500 | SG5032CCN | 16.700000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471003600 | SG5032CCN | 16.200000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471003700 | SG5032CCN | 6.050000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471003800 | SG5032CCN | 5.450000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471003900 | SG5032CCN | 5.550000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471004000 | SG5032CCN | 5.950000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471004100 | SG5032CCN | 11.289600MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471004200 | SG5032CCN | 2.500000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
| X1G004471004300 | SG5032CCN | 7.175000MHz | 5.00x3.20x1.30mm | CMOS | 4.500 to 5.500 V | -40 to 85 °C |
CMOS輸出晶體振蕩器X1G004471000400適用于移動通訊設備
晶振特點和屬性：
1. 按形狀區分晶振有SMD（貼片晶振）和DIP（插件晶振）兩種。貼片晶振價格跟插件晶振相對比下，貼片晶振價格貴些。
2. 按頻率區分貼片晶振有MHZ和KHZ。MHZ常用封裝的有SMD2016、SMD2520、SMD3225、SMD5032、SMD6035、SMD7050。而KHZ最常用的頻率32.768KHZ；在手機和藍牙應用的晶振頻率有：12MHZ，16MHZ，24 MHZ，26 MHZ，32 MHZ貼片晶振配套使用。
3. 按性能區分貼片晶振分為：有源晶振（石英晶體振蕩器、溫補振蕩器、壓控振蕩器、壓控溫補振蕩器）和無源晶振（石英晶體諧振器、陶瓷晶振）。
4. 按材質區分貼片晶振分為金屬封裝和陶瓷封裝。
