TG2520SMN溫補晶振X1G005421030427適用于智能手機移動支付功能

來源：金洛鑫瀏覽：- 發布日期：2022-09-22 16:40:26【大中小】

分享到：

在中國不帶錢包出門成為了中國人的一種習慣，只要有手機便可以隨時隨地完成支付，正應了廣大網友的心聲，“以后再也不會在地上撿到錢了”.
近年來，中國最大的變化之一就是移動支付的迅速普及，主要為兩大巨頭的較量“微信”“支付寶”.即是馬云和馬化騰之間的較量.這兩位馬家人是現在中國的傳奇人物。微信和支付寶為了搶占市場各顯神通，祭出微信鼓勵金，支付寶掃碼紅包等營銷手段。移動支付的出現可以說的是讓全球都為之震驚的。有的更是長途跋涉的想來體驗一把移動支付感覺。

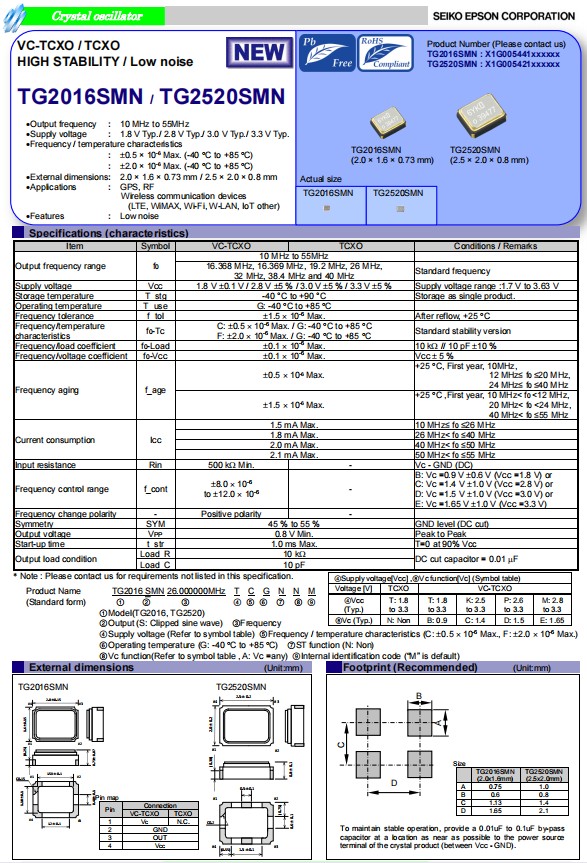

愛普生晶振TG2520SMN是一款小體積尺寸2.5x2.0mm溫補晶振，四腳貼片晶振，有源晶振，電源電壓1.8V至3.3V，頻率范圍10MHz至55MHz，TG2520SMN有源晶振具有超小型，輕薄型，低電源電壓，低抖動，低功耗，低損耗，低耗能，高精度，高性能等特點，被廣泛用于移動通訊，無線藍牙，小型便捷攜帶式，智能手機，汽車電子，GPS導航，無線路由器，智能穿戴等電子產品領域。

TG2520SMN溫補晶振X1G005421030427適用于智能手機移動支付功能

產品編碼	型號	頻率	貼片晶振	輸出波	電源電壓	精度	工作溫度
X1G005421002927	TG2520SMN	19.200000MHz	2.50x2.00x0.80mm	Clippedsinewave	3.135 to 3.465V	+/-2.0ppm	40 to +85°C
X1G005421003027	TG2520SMN	12.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	3.135 to 3.465V	+/-2.0ppm	30 to +85°C
X1G005421003727	TG2520SMN	16.384000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	40 to +85°C
X1G005421003827	TG2520SMN	16.384000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.260 to 3.465V	+/-1.5ppm	40 to +85°C
X1G005421020127	TG2520SMN	16.368000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005421020227	TG2520SMN	16.369000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005421020327	TG2520SMN	19.200000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005421020427	TG2520SMN	26.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005421020527	TG2520SMN	32.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005421020627	TG2520SMN	38.400000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005421020727	TG2520SMN	40.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005421020827	TG2520SMN	16.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005421021127	TG2520SMN	20.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005421021227	TG2520SMN	24.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005421021327	TG2520SMN	25.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005421021427	TG2520SMN	27.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005421021527	TG2520SMN	30.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005421021627	TG2520SMN	48.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005421022027	TG2520SMN	52.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C

X1G005421022127	TG2520SMN	27.600000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005421022227	TG2520SMN	50.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm	-40 to +85°C
X1G005421030127	TG2520SMN	16.368000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005421030227	TG2520SMN	16.369000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005421030327	TG2520SMN	19.200000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005421030427	TG2520SMN	26.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005421030527	TG2520SMN	32.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005421030627	TG2520SMN	38.400000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005421030727	TG2520SMN	40.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005421030827	TG2520SMN	16.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005421031127	TG2520SMN	20.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005421031227	TG2520SMN	24.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005421031327	TG2520SMN	25.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005421031427	TG2520SMN	27.000000MHz	2.50x2.00x0.80mm	溫補晶振	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005421031527	TG2520SMN	30.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005421031627	TG2520SMN	48.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005421032027	TG2520SMN	52.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005421032127	TG2520SMN	27.600000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005421032227	TG2520SMN	50.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V	+/-1.5ppm	-40 to +85°C
X1G005421032427	TG2520SMN	10.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.260 to 3.465V	+/-1.5ppm	40 to +85°C

TG2520SMN溫補晶振X1G005421030427適用于智能手機移動支付功能

愛普生晶振TG2520SMN，頻率26.000MHz，+/- 1.5ppm晶振編碼X1G005421030427，工作溫度-40℃至+85℃，適用于智能移動支付功能，使手機正常使用，給主板CPU提供精準信號，可以在惡劣環境下正常工作，GPS導航更準確，接受信號更快捷。

也許很多消費者并不會因?yàn)橐苿?dòng)支付功能而去購買智能手表，但在智能手環、兒童手表、輕運動手表等特定產品中，移動支付是一個很不錯的功能，會有很強的市場需求。運動愛好者在跑步等運動時不帶手機，智能手表/手環可以替代手機進行移動支付；在中國兒童人群中，兒童手表已然成為了他們的“手機”，家長可以設置零花錢讓孩子使用。
