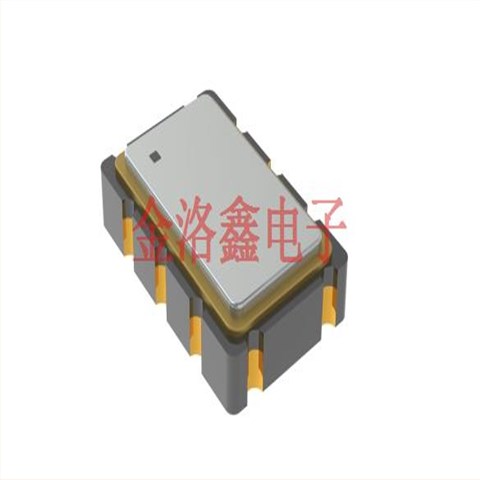

NX3231D0156.250000,專業視頻設備晶振,3225石英晶振,LVDS晶體振蕩器
針對專業視頻設備對低噪聲時鐘的需求，NX3231D0156.250000 采用 LVDS 晶體振蕩器設計，通過差分信號傳輸特性，將相位噪聲控制在極低水平（典型值 - 150dBc/Hz@10kHz 偏移），避免時鐘信號干擾視頻信號處理鏈路。在多設備協同工作的視頻系統（如演播室集群設備）中，LVDS 輸出的抗干擾能力可確保多臺設備時鐘同步，減少設備間信號延遲，保障視頻畫面的流暢切換與同步輸出，提升專業視頻系統的整體穩定性。
NX3231D0156.250000,專業視頻設備晶振,3225石英晶振,LVDS晶體振蕩器
| 原廠型號Originalmodel： | NX3231D0156.250000 | 品牌brand： | DIODES |
| Manufacturer品牌 | DIODES百利通有源晶振 | OperatingTemperature溫度 | -40°C ~ 85°C |
| Series型號 | NX | Current-Supply(Max) | 70mA |
| Type類型 | XO (Standard) | PackageHeight高度 | 1.05mm |
| Frequency頻率 | 156.25 MHz | Termination腳位 | 6pad |
| 輸出方式Output： | LVDS | PackageType封裝類型 | 6-SMD |
| Voltage-Supply電壓 | 3.3V | Packaging包裝 | TapeandReel |
| FrequencyStability頻率穩定度 | ±25ppm | 安裝方式Installation： | Surfacemount |

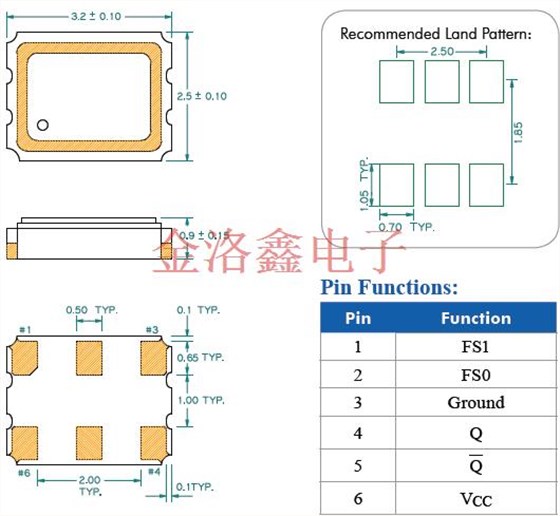

| Size/Dimension尺寸 | 3.20mm x 2.50mm | 最小包裝數MPQ： | 3000 |
NX3231D0156.250000,專業視頻設備晶振,3225石英晶振,LVDS晶體振蕩器
NX3231D0156.250000,專業視頻設備晶振,3225石英晶振,LVDS晶體振蕩器
| KK3270049 | 百利通有源晶振 | KK | XO (Standard) | 32.768 kHz | CMOS | 1.8V | ±50ppm | -40°C ~ 85°C |
| NX5427001Z | 百利通有源晶振 | NX | XO (Standard) | 27 MHz | HCSL | 3.3V | ±25ppm | -40°C ~ 85°C |
| UX34F6203Z | 百利通有源晶振 | UX | XO (Standard) | 156.25 MHz | HCSL | 3.3V | ±50ppm | -40°C ~ 105°C |
| FK2500025 | 百利通有源晶振 | FK | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| UJWIFI026 | 百利通有源晶振 | UJ | XO (Standard) | 26 MHz | Clipped Sine Wave | 1.8V | ±20ppm | -30°C ~ 85°C |
| FNEPON125 | 百利通有源晶振 | ASSP XO | XO (Standard) | 125 MHz | CMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
| HX3150003Q | 百利通有源晶振 | HX | XO (Standard) | 50 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 125°C |
| HX21A0001Z | 百利通有源晶振 | HX | XO (Standard) | 100 MHz | LVCMOS | 1.8V ~ 3.3V | ±25ppm | -40°C ~ 105°C |
| UX54F62001 | 百利通有源晶振 | UX | XO (Standard) | 156.25 MHz | HCSL | 3.3V | ±50ppm | -40°C ~ 85°C |
| FK2500065Z | 百利通有源晶振 | FK | XO (Standard) | 25 MHz | CMOS | 1.8V | ±25ppm | -40°C ~ 85°C |
| FK5000056Q | 百利通有源晶振 | FK | XO (Standard) | 50 MHz | CMOS | 1.8V | ±25ppm | -40°C ~ 85°C |
| KK3270021 | 百利通有源晶振 | KK | XO (Standard) | 32.768 kHz | CMOS | 3.3V | - | -20°C ~ 70°C |
| KD3270037 | 百利通有源晶振 | KD | XO (Standard) | 32.768 kHz | LVCMOS, LVTTL | 1.8V | ±50ppm | -40°C ~ 85°C |
| KJ3270001 | 百利通有源晶振 | KJ | XO (Standard) | 32.768 kHz | LVCMOS | 1.8V | ±25ppm | -40°C ~ 85°C |
| NX3241E0100.000000 | 百利通有源晶振 | NX | XO (Standard) | 100 MHz | HCSL | 3.3V | ±50ppm | -40°C ~ 85°C |
| NX33A0010Q | 百利通有源晶振 | NX | XO (Standard) | 100 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| SQA000001 | 百利通有源晶振 | SQ | XO (Standard) | 100 MHz | HCSL | 3.3V | ±50ppm | -40°C ~ 85°C |
| NX76F6201Q | 百利通有源晶振 | NX | XO (Standard) | 156.25 MHz | CML | 3.3V | ±25ppm | -40°C ~ 85°C |
| FK1220016Z | 百利通有源晶振 | FK | XO (Standard) | 12.288 MHz | LVCMOS | 1.8V | ±50ppm | -40°C ~ 85°C |
| FK2500101 | 百利通有源晶振 | FK | XO (Standard) | - | - | - | - | - |
| FK2500022 | 百利通有源晶振 | FK | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| FK4800016 | 百利通有源晶振 | FK | XO (Standard) | 48 MHz | CMOS | 3.3V | - | -40°C ~ 85°C |
| FJ2400012 | 百利通有源晶振 | FJ | XO (Standard) | 24 MHz | CMOS | 3.3V | - | -40°C ~ 85°C |
| HX2127002Z | 百利通有源晶振 | HX | XO (Standard) | 27 MHz | LVCMOS | 3.3V | ±25ppm | -40°C ~ 105°C |
| HX2125014Z | 百利通有源晶振 | HX | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±25ppm | -40°C ~ 105°C |
| KK3270046 | 百利通有源晶振 | KK | XO (Standard) | 32.768 kHz | CMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| FK5000019 | 百利通有源晶振 | FK | XO (Standard) | 50 MHz | CMOS | 1.8V | ±50ppm | -40°C ~ 85°C |
| NX33B8801Z | 百利通有源晶振 | NX | XO (Standard) | 118.8 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| SKF620002 | 百利通有源晶振 | SK | XO (Standard) | 156.25 MHz | HCSL | 3.3V | - | -40°C ~ 85°C |
| SKF620001 | 百利通有源晶振 | SK | XO (Standard) | 156.25 MHz | HCSL | 3.3V | - | -40°C ~ 85°C |
| NX34B8801Z | 百利通有源晶振 | NX | XO (Standard) | 118.8 MHz | HCSL | 3.3V | ±25ppm | -40°C ~ 85°C |
| NX33B5201Z | 百利通有源晶振 | NX | XO (Standard) | 115.2 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| HX7011C0025.000000 | 百利通有源晶振 | HX | XO (Standard) | 25 MHz | CMOS | 3.3V | ±25ppm | -40°C ~ 105°C |
| PBF620034J | 百利通有源晶振 | PB | XO (Standard) | - | - | - | - | - |
| LDA000004 | 百利通有源晶振 | LD | XO (Standard) | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| FK2500096 | 百利通有源晶振 | FK | XO (Standard) | 25 MHz | CMOS | 2.5V | - | -40°C ~ 85°C |
| FK1330001Z | 百利通有源晶振 | FK | XO (Standard) | 13.3333 MHz | LVCMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| FKSSD1025 | 百利通有源晶振 | FK | XO (Standard) | 25 MHz | CMOS | 3.3V | ±25ppm | -10°C ~ 70°C |
| FJ2400002 | 百利通有源晶振 | FJ | XO (Standard) | 24 MHz | LVCMOS | 1.8V | ±50ppm | -40°C ~ 85°C |
| FK5000023 | 百利通有源晶振 | FK | XO (Standard) | 50 MHz | CMOS | 3.3V | - | -40°C ~ 85°C |
| FJ2500009 | 百利通有源晶振 | FJ | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| FJ2400011 | 百利通有源晶振 | FJ | XO (Standard) | 24 MHz | LVCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| FK2500094Q | 百利通有源晶振 | FK | XO (Standard) | 25 MHz | CMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| FK0800019Q | 百利通有源晶振 | FK | XO (Standard) | 8 MHz | CMOS | 5V | ±25ppm | -40°C ~ 85°C |
| FN5000121 | 百利通有源晶振 | FN | XO (Standard) | 50 MHz | LVCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
| FN1000064 | 百利通有源晶振 | FN | XO (Standard) | 10 MHz | HCMOS | 5V | ±50ppm | -20°C ~ 70°C |
| FJ5000006 | 百利通有源晶振 | FJ | XO (Standard) | 50 MHz | CMOS | 3.3V | - | -40°C ~ 85°C |
| FK5000055Q | 百利通有源晶振 | FK | XO (Standard) | 50 MHz | CMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| KK3270052 | 百利通有源晶振 | KK | XO (Standard) | 32.768 kHz | CMOS | 1.8V | ±25ppm | -20°C ~ 70°C |
| HX2127002Q | 百利通有源晶振 | HX | XO (Standard) | 27 MHz | CMOS | 3.3V | - | -40°C ~ 105°C |
| KD3270031 | 百利通有源晶振 | KD | XO (Standard) | 32.768 kHz | LVCMOS, LVTTL | 3.3V | ±50ppm | -40°C ~ 85°C |
| FKA000018Z | 百利通有源晶振 | FK | XO (Standard) | 100 MHz | LVCMOS | 1.8V | ±50ppm | -40°C ~ 85°C |
| FKA000022Q | 百利通有源晶振 | FK | XO (Standard) | 100 MHz | CMOS | 1.8V | ±25ppm | -40°C ~ 85°C |
| NX33C5013Z | 百利通有源晶振 | NX | XO (Standard) | 125 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| LD5000004 | 百利通有源晶振 | LD | XO (Standard) | 50 MHz | LVDS | 3.3V | - | -40°C ~ 85°C |
| PX5000010 | 百利通有源晶振 | PX | XO (Standard) | 50 MHz | LVDS | 3.3V | - | -40°C ~ 85°C |
| NX33G1101Z | 百利通有源晶振 | NX | XO (Standard) | 161.1328125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| NX33C5008Q | 百利通有源晶振 | NX | XO (Standard) | 125 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| SQPCIE100 | 百利通有源晶振 | SQ | XO (Standard) | 100 MHz | HCSL | 3.3V | ±50ppm | -40°C ~ 85°C |
| SNSAS2150 | 百利通有源晶振 | SN | XO (Standard) | 150 MHz | PECL | 3.3V | ±50ppm | -20°C ~ 70°C |
