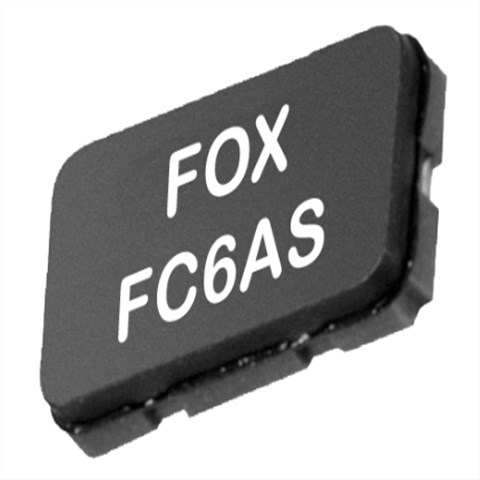

FOX環保無鉛晶振,FC6AS進口無源晶振,FC6ASCCMF18.432-T1電腦主板晶振

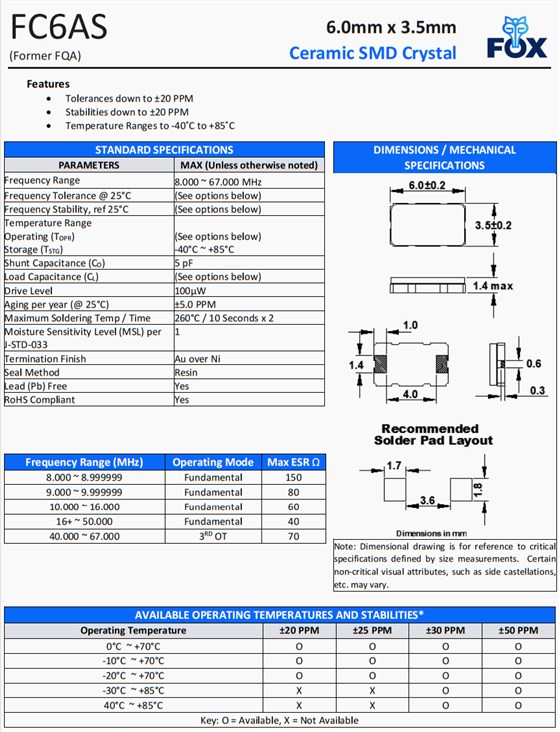

參數	MAX (Unless otherwise noted)
頻率	8.000 ~ 67.000 MHz
頻率容差	(See options below)
頻率穩定度	(See options below)
工作溫度儲存溫度	(See options below) -40°C ~ +85°C
分流電容	5 pF
負載電容	(See options below)
驅動電平	100µW
老化	±5.0 PPM
最大焊接溫度/時間	260°C / 10 Seconds x 2
濕度敏感度水平	1
終止完成	Au over Ni
密封方式	Resin
無鉛	Yes
符合ROHS	Yes

FOX環保無鉛晶振,FC6AS進口無源晶振,FC6ASCCMF18.432-T1電腦主板晶振

編碼	品牌	型號	工作溫度	頻率	頻率穩定度	頻率容差	負載電容
FC1BSCBEM27.12-T3	Fox	FC1BS	-40°C ~ 85°C	27.12 MHz	±50ppm	±30ppm	10 pF
FC1BSCCEM16.0-T3	Fox	FC1BS	-40°C ~ 85°C	16 MHz	±30ppm	±30ppm	10 pF
FC1BSHFEM32.0-T3	Fox	FC1BS	-40°C ~ 85°C	32 MHz	±15ppm	±10ppm	10 pF
FC2BSBBMM16.0-T1	Fox	FC2BS	-40°C ~ 85°C	16 MHz	±50ppm	±50ppm	20 pF
FC2BSBBMM16.0-T3	Fox	FC2BS	-40°C ~ 85°C	16 MHz	±50ppm	±50ppm	20 pF
FC3BABBKM20.0-T3	Fox	FC3BA	-40°C ~ 85°C	20 MHz	±50ppm	±50ppm	16 pF
FC3BACCGM20.0-T3	Fox	FC3BA	-40°C ~ 85°C	20 MHz	±30ppm	±30ppm	12 pF
FC3BQBBDM20.0-T3	Fox	FC3BQ	-40°C ~ 85°C	20 MHz	±50ppm	±50ppm	8 pF
FC3BQBBMM12.0-T1	Fox	FC3BQ	-40°C ~ 85°C	12 MHz	±50ppm	±50ppm	20 pF
FC3BQBBMM12.0-T3	Fox	FC3BQ	-40°C ~ 85°C	12 MHz	±50ppm	±50ppm	20 pF
FC3BQBBMM24.0-T1	Fox	FC3BQ	-40°C ~ 85°C	24 MHz	±50ppm	±50ppm	20 pF
FC3BQBBMM24.0-T3	Fox	FC3BQ	-40°C ~ 85°C	24 MHz	±50ppm	±50ppm	20 pF
FC3BQBBMM25.0-T1	Fox	FC3BQ	-40°C ~ 85°C	25 MHz	±50ppm	±50ppm	20 pF
FC3BQBBMM25.0-T3	Fox	FC3BQ	-40°C ~ 85°C	25 MHz	±50ppm	±50ppm	20 pF
FC3BQBBVM25.0-T3	Fox	FC3BQ	-40°C ~ 85°C	25 MHz	±50ppm	±50ppm	7 pF
FC3BSBBEM26.0-T3	Fox	FC3BS	-40°C ~ 85°C	26 MHz	±50ppm	±50ppm	10 pF
FC3BSBBLM25.0-T3	Fox	FC3BS	-40°C ~ 85°C	25 MHz	±50ppm	±50ppm	18 pF
FC3BSBBMM25.0-T3	Fox	FC3BS	-40°C ~ 85°C	25 MHz	±50ppm	±50ppm	20 pF
FC3BSHFEM12.0-T3	Fox	FC3BS	-40°C ~ 85°C	12 MHz	±15ppm	±10ppm	10 pF
FC3VAEEGM50.0-T3	Fox	FC3VA	-40°C ~ 85°C	50 MHz	±20ppm	±20ppm	12 pF
FC3VREEDM38.4-T1	Fox	FC3VR	-40°C ~ 85°C	38.4 MHz	±20ppm	±20ppm	8 pF
FC3VREEDM38.88-T1	Fox	FC3VR	-40°C ~ 85°C	38.88 MHz	±20ppm	±20ppm	8 pF
FC3VREEDM40.0-T1	Fox	FC3VR	-40°C ~ 85°C	40 MHz	±20ppm	±20ppm	8 pF
FC3VREEDM48.0-T1	Fox	FC3VR	-40°C ~ 85°C	48 MHz	±20ppm	±20ppm	8 pF
FC3VREEEM38.4-T1	Fox	FC3VR	-40°C ~ 85°C	38.4 MHz	±20ppm	±20ppm	10 pF
FC3VREEGM36.0-T1	Fox	FC3VR	-40°C ~ 85°C	36 MHz	±20ppm	±20ppm	12 pF
FC3VREEGM38.4-T1	Fox	FC3VR	-40°C ~ 85°C	38.4 MHz	±20ppm	±20ppm	12 pF
FC3VREEGM38.88-T1	Fox	FC3VR	-40°C ~ 85°C	38.88 MHz	±20ppm	±20ppm	12 pF
FC3VREEGM40.0-T1	Fox	FC3VR	-40°C ~ 85°C	40 MHz	±20ppm	±20ppm	12 pF
FC3VREEGM50.0-T1	Fox	FC3VR	-40°C ~ 85°C	50 MHz	±20ppm	±20ppm	12 pF
FC4SDCBGM8.0-T1	Fox	FC4SD	-40°C ~ 85°C	8 MHz	±50ppm	±30ppm	12 pF
FC4SDCBMM10.0-T1	Fox	FC4SD	-40°C ~ 85°C	10 MHz	±50ppm	±30ppm	20 pF
FC4SDCBMM12.0-T1	Fox	FC4SD	-40°C ~ 85°C	12 MHz	±50ppm	±30ppm	20 pF
FC4SDCBMM16.0-T1	Fox	FC4SD	-40°C ~ 85°C	16 MHz	±50ppm	±30ppm	20 pF
FC4SDCBMM20.0-T1	Fox	FC4SD	-40°C ~ 85°C	20 MHz	±50ppm	±30ppm	20 pF
FC4SDCBMM25.0-T1	Fox	FC4SD	-40°C ~ 85°C	25 MHz	±50ppm	±30ppm	20 pF
FC4SDCBMM3.6864-T1	Fox	FC4SD	-40°C ~ 85°C	3.6864 MHz	±50ppm	±30ppm	20 pF
FC4SDCBMM4.0-T1	Fox	FC4SD	-40°C ~ 85°C	4 MHz	±50ppm	±30ppm	20 pF
FC4SDCBMM6.0-T1	Fox	FC4SD	-40°C ~ 85°C	6 MHz	±50ppm	±30ppm	20 pF
FC4SDCBMM8.0-T1	Fox	FC4SD	-40°C ~ 85°C	8 MHz	±50ppm	±30ppm	20 pF
FC4SDHCMM25.0-T1	Fox	FC4SD	-40°C ~ 85°C	25 MHz	±30ppm	±10ppm	20 pF
FC5AQBAAM8.0-T1	Fox	FC5AQ	-40°C ~ 85°C	8 MHz	±100ppm	±50ppm
FC5AQCCMM12.0-T1	Fox	FC5AQ	-40°C ~ 85°C	12 MHz	±30ppm	±30ppm	20 pF
FC5AQECLM25.0-T1	Fox	FC5AQ	-40°C ~ 85°C	25 MHz	±30ppm	±20ppm	18 pF
FC5BAEEEM8.0-T1	Fox	FC5BA	-40°C ~ 85°C	8 MHz	±20ppm	±20ppm	10 pF
FC5BAEEMM8.0-T1	Fox	FC5BA	-40°C ~ 85°C	8 MHz	±20ppm	±20ppm	20 pF
FC5BQCBKM12.0-T1	Fox	FC5BQ	-40°C ~ 85°C	12 MHz	±50ppm	±30ppm	16 pF
FC5BQCCMM10.0-T1	Fox	FC5BQ	-40°C ~ 85°C	10 MHz	±30ppm	±30ppm	20 pF
FC5BQCCMM12.0-T1	Fox	FC5BQ	-40°C ~ 85°C	12 MHz	±30ppm	±30ppm	20 pF
FC5BQCCMM16.0-T1	Fox	FC5BQ	-40°C ~ 85°C	16 MHz	±30ppm	±30ppm	20 pF
FC5BQCCMM20.0-T1	Fox	FC5BQ	-40°C ~ 85°C	20 MHz	±30ppm	±30ppm	20 pF
FC5BQCCMM24.0-T1	Fox	FC5BQ	-40°C ~ 85°C	24 MHz	±30ppm	±30ppm	20 pF
FC5BQCCMM25.0-T1	Fox	FC5BQ	-40°C ~ 85°C	25 MHz	±30ppm	±30ppm	20 pF
FC5BQCCMM8.0-T1	Fox	FC5BQ	-40°C ~ 85°C	8 MHz	±30ppm	±30ppm	20 pF
FC5BSCBLM20.0-T1	Fox	FC5BS	-40°C ~ 85°C	20 MHz	±50ppm	±30ppm	18 pF
FC5BSCCEM19.6608-T1	Fox	FC5BS	-40°C ~ 85°C	19.6608 MHz	±30ppm	±30ppm	10 pF
FC5BSHFEM25.0-T1	Fox	FC5BS	-40°C ~ 85°C	25 MHz	±15ppm	±10ppm	10 pF
FC7ASBAMM9.216-T1	Fox	FC7AS	-40°C ~ 85°C	9.216 MHz	±100ppm	±50ppm	20 pF
FC7ASBBMM16.0-T1	Fox	FC7AS	-40°C ~ 85°C	16 MHz	±50ppm	±50ppm	20 pF
FC7ASBBMM9.216-T1	Fox	FC7AS	-40°C ~ 85°C	9.216 MHz	±50ppm	±50ppm	20 pF
FC7ASCCGM7.6-T1	Fox	FC7AS	-40°C ~ 85°C	7.6 MHz	±30ppm	±30ppm	12 pF
FC7BSBBGM25.0-T1	Fox	FC7BS	-40°C ~ 85°C	25 MHz	±50ppm	±50ppm	12 pF
FC7BSCCEM6.0-T1	Fox	FC7BS	-40°C ~ 85°C	6 MHz	±30ppm	±30ppm	10 pF
FC7BSCCMM6.0-T1	Fox	FC7BS	-40°C ~ 85°C	6 MHz	±30ppm	±30ppm	20 pF
FC7BSCCMM7.3728-T1	Fox	FC7BS	-40°C ~ 85°C	7.3728 MHz	±30ppm	±30ppm	20 pF
FC7BSCCMM8.0-T1	Fox	FC7BS	-40°C ~ 85°C	8 MHz	±30ppm	±30ppm	20 pF
FC8AQCCMM3.6864-T1	Fox	FC8AQ	-40°C ~ 85°C	3.6864 MHz	±30ppm	±30ppm	20 pF
FC8AQCCMM4.0-T1	Fox	FC8AQ	-40°C ~ 85°C	4 MHz	±30ppm	±30ppm	20 pF
FC8AQCCMM6.0-T1	Fox	FC8AQ	-40°C ~ 85°C	6 MHz	±30ppm	±30ppm	20 pF
FC9SDCBMM8.0-T1	Fox	FC9SD	-40°C ~ 85°C	8 MHz	±50ppm	±30ppm	20 pF
FK121EIWM0.032768-T5	Fox	FK121	-40°C ~ 85°C	32.768 kHz		±20ppm	9 pF
FK122EIHM0.032768-T3	Fox	FK122	-40°C ~ 85°C	32.768 kHz		±20ppm	12.5 pF
FK124EIWM0.032768-T5	Fox	FK124	-40°C ~ 85°C	32.768 kHz		±20ppm	9 pF
FK125EIVM0.032768	Fox	FK125	-40°C ~ 85°C	32.768 kHz		±20ppm	7 pF
FK135EIHM0.032768-T3	Fox	FK135	-40°C ~ 85°C	32.768 kHz		±20ppm	12.5 pF
FK13LEIBM0.032768-T3	Fox	FK13L	-40°C ~ 85°C	32.768 kHz		±20ppm	6 pF
FK145EIHM0.032768-T3	Fox	FK145	-40°C ~ 85°C	32.768 kHz		±20ppm	12.5 pF
FK161EIHM0.032768-T5	Fox	FK161	-40°C ~ 85°C	32.768 kHz		±20ppm	12.5 pF
FKFSREIBM0.032768-T3	Fox	FKFSR	-40°C ~ 85°C	32.768 kHz		±20ppm	6 pF
FKFSREIHM0.032768-T3	Fox	FKFSR	-40°C ~ 85°C	32.768 kHz		±20ppm	12.5 pF
FKFSXEIHM0.032768-T3	Fox	FKFSX	-40°C ~ 85°C	32.768 kHz		±20ppm	12.5 pF
FKT26EIBM0.032768	Fox	FKT26	-40°C ~ 85°C	32.768 kHz		±20ppm	6 pF
FKT38EIHM0.032768	Fox	FKT38	-40°C ~ 85°C	32.768 kHz		±20ppm	12.5 pF
