ABM11AIG-40.000MHZ-4-1Z-T3,ABRACO品牌晶振,2016mm寬溫晶振
頻率：40.000MHZ
尺寸：2016mm
ABM11AIG-40.000MHZ-4-1Z-T3,ABRACO品牌晶振,2016mm寬溫晶振
針對極端溫度場景開發的ABRACON品牌晶振ABM11AIG-40.000MHZ-4-1Z-T3晶振,以2016mm晶振小尺寸封裝實現寬溫環境下的可靠運行,-40℃至+85℃的工作溫度區間覆蓋工業控制,汽車電子,戶外通信設備等核心應用場景.該型號晶振內置高精度石英晶片,通過特殊鍍膜工藝提升頻率抗溫漂能力,搭配全密封金屬外殼設計,有效隔絕濕度,粉塵等環境干擾,頻率老化率低至±5ppm/年,確保設備長期運行中的時鐘信號精度,減少因晶振性能衰減導致的系統故障.
ABM11AIG-40.000MHZ-4-1Z-T3,ABRACO品牌晶振,2016mm寬溫晶振
|
原廠型號 Originalmodel： |
ABM11AIG-40.000MHZ-4-1Z-T3 |
品牌brand： |
|
|
型號名稱 Modelname： |
ABM11AIG |

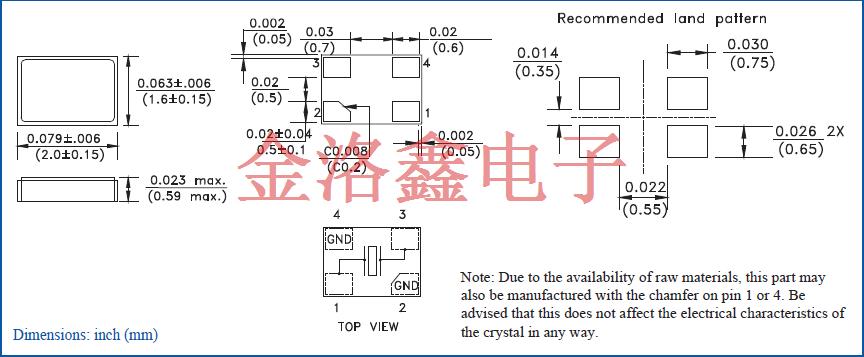

Size/Dimension尺寸 |
2016mm |
|
Type系列： |
MHz Crystal |
高度PackageHeight： |
|
|
頻率 frequency： |
|
溫度OperatingTemperature |
-40℃~+125℃ |
|
Frequency Stability頻率穩定度 |
- |
腳位Termination： |
4Pad |
|
frequencytolerance頻率容差 |
±10ppm |
封裝類型PackageType： |
4-smd |
|
Loadcapacitance 負載電容 |
4PF |
最小包裝數MPQ： |
|
ABM11AIG-40.000MHZ-4-1Z-T3,ABRACO品牌晶振,2016mm寬溫晶振
