當前位置：首頁 » 石英晶振 » 愛普生晶振 » SG5032VAN 156.250000M-KJGA|156.25MHz|5032mm|50ppm|LVDS差分輸出晶振

prevnext

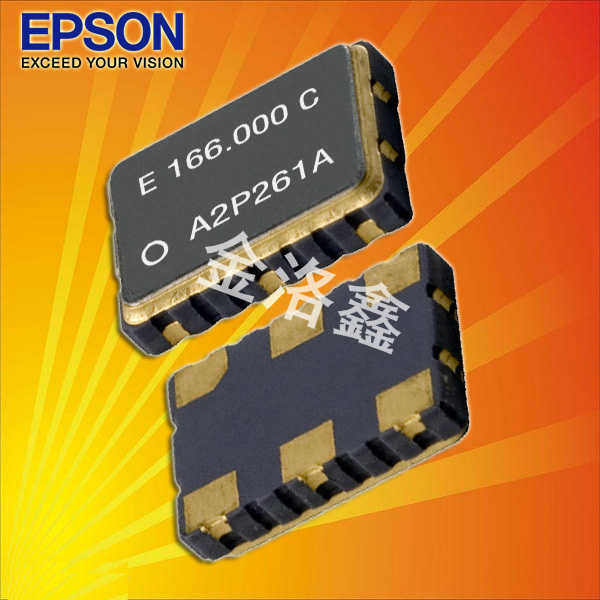

SG5032VAN 156.250000M-KJGA|156.25MHz|5032mm|50ppm|LVDS差分輸出晶振

頻率：156.25MHZ

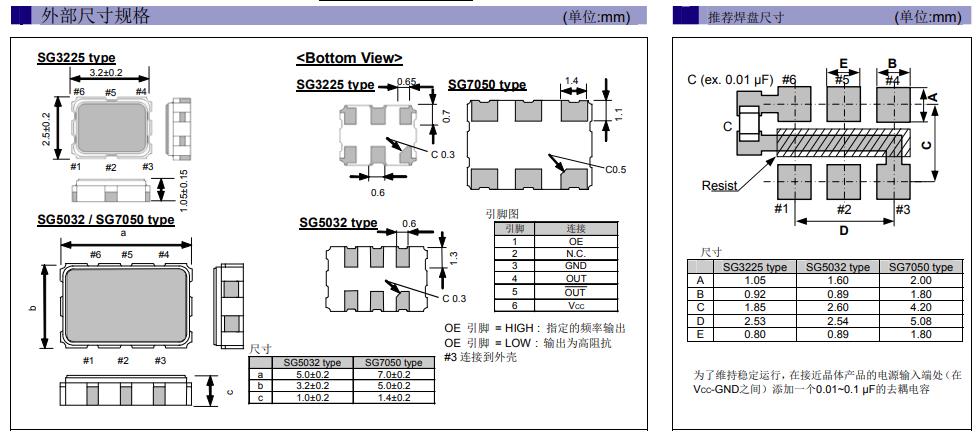

尺寸：5.0mm×3.2mm

SG5032VAN 156.250000M-KJGA|156.25MHz|5032mm|50ppm|LVDS差分輸出晶振 ,SG5032VAN 156.250000M-KJGA晶振,頻率156.25MHz,尺寸5032mm,精度50ppm,LVDS差分輸出晶振,工作溫度-40~85℃,衛星通訊晶振,智能家居晶振,車載安防晶振.

訂購熱線：0755-27837162

EPSON-1

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

SG5032VAN156.250000MKJGA|156.25MHz|5032mm|50ppm|LVDS差分輸出晶振

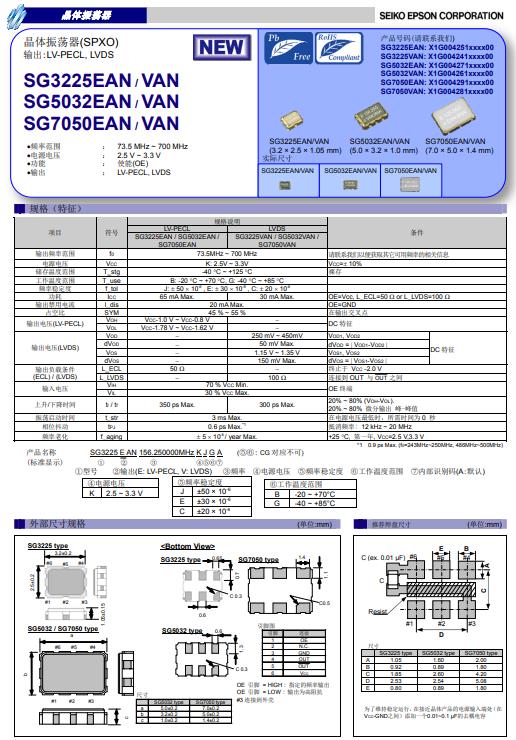

愛普生晶振規格	SG5032VAN晶振	石英晶振基本條件
標準頻率	156.25MHz	標準頻率，可提供其他頻率
儲存溫度	-40℃~+125℃	裸存
工作溫度	-40℃~+85℃	標準溫度
上升(Tr) /下降(Tf)時間	3 ns Max.
頻率穩定度	±50ppm	+25°C 對于超出標準的規格說明, 請聯系我們以便獲取相關的信息,http://www.sdws.net/
啟動時間	3 ms Max.	超出標準的規格請聯系我們.
輸出負載	15pF	超出標準說明,請聯系我們.
輸出方式	LVDS
電源電流	30mA Max.
電源電壓	2.5~3.3V
頻率老化	±5×10-6/year Max.	+25°C,第一年

SG5032VAN 156.250000M-KJGA|156.25MHz|5032mm|50ppm|LVDS差分輸出晶振

編碼	Model/型號	Frequency/頻率	LxWxH/尺寸	Output Wave/輸出方式	Supply Voltage/電源電壓	Ope Temperature/工作溫度
X1G0042610001	SG5032VAN	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610002	SG5032VAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610003	SG5032VAN	125.006250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610005	SG5032VAN	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610006	SG5032VAN	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610007	SG5032VAN	400.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610008	SG5032VAN	106.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610009	SG5032VAN	212.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610010	SG5032VAN	74.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610011	SG5032VAN	148.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610012	SG5032VAN	75.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610013	SG5032VAN	150.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610015	SG5032VAN	312.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610016	SG5032VAN	312.515625 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610017	SG5032VAN	161.132800 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610020	SG5032VAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610021	SG5032VAN	125.006250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610023	SG5032VAN	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610024	SG5032VAN	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610025	SG5032VAN	400.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610026	SG5032VAN	106.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610027	SG5032VAN	212.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610028	SG5032VAN	74.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610029	SG5032VAN	148.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610030	SG5032VAN	75.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610031	SG5032VAN	150.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610033	SG5032VAN	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610034	SG5032VAN	312.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610035	SG5032VAN	312.515625 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610036	SG5032VAN	161.132800 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610039	SG5032VAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
