FX135A-327美國FOX福克斯晶振使用到電子產品上回流焊的溫度多少

來源：金洛鑫瀏覽：- 發布日期：2022-08-02 16:54:42【大中小】

分享到：

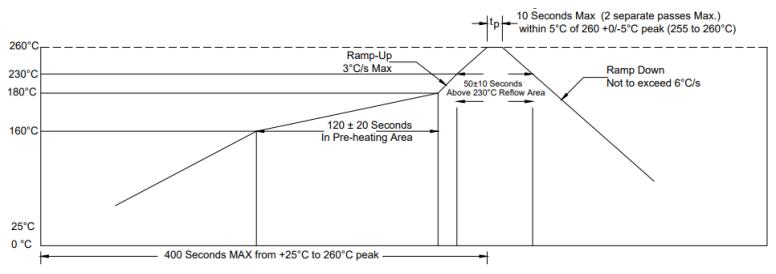

FX135A-327美國FOX福克斯晶振使用到電子產品上回流焊的溫度多少

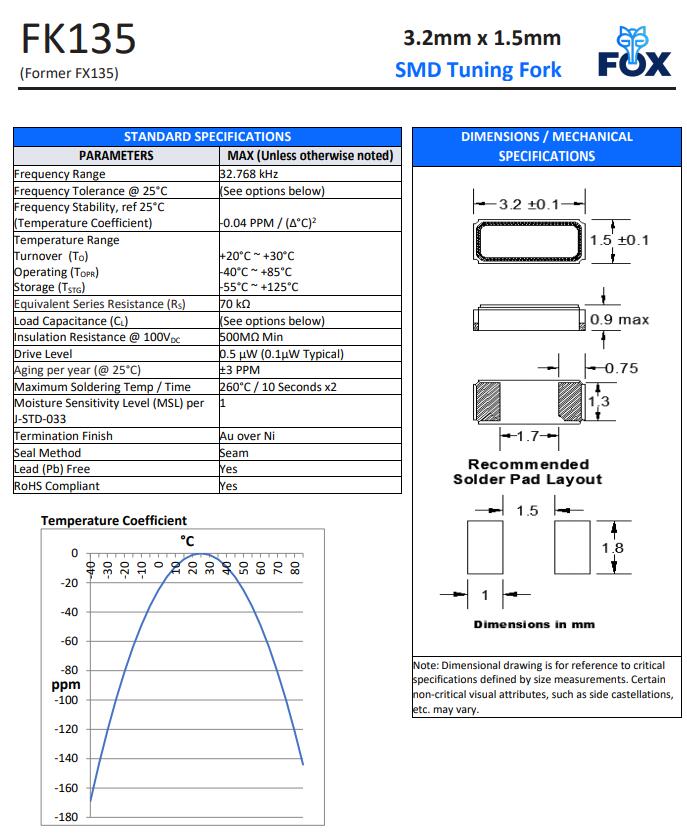

標準規格最大參數(除非另有說明) 頻率范圍32.768千赫25°C時的頻率容差(見以下選項)頻率穩定性,ref25°C(溫度系數)-0.04PPM/(°C)2溫度范圍營業額(至)運營(TOPR)存儲(TSTG)+20攝氏度至+30攝氏度-40攝氏度至+85攝氏度-55攝氏度至+125攝氏度等效串聯電阻(RS)70kω負載電容(CL)(福克斯石英晶振見以下選項)絕緣電阻@100VDC500mωMin驅動電平0.5W(典型值0.1W)每年老化(@25°C)3PPM最大焊接溫度/時間260°C/10秒x2濕度敏感度等級(MSL)j-標準-033數字一鎳上的終端涂層金密封方法接縫無鉛(Pb)是符合RoHS標準

FX135A-327石英晶體,美國FOX福克斯晶振

FX135A-327	Fox Electronics	FX135A	kHz Crystal (Tuning Fork)	32.768kHz	-	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)	0.035" (0.90mm)
FX135A-327	Fox Electronics	FX135A	kHz Crystal (Tuning Fork)	32.768kHz	-	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)	0.035" (0.90mm)
FX135A-327	Fox Electronics	FX135A	kHz Crystal (Tuning Fork)	32.768kHz	-	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)	0.035" (0.90mm)
FSRLF327	Fox Electronics	FSRLF	kHz Crystal (Tuning Fork)	32.768kHz	-	4-SOJ, 5.50mm pitch	0.343" L x 0.146" W (8.70mm x 3.70mm)	0.098" (2.50mm)
FSRLF327	Fox Electronics	FSRLF	kHz Crystal (Tuning Fork)	32.768kHz	-	4-SOJ, 5.50mm pitch	0.343" L x 0.146" W (8.70mm x 3.70mm)	0.098" (2.50mm)
FSRLF327	Fox Electronics	FSRLF	kHz Crystal (Tuning Fork)	32.768kHz	-	4-SOJ, 5.50mm pitch	0.343" L x 0.146" W (8.70mm x 3.70mm)	0.098" (2.50mm)
FSXLF327	Fox Electronics	FSXLF	kHz Crystal (Tuning Fork)	32.768kHz	-	4-SMD, Flat Lead, 3 Leads	0.276" L x 0.060" W (7.00mm x 1.50mm)	0.055" (1.40mm)
FSXLF327	Fox Electronics	FSXLF	kHz Crystal (Tuning Fork)	32.768kHz	-	4-SMD, Flat Lead, 3 Leads	0.276" L x 0.060" W (7.00mm x 1.50mm)	0.055" (1.40mm)
FSXLF327	Fox Electronics	FSXLF	kHz Crystal (Tuning Fork)	32.768kHz	-	4-SMD, Flat Lead, 3 Leads	0.276" L x 0.060" W (7.00mm x 1.50mm)	0.055" (1.40mm)
FOXSLF/080-20	Fox Electronics	HC49SLF	MHz Crystal	8MHz	±50ppm	HC49/US	0.447" L x 0.183" W (11.35mm x 4.65mm)	0.142" (3.60mm)
FQ5032B-12.000	Fox Electronics	C5BQ	MHz Crystal	12MHz	±30ppm	4-SMD, No Lead	0.197" L x 0.126" W (5.00mm x 3.20mm)	0.047" (1.20mm)
FQ5032B-12.000	Fox Electronics	C5BQ	MHz Crystal	12MHz	±30ppm	4-SMD, No Lead	0.197" L x 0.126" W (5.00mm x 3.20mm)	0.047" (1.20mm)
FQ5032B-12.000	Fox Electronics	C5BQ	MHz Crystal	12MHz	±30ppm	4-SMD, No Lead	0.197" L x 0.126" W (5.00mm x 3.20mm)	0.047" (1.20mm)
FQ5032B-25.000	Fox Electronics	C5BQ	MHz Crystal	25MHz	±30ppm	4-SMD, No Lead	0.197" L x 0.126" W (5.00mm x 3.20mm)	0.047" (1.20mm)
FQ5032B-25.000	Fox Electronics	C5BQ	MHz Crystal	25MHz	±30ppm	4-SMD, No Lead	0.197" L x 0.126" W (5.00mm x 3.20mm)	0.047" (1.20mm)
FQ5032B-25.000	Fox Electronics	C5BQ	MHz Crystal	25MHz	±30ppm	4-SMD, No Lead	0.197" L x 0.126" W (5.00mm x 3.20mm)	0.047" (1.20mm)
FSMLF327	Fox Electronics	FSMLF	kHz Crystal (Tuning Fork)	32.768kHz	-	4-SOJ, 2.29mm pitch	0.410" L x 0.160" W (10.41mm x 4.06mm)	0.140" (3.56mm)
FSMLF327	Fox Electronics	FSMLF	kHz Crystal (Tuning Fork)	32.768kHz	-	4-SOJ, 2.29mm pitch	0.410" L x 0.160" W (10.41mm x 4.06mm)	0.140" (3.56mm)
FSMLF327	Fox Electronics	FSMLF	kHz Crystal (Tuning Fork)	32.768kHz	-	4-SOJ, 2.29mm pitch	0.410" L x 0.160" W (10.41mm x 4.06mm)	0.140" (3.56mm)

晶體單元搬運注意事項

1)安裝注意事項 FX135A-327石英晶體,美國FOX福克斯晶振

如果電路板變形,例如安裝后彎曲、之間的焊接點剝落晶體諧振器和電路板可能會在陶瓷封裝中產生裂紋,導致?lián)p耗真空、內部元件的破壞等.尤其是當重新鋪設它所在的板時安裝時,可能會施加較大的應力,請考慮電路板布局和切割最小化產品壓力的方法. 當智能手機晶振產品自動安裝在板上時,如果晶體受到較大沖擊諧振器,特性可能會改變/惡化,或者產品可能壞掉了.

當自動安裝時,請考慮對晶體單元的沖擊來設置條件. 此外,請事先進行安裝測試,并確認對沒有影響晶體諧振器的特性. 當出現以下情況時,由于長時間反復劇烈的溫度變化,焊接部分可能會出現裂紋由于電路板的膨脹系數不同于水晶包裝.在這種情況下使用時,請事先進行測試并確認對石英晶體諧振器單元沒有影響. 陶瓷封裝是小而薄的產品.因此,如果/當你安裝后返工,請給考慮選擇和處理要使用的工具. FX135A-327石英晶體,美國FOX福克斯晶振
