用于安防監控系統中應用的晶振SG-210STF編碼X1G004171003400

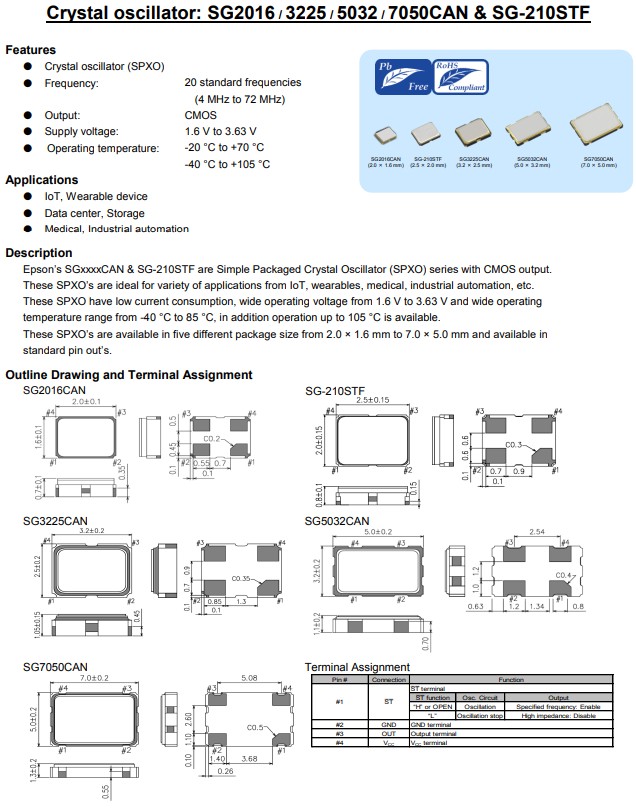

愛普生晶振SG-210STF，是帶CMOS輸出的簡單封裝晶體振蕩器(SPXO)系列，小體積晶振尺寸2.5x2.0mm晶體振蕩器，四腳貼片晶振，有源晶振，具有低電流消耗、1.6V至3.63V的寬工作電壓和寬工作溫度范圍從-40℃到85℃，此外，最高工作溫度可達105℃。這些SPXO提供從2.0x1.6mm到7.0x5.0mm的五種不同封裝尺寸，并提供標準引腳排列。SG-210STF低功耗，在物聯網、安防監控系統，手持設備，可穿戴設備、醫療、工業自動化等領域有著廣闊的市場。
用于安防監控系統中應用的晶振SG-210STF編碼X1G004171003400
             產品編碼
|
 型號
|
 頻率
|
 貼片晶振
|
 輸出波
|
 電源電壓
|
 工作溫度
|
| X1G004171000900 | SG-210STF | 4.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171001500 | SG-210STF | 8.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171001600 | SG-210STF | 10.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171001800 | SG-210STF | 12.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171001900 | SG-210STF | 12.288000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171002500 | SG-210STF | 14.745600MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171002700 | SG-210STF | 16.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171002900 | SG-210STF | 20.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171003100 | SG-210STF | 24.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171003200 | SG-210STF | 24.576000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171003300 | SG-210STF | 25.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171003400 | SG-210STF | 26.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171003500 | SG-210STF | 27.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171004000 | SG-210STF | 32.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171004500 | SG-210STF | 40.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171004600 | SG-210STF | 48.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171004700 | SG-210STF | 50.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171005900 | SG-210STF | 25.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171006100 | SG-210STF | 12.288000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -20 to 70°C |
| X1G004171006900 | SG-210STF | 8.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171012700 | SG-210STF | 32.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171015400 | SG-210STF | 16.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171015600 | SG-210STF | 24.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -20 to 70°C |
| X1G004171016300 | SG-210STF | 12.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -20 to 70°C |
| X1G004171019700 | SG-210STF | 24.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171020600 | SG-210STF | 40.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171021800 | SG-210STF | 20.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -20 to 70°C |
| X1G004171023800 | SG-210STF | 20.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171024400 | SG-210STF | 26.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171025000 | SG-210STF | 27.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171028000 | SG-210STF | 12.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171029900 | SG-210STF | 4.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171030000 | SG-210STF | 33.330000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171036500 | SG-210STF | 10.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171036600 | SG-210STF | 12.288000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171036700 | SG-210STF | 14.745600MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171036800 | SG-210STF | 24.576000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171036900 | SG-210STF | 48.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171037000 | SG-210STF | 72.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.710 to 3.630V | -20 to 70°C |
| X1G004171037100 | SG-210STF | 72.000000MHz | 2.50x2.00x0.80mm | CMOS | 2.250 to 3.630V | -40 to 105°C |
SG-210STF晶振擁有低至0.8ps的抖動，用于安防監控系統中，可獲取更高清的圖像，SG-210STF具有待機（ST）功能，大大降低了晶體振蕩器的功耗和開關損耗。在安全監控系統中的應用可以更好地降低整個系統的功耗。它具有OE/ST功能，使系統設計能夠?qū)崿F(xiàn)晶體振蕩器頻率輸出的控制，實現靈活的可控性。該系列晶體振蕩器的可選頻率范圍為4MHz～72MHz。在此頻率范圍內，可提供94種頻率產品，完全滿足用戶對石英晶體振蕩器頻率參數的要求。
