AB-24.576MHZ-B2F-T,24.576MHz,18pf,-20~+70°C,AB-24.576MHZ-B2F-T晶振,美國Abracon晶振,進口插件晶振,頻率24.576MHz,負載18pf,工作溫度-20~+70°C,平板電腦晶振,打印機晶振,儲存卡晶振,數據通信晶振.

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

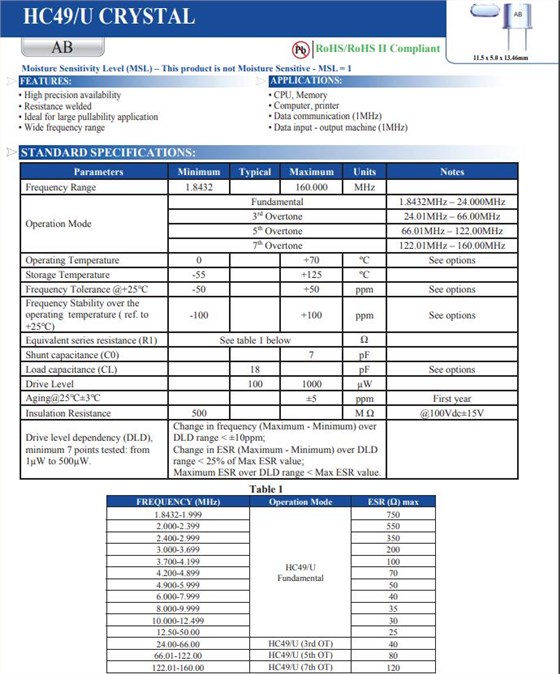

AB-24.576MHZ-B2F-T,24.576MHz,18pf,-20~+70°C參數

規格參數			MAX(除非有特殊說明)
頻率			24.576MHz
操作模式			3rd Overtone
工作溫度			-20°Cto+70°C
保存溫度			-55°Cto+125°C
頻率公差			±20PPM
工作溫度范圍內的頻率穩定性( ref. to +25°C)			±100PPM
等效串聯電阻(R1)			40Ω
并聯電容(C0)			7.0pF
負載電容 (CL)			18pF
激勵功率			1000μW Max
老化性			±5ppm
絕緣電阻			500M Ω @100Vdc±15V
驅動器級別依賴(DLD)，最小7分測試:從1µW ~ 500µW			Change in frequency (Maximum - Minimum) over DLD range < ±10ppm; Change in ESR (Maximum - Minimum) over DLD range < 25% of Max ESR value; Maximum ESR over DLD range < Max ESR value

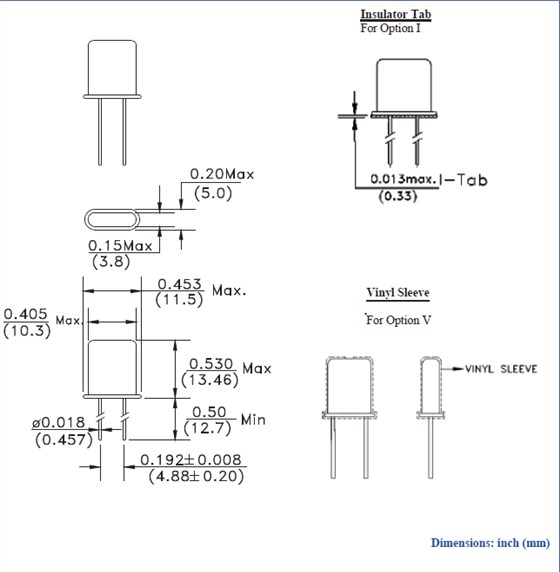

AB-24.576MHZ-B2F-T,24.576MHz,18pf,-20~+70°C尺寸圖

原廠編碼	生產廠家	型號	頻率	頻率穩定度	頻率偏差	負載電容	電阻	工作溫度
AB-8.000MHZ-B2	Abracon晶振	AB	8MHz	±100ppm	±20ppm	18pF	35 Ohm	-20°C ~ 70°C
AB-10.000MHZ-B2	Abracon晶振	AB	10MHz	±100ppm	±20ppm	18pF	30 Ohm	-20°C ~ 70°C
AB-11.0592MHZ-B2	Abracon晶振	AB	11.0592MHz	±100ppm	±20ppm	18pF	30 Ohm	-20°C ~ 70°C
AB-12.000MHZ-B2	Abracon晶振	AB	12MHz	±100ppm	±20ppm	18pF	30 Ohm	-20°C ~ 70°C
AB-12.288MHZ-B2	Abracon晶振	AB	12.288MHz	±100ppm	±20ppm	18pF	30 Ohm	-20°C ~ 70°C
AB-14.31818MHZ-B2	Abracon晶振	AB	14.31818MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-14.7456MHZ-B2	Abracon晶振	AB	14.7456MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-16.000MHZ-B2	Abracon晶振	AB	16MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-18.432MHZ-B2	Abracon晶振	AB	18.432MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-19.6608MHZ-B2	Abracon晶振	AB	19.6608MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-20.000MHZ-B2	Abracon晶振	AB	20MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-22.1184MHZ-B2	Abracon晶振	AB	22.1184MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-24.000MHZ-B2	Abracon晶振	AB	24MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-24.576MHZ-B2F	Abracon晶振	AB	24.576MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-25.000MHZ-B2F	Abracon晶振	AB	25MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-27.000MHZ-B2F	Abracon晶振	AB	27MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-32.000MHZ-B2	Abracon晶振	AB	32MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-32.768MHZ-B2	Abracon晶振	AB	32.768MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-48.000MHZ-B2	Abracon晶振	AB	48MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-50.000MHZ-B2	Abracon晶振	AB	50MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-6.000MHZ-B2	Abracon晶振	AB	6MHz	±100ppm	±20ppm	18pF	40 Ohm	-20°C ~ 70°C
AB-7.3728MHZ-B2	Abracon晶振	AB	7.3728MHz	±100ppm	±20ppm	18pF	40 Ohm	-20°C ~ 70°C
AB-8.192MHZ-B2	Abracon晶振	AB	8.192MHz	±100ppm	±20ppm	18pF	35 Ohm	-20°C ~ 70°C
AB-9.8304MHZ-B2	Abracon晶振	AB	9.8304MHz	±100ppm	±20ppm	18pF	35 Ohm	-20°C ~ 70°C
AB-10.000MHZ-B2-T	Abracon晶振	AB	10MHz	±100ppm	±20ppm	18pF	30 Ohm	-20°C ~ 70°C
AB-11.0592MHZ-B2-T	Abracon晶振	AB	11.0592MHz	±100ppm	±20ppm	18pF	30 Ohm	-20°C ~ 70°C
AB-12.000MHZ-B2-T	Abracon晶振	AB	12MHz	±100ppm	±20ppm	18pF	30 Ohm	-20°C ~ 70°C
AB-12.288MHZ-B2-T	Abracon晶振	AB	12.288MHz	±100ppm	±20ppm	18pF	30 Ohm	-20°C ~ 70°C
AB-14.31818MHZ-B2-T	Abracon晶振	AB	14.31818MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-14.7456MHZ-B2-T	Abracon晶振	AB	14.7456MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-16.000MHZ-B2-T	Abracon晶振	AB	16MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-18.432MHZ-B2-T	Abracon晶振	AB	18.432MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-19.6608MHZ-B2-T	Abracon晶振	AB	19.6608MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-20.000MHZ-B2-T	Abracon晶振	AB	20MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-22.1184MHZ-B2-T	Abracon晶振	AB	22.1184MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-24.000MHZ-B2-T	Abracon晶振	AB	24MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-24.576MHZ-B2F-T	Abracon晶振	AB	24.576MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-25.000MHZ-B2F-T	Abracon晶振	AB	25MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-27.000MHZ-B2F-T	Abracon晶振	AB	27MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-32.000MHZ-B2-T	Abracon晶振	AB	32MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-32.768MHZ-B2-T	Abracon晶振	AB	32.768MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-48.000MHZ-B2-T	Abracon晶振	AB	48MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-50.000MHZ-B2-T	Abracon晶振	AB	50MHz	±100ppm	±20ppm	18pF	25 Ohm	-20°C ~ 70°C
AB-6.000MHZ-B2-T	Abracon晶振	AB	6MHz	±100ppm	±20ppm	18pF	40 Ohm	-20°C ~ 70°C
AB-7.3728MHZ-B2-T	Abracon晶振	AB	7.3728MHz	±100ppm	±20ppm	18pF	40 Ohm	-20°C ~ 70°C
AB-8.000MHZ-B2-T	Abracon晶振	AB	8MHz	±100ppm	±20ppm	18pF	35 Ohm	-20°C ~ 70°C
AB-8.192MHZ-B2-T	Abracon晶振	AB	8.192MHz	±100ppm	±20ppm	18pF	35 Ohm	-20°C ~ 70°C
AB-9.8304MHZ-B2-T	Abracon晶振	AB	9.8304MHz	±100ppm	±20ppm	18pF	35 Ohm	-20°C ~ 70°C
AB-3.579545MHZ-B2	Abracon晶振	AB	3.579545MHz	±100ppm	±20ppm	18pF	200 Ohm	-20°C ~ 70°C
AB-3.6864MHZ-B2	Abracon晶振	AB	3.6864MHz	±100ppm	±20ppm	18pF	200 Ohm	-20°C ~ 70°C
AB-4.000MHZ-B2	Abracon晶振	AB	4MHz	±100ppm	±20ppm	18pF	100 Ohm	-20°C ~ 70°C
AB-4.9152MHZ-B2	Abracon晶振	AB	4.9152MHz	±100ppm	±20ppm	18pF	50 Ohm	-20°C ~ 70°C
AB-5.000MHZ-B2	Abracon晶振	AB	5MHz	±100ppm	±20ppm	18pF	50 Ohm	-20°C ~ 70°C
AB-3.579545MHZ-B2-T	Abracon晶振	AB	3.579545MHz	±100ppm	±20ppm	18pF	200 Ohm	-20°C ~ 70°C
AB-3.6864MHZ-B2-T	Abracon晶振	AB	3.6864MHz	±100ppm	±20ppm	18pF	200 Ohm	-20°C ~ 70°C
AB-4.000MHZ-B2-T	Abracon晶振	AB	4MHz	±100ppm	±20ppm	18pF	100 Ohm	-20°C ~ 70°C
AB-4.9152MHZ-B2-T	Abracon晶振	AB	4.9152MHz	±100ppm	±20ppm	18pF	50 Ohm	-20°C ~ 70°C
AB-5.000MHZ-B2-T	Abracon晶振	AB	5MHz	±100ppm	±20ppm	18pF	50 Ohm	-20°C ~ 70°C
AB-2.000MHZ-B2	Abracon晶振	AB	2MHz	±100ppm	±20ppm	18pF	550 Ohm	-20°C ~ 70°C
AB-1.8432MHZ-B2	Abracon晶振	AB	1.8432MHz	±100ppm	±20ppm	18pF	750 Ohm	-20°C ~ 70°C
AB-1.8432MHZ-B2-T	Abracon晶振	AB	1.8432MHz	±100ppm	±20ppm	18pF	750 Ohm	-20°C ~ 70°C
AB-2.000MHZ-B2-T	Abracon晶振	AB	2MHz	±100ppm	±20ppm	18pF	550 Ohm	-20°C ~ 70°C
