由于晶體沒有足夠的輸出波形幅度系統不能正常工作時的正確做法ABM10W-40.0000MHZ-4-K1Z-T3

來源：金洛鑫瀏覽：- 發布日期：2023-08-22 16:58:50【大中小】

分享到：

由于石英晶體沒有足夠的輸出波形幅度,系統不能正常工作,請使用示波器或頻率計數器測量晶體兩端的信號，如果頻率不在規格范圍內，并且它的輸出波形幅度不夠(例如超過+/-200ppm)，請按照以下步驟1-1至步驟1-4進行測量。

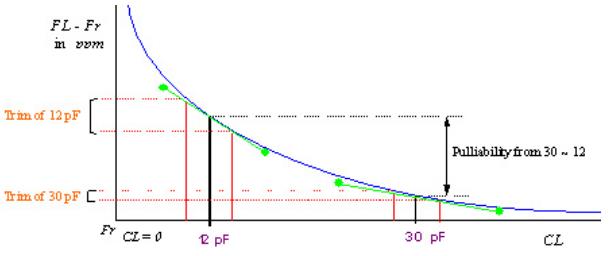

1-1.電容與頻率的關系公式如下: “FL = FR * (1 + C1 / 2 * (C0 + CL))，其中該曲線表示電容變化的變化對頻率變化的變化(頻率牽引能力):

如果頻率計數器測量的頻率高于目標頻率，我們應該增加電容(CL，或Cd和Cg)的值，使頻率降低到目標頻率，反之亦然。

請檢查我們調整頻率后波形幅度是否有所改善。如果它得到了改進，表明電路的原始設計沒有調諧到晶體的最佳諧振點。調整好諧振點后晶體應能正常工作。

1-2.如果在頻率非常接近目標頻率的情況下波形幅度沒有改善，我們可以使用以下三種方法進行改善:

方法一:降低外部電容(Cd和Cg)值，采用負載電容(CL)較低的晶體。

方法二:采用電阻(Rr)較小的晶體。

方法三:采用Cd和Cg不等值的設計。

我們可以增加Cd (Xout)的負載電容，降低Cg (Xin)的負載電容，以提高Xin輸出的波形幅度，用于其后端電路。

我們建議您使用以上方法，以節省成本和確保安全。

1-3.請使用頻率計數器來測量晶體，以確保調整后的頻率在波形幅度改善后仍符合原始規格。如果頻率不符合規格，請根據您的目標頻率采用具有合適CL值的晶體。

1-4. 如果頻率遠高于目標頻率，請采用CL較低的晶體，反之亦然。

Please measure the signals from the two terminals of the crystal using Oscilloscope or Frequency Counter, if the Frequency is not within the specification and ita€™s output waveform amplitude is not adequate (for example, over +/-200ppm), please follow step 1-2 to step 1-4.
1-1.
The formula for Capacitances versus Frequency is as following:

?€€FL = FR * (1 + C1 / 2 * (C0 + CL) ) where

The curve represents the variation of capacitance changes versus variation of frequency changes (Frequency pullability):

If the frequency measured by Frequency Counter is higher than the targeted frequency, we should increase the value of capacitances (CL, or Cd and Cg) to lower the frequency to the targeted frequency, vice versa.
Please check whether the waveform amplitude is improved or not after we adjust the frequency. If ita€™s improved, that indicates the case that the original design of the circuit is not tuned to the best resonant point for the crystal. The crystal should function normally after the resonant point is adjusted.
1-2.
If the waveform amplitude is not improved even the frequency is pretty much close to the targeted frequency, we can improve it using three methods below:

Method 1:	Lower the value of external capacitance (Cd and Cg), and adopt crystal with lower load capacitance (CL).
Method 2:	Adopt the crystal with lower resistance (Rr).
Method 3:	Use the design of unequal values of Cd and Cg.

We can increase the load capacitance of Cd (Xout) and decrease the load capacitance of Cg (Xin) to raise the output of waveform amplitude from Xin which will be used in its back-end Circuit.
We suggest that you use above methods to save costs and assure safety.
1.3.
Please use the Frequency Counter to measuring the crystal to ensure that the adjusted frequency still meets original specification after the waveform amplitude has been improved. If the frequency doesna€™t meet the specification, please adopt a crystal with suitable CL value according to your targeted frequency.
1-4.
Please adopt a crystal with lower CL if the frequency is much higher than the targeted frequency, vice versa.
